30
Unpacking, Preparations, Commissioning
Mounting the Turntable
Carefully remove the device and all accessories
from the packaging.
Caution: The
external power supply unit is
placed in a separate compartment inside the
polystyrene packaging.
Place the turntable in the intended location.
The base should be as stable , straight and
even as possible.

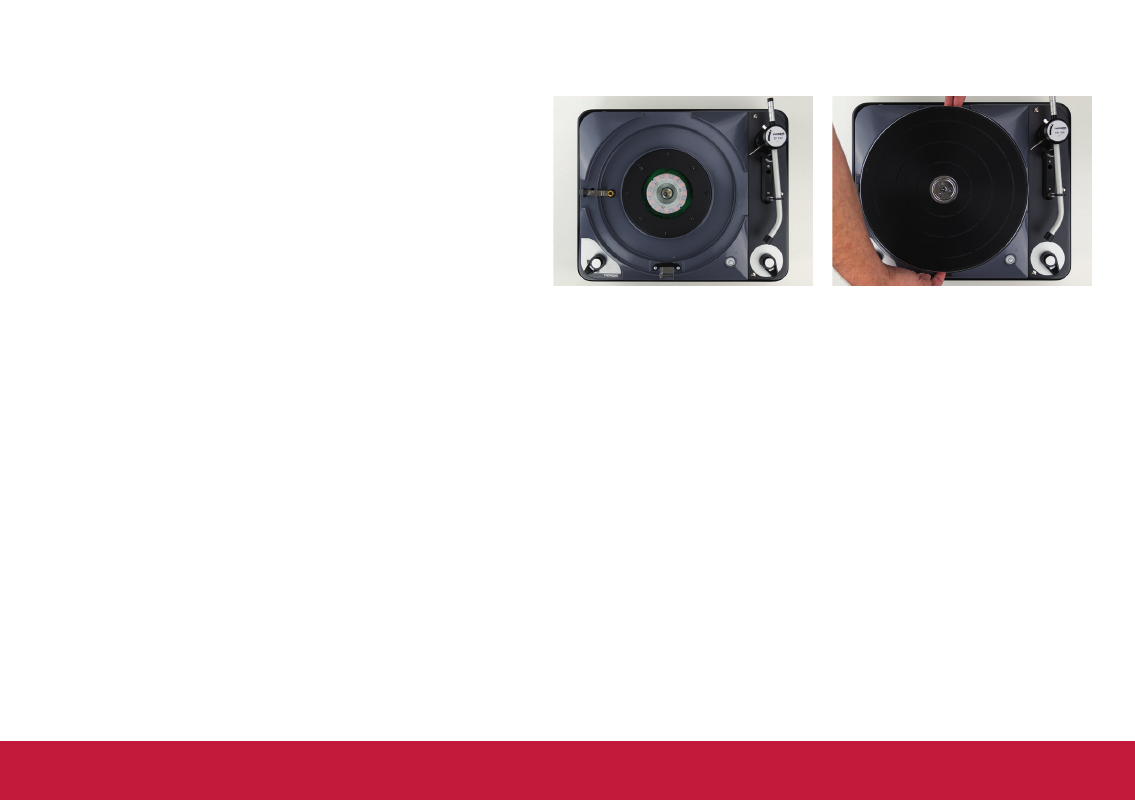

Remove the platter from its separate pack-
aging and hold it by its edge in two opposite
places. Look from above through the hole in
the middle of the platter and carefully place it
straight on the motor shaft without tilting it.
Lower the platter slowly and carefully. The
chassis has two cut-outs, one in the front for
the strobe window and one on the opposite
side in the back. Make sure that your fingers
are in these recesses when lowering the plat-
ter. (Fig. 2)
The drive is now completely installed.
UNPACKING, PREPARATIONS, COMMISSIONING
Fig. 1 Fig. 2
