Thank you for purchasing this QTX Sound KA-series karaoke amplifier.
This product is intended to give long term, reliable service in normal usage.
Please read these instructions before use to avoid incorrect operation and to help outline the functions and controls.

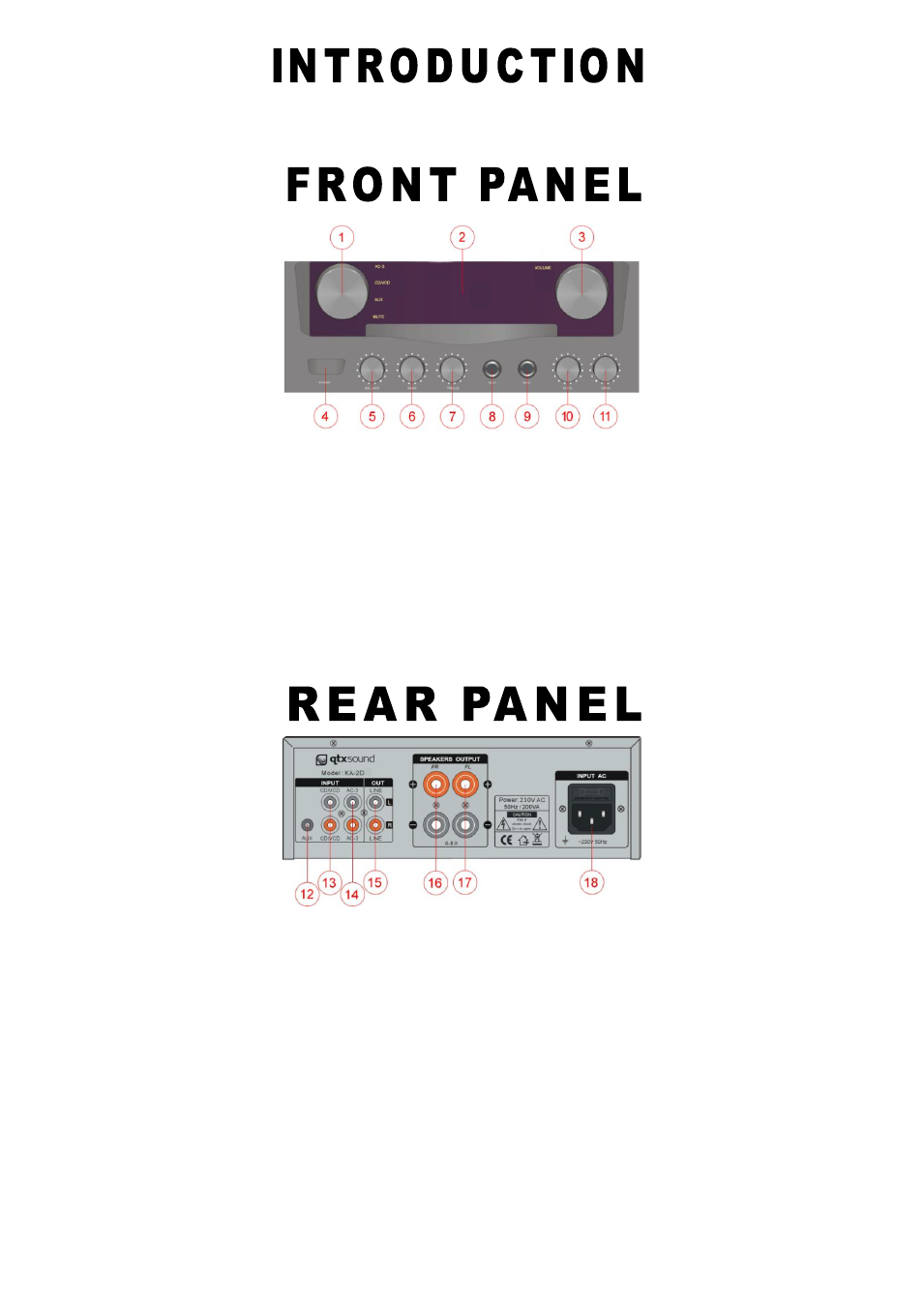

(1) INPUT SELECTOR – Rotate to select AC-3, CD/VCD, AUX inputs or mute
(2) ILLUMINATED DISPLAY
– Sound-reactive display showing input source and level
(3) VOLUME – Rotate clockwise to increase volume level
(4) POWER SWITCH - Switches mains power on/off
(5) BALANCE
– Rotate to control LEFT to RIGHT output level ratio
(6) BASS
– Adjusts low frequency content
(7) TREBLE – Adjusts high frequency content
(8) MIC1 – 6.3mm jack input for microphone 1
(9) MIC2
– 6.3mm jack input for microphone 2
(10) M.VOL – Adjusts combined microphone level
(11) ECHO – Varies the amount of echo effect applied to the microphone inputs
(12) AUX INPUT – 3.5mm TRS jack input for computer, mp3 player or any stereo line source
(13) CD/VCD INPUT – L+R RCA input for CD, VCD or any stereo line source
(14)
AC-3 INPUT
–
L+R RCA input for AC-3 audio or any stereo line source
(15) LINE OUT – L+R RCA line output
(16) FR – Speaker output binding posts for “front right” speaker (4Ω min.)
(17) FL – Speaker output binding posts for “front left” speaker (4Ω min.)
(18) INPUT AC – IEC mains inlet with fuse holder (230Vac 50Hz)
