Field of application:
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!

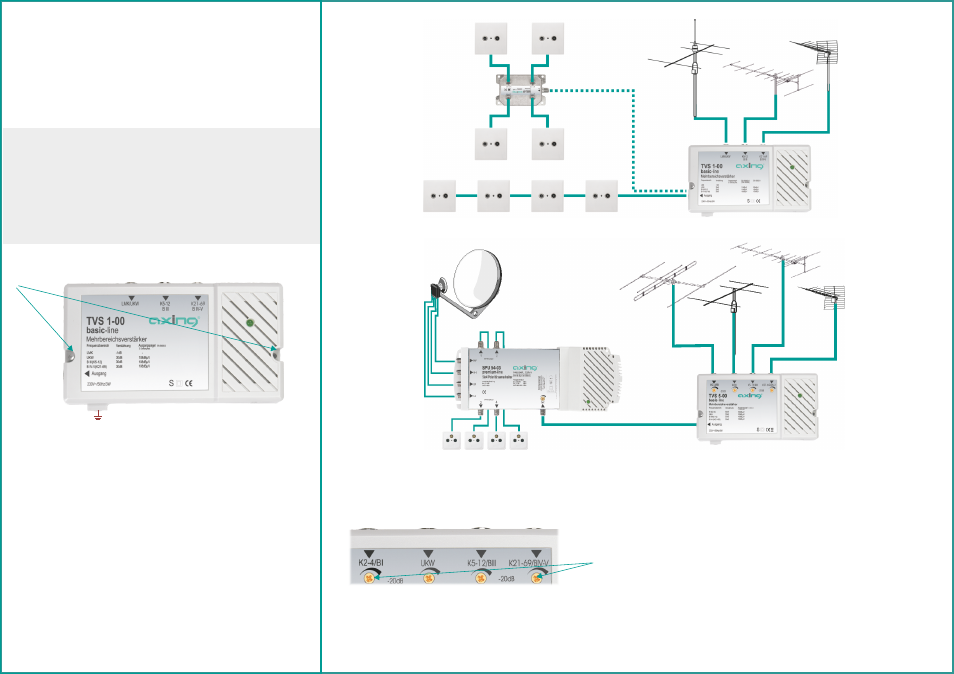

The application examples show a star-distribution (1) i.e. a tree-distribution
(2) as well as the feeding of terrestrial signal into Multiswitches (3).
Level Adjustment:
The input levels of the amplifier TVS 5-00 for FM, BI, BIII and BIV-V can be
individually adjusted with the four attenuators (6).
RF Installation:
4 Connect to the amplifier inputs the respective terrestrial antenna. Note:
A correct function can only be guaranteed, once the correct antenny-
type is connected to it.
input LMK/UKW (TVS 1-00)
LMS/FM antenna
input UKW (TVS 5-00) FM antenna
input B I (TVS 3-00 5-00) VHF I antenna
input B III (TVS 1-00 and TVS 5-00) VHF III antenna
input B IV-V (TVS 1-00 and TVS 5-00) UHF antenna
4 Connect the output of the amplifier with the antenna wall outlets or the
tabs, which are used.
4 Use a highly shielded coaxial cable with IEC connectors. Suited cables
and plugs can be found in the current AXING catalogue or at
www.axing.com.
6
4
5
5
1
2
3
Grounding and Mounting:
To avoid dangerous power surges (e.g. risk of fire and electrocution) all
devices must be grounded according to EN 60728-11.
4
Use the screw terminal at the device (4).
4 Use the mounting screws included in the delivery and the mounting
holes of the devices (5).
