Field of application:
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!

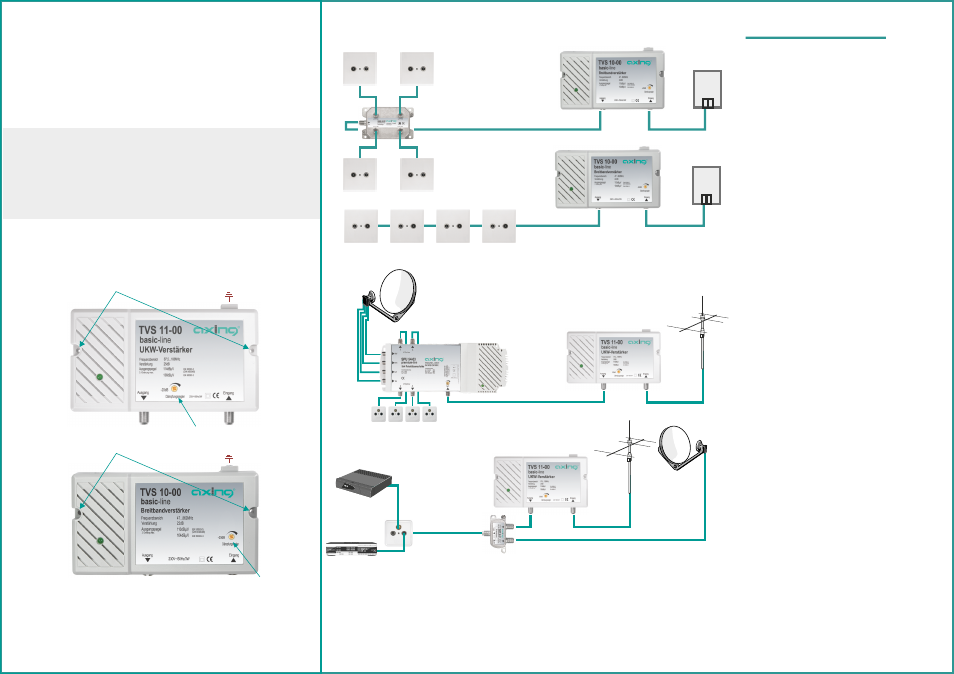

The illustrations show application examples of the distribution in star (1) or
tree structure (2) rspt. examples to feed-in FM signals into a multiswitch (3)
or to combine FM- and SAT signals with our SAT combiner (4).
Grounding and Mounting:
To avoid dangerous power surges (e.g. risk of fire and electrocution) all
devices must be grounded. Use the screw terminal at the device (5).
Use the mounting screws included in the delivery and the mounting holes of
the devices (6).
7
5
5
6
7
6
HÜP
HÜP
Coax
1
3
2
4
Level Adjustment:
The input level may be adjusted with the attenuator (7).
RF Installation:
4 Connect the input of the TVS 10-00 to the
video interconnection point. Connect the
output of the amplifier to the antenna
sockets or the taps/splitters used.
4 Connect the input of the TVS 11-00 to your
FM antenna. Connect the output of the
amplifier with one of the after mentioned
devices or components such as couplers,
multiswitches, antenna wall outlets or taps.
4 Use highly shielded coaxial cables with F/IEC
connectors. Suited cables and plugs can be
found in the current AXING catalogue or at
www.axing.com.
