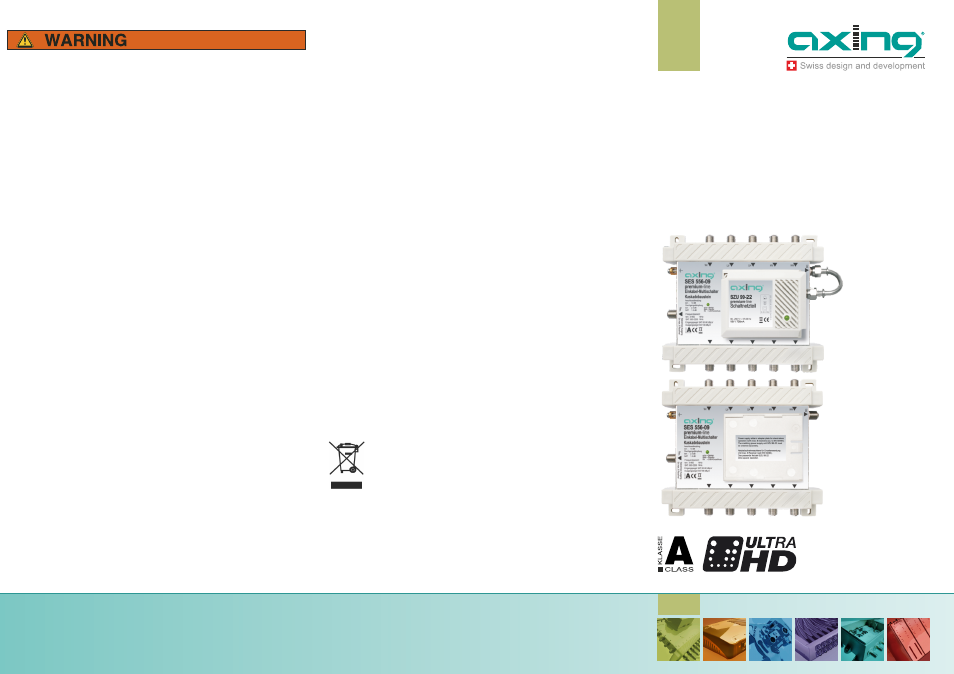

SES 556-09 | SES 556-19
Unicable multiswitch
Operation Instructions
State of the art 2015-03-20 - Reserving change in design and type -
We cannot be held liable for printing errors Manufacturer
AXING AG
Gewerbehaus Moskau
CH-8262 Ramsen EWR contact adress
Bechler GmbH
Am Rebberg 44
D-78239 Rielasingen
Safety advice:
4 Installation and repairs to the equipment may only be carried out by
technicians observing the current VDE guidelines. No liability will be
assumed in the case of faulty installation and commissioning.
4 Before opening the equipment pull out the power plug or remove the
power supply, otherwise there is danger of electrocution. This is also
valid for cleaning the equipment or working on the connections.
4 Only use the mains cable connected to the device. Never replace any
parts or make any modifications on the mains cable. Otherwise there is a
risk of mortal injury for which we cannot be held liable.
4 Providing that a serviceable fuse exists, the power plug must be pulled
out before changing the fuse. Defective fuses may only be replaced with
standard compliant fuses that have the same nominal value.
4 The equipment may only be operated in dry rooms. In humid rooms or
outdoors there is danger of short-circuit (caution: risk of fire) or
electrocution.
4 To prevent damage to your equipment and to avoid possible peripheral
damages, the devices foreseen for wall mounting may only be installed
on a flat surface.
4 Choose the location of installation or mounting so that the power plug
can be reached and pulled out of the socket easily in case of danger.
Choose the location of installation or mounting such that children may
not play unsupervised near the equipment and its connections. The
location of installation or mounting must allow a safe installation of all
cables connected. The mains cable as well as feeder lines may not be
damaged or clamped by objects of any kind.
4 Choose the location of installation or mounting so that under no
circumstances liquids or objects can get into the equipment (e.g.
condensation, water coming from leaking roofs or flowing water, etc.).
4 Avoid exposure of the equipment to direct sunlight and to other heat
sources (e. g. radiators. other electrical devices, chimney, etc.). Devices
that are equipped with heat sinks or ventilation slots must under no
circum-stances be covered or blocked. Also ensure for a generous air
circulation around the equipment. In this way you avoid possible
damage to the equipment as well as a risk of fire caused by overheating.
Absolutely avoid that cables come near any source of heat (e.g.
radioators, other electrical devices, chimney, etc.).
Technical specifications:
SES 556-09/-19
Inputs
SAT
4
terrestrial 1
Subscriber ports 1
Trunk outputs 5
Frequenzy range
terrestrial
5...862 MHz
SAT 950...2200 MHz
Transmission frequencies 1280 MHz
1382 MHz
1484 MHz
1586 MHz
1688 MHz
1790 MHz
Tap loss terrestrial 13 dB
Gain
Trunk terrestrial
dB -2,5
Trunk SAT -1,5 dB
Output level
Subscriber ports 88 dBµV*
LNB supply 14 V/18 V/ 22 kHz
Current consumption 300 mA
*For an input level of 60...90 dBµV
WEEE Nr.
DE14023300
Your device is marked with the WEEE symbol (Waste Electronics
and Electrical Equipment). This means that the electrical and
electronic components must not be disposed of as residual waste.
Used electrical and electronic components must be disposed of
separately.
