Cybex 8820 Bravo Bench - Handbuch (Seite 18)

Product Number 8820 Owner’s Manual
Page 12
ITEM QTY PART NO. DESCRIPTION
1 2 12060-362 GRIP, 2.94 LG X 2.00 OD X 11 GA W.
2 1 12090-322 FOOT PAD
3 1 3900-433 DECAL, CYBEX BLACK
3 1 3900-446 DECAL, CYBEX SILVER
4 1 51198 WARRANTY BOOK (NOT SHOWN)
5 1 8820-200 MAIN FRAME
6 2 HC700432 BHSCS .375-16 X 2.75
7 2 JS347400 LOCKWASHER, INT TOOTH .375
8 4 PP130003 INSERT, DOMED PLASTIC
9 1 4800-188 SEAT PAD
10 1 11040-790 DECAL MADE IN USA
8
1
5
8
1
8
6
7 6
7
8
2
3
SEE SERIAL NO.
DECAL DETAIL
SEE CYBEX
DECAL DETAIL
9
10

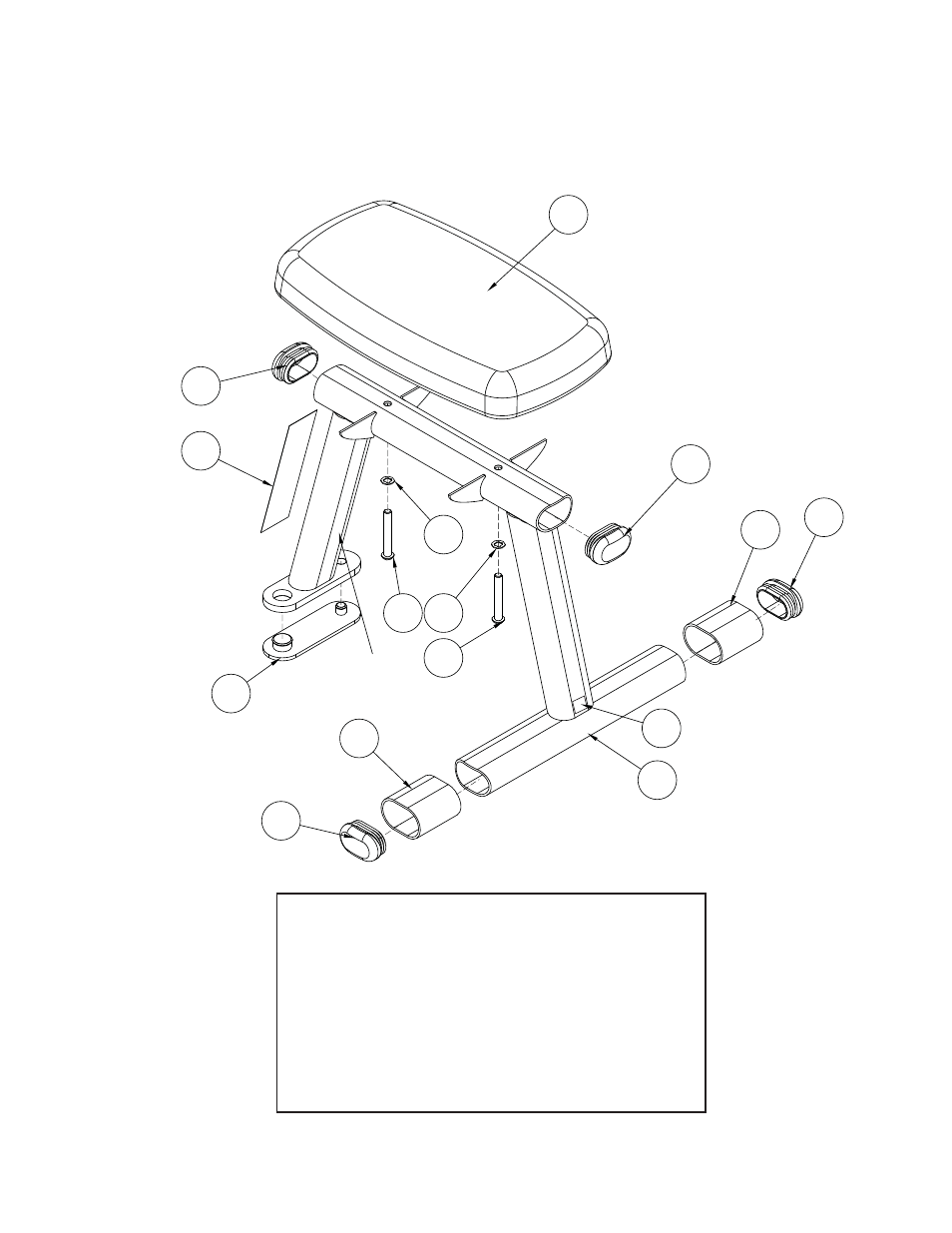

8820 MAIN ASSEMBLY DETAIL
