Installation recommendation
Choice of loca-
tion IMPORTANT! Select the site or the installation location so that the Fronius Power Package
is not exposed to direct sunlight.
Installation rec-
ommendation Mounting on a pillar
When mounting the Fronius Power Package on a pillar, Fronius recommends using pro-
files as crossmembers, a cable tray and suitable accessories for fitting to the pillar.

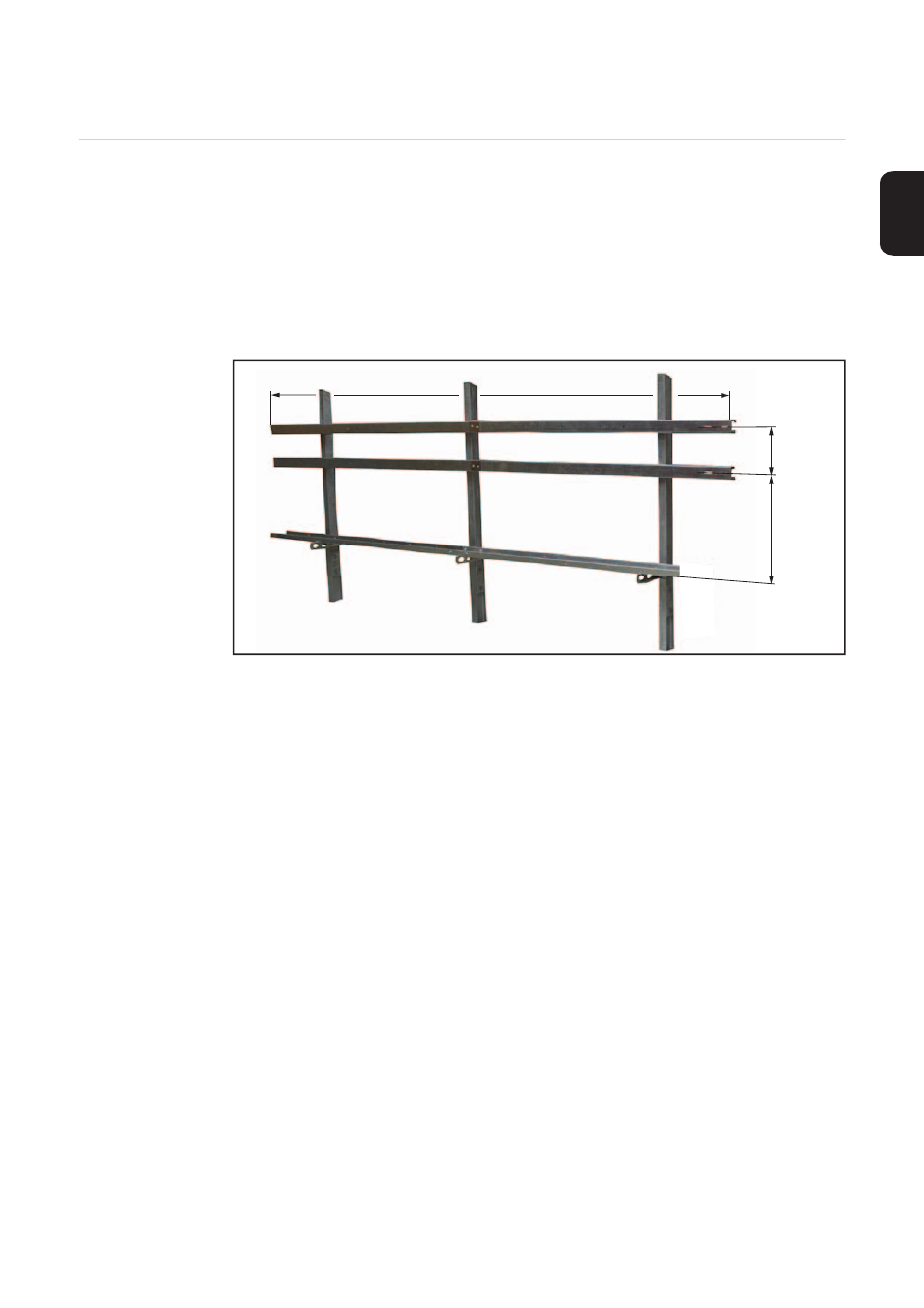

e.g.: Mounting on a pillar using two crossmembers and one cable tray for a Fronius Power Package with six in-
verters, AC cable outlet at the AC Combiner right
(1) Profiles as crossmembers
(2) Cable tray
Minimum internal width: 145 mm
(3) Boom for cable tray
IMPORTANT! The port for the AC OUT cable must be on the same side as the AC cable
outlet on the AC Combiner .
The installer is personally responsible for selecting the correct profiles, cable trays and pil-
lar-mounting accessories.
Wall mounting
For wall mounting, note the spacing information provided in the installation instructions.
The installer is personally responsible for selecting the correct fixings that are appropriate
for the installation surface.
(1)
(1)
(2)
(3)
270 mm
630 mm
(3)
(3)
4300 mm
