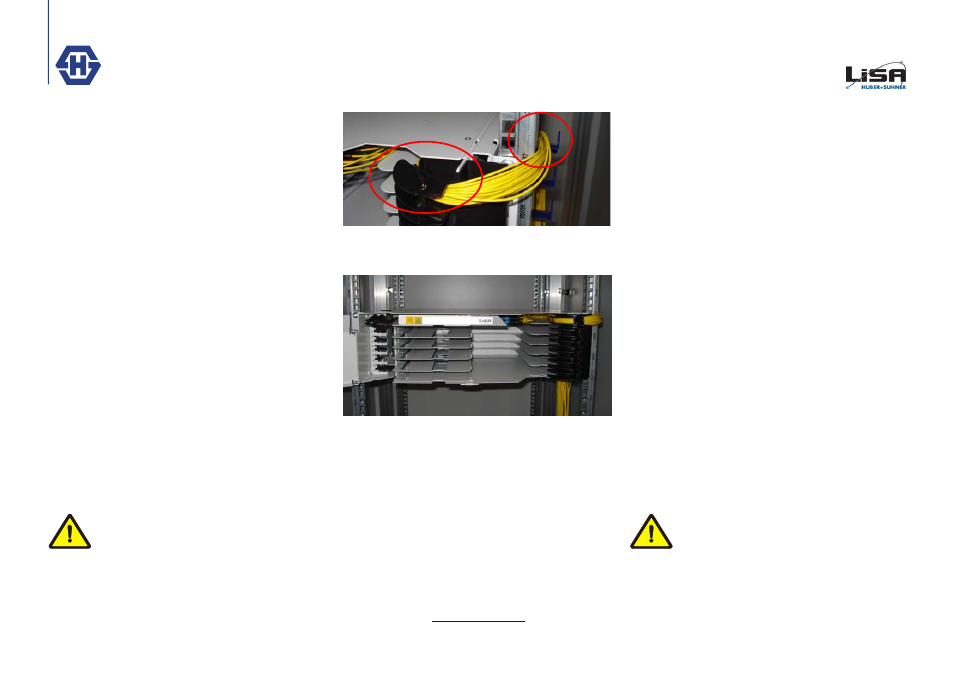

Slide back the FiberTray into the unit keeping enough
length for the service loop and fix all cable with the rub-
ber band on the mandrel (A)
Guide cables around the 19“ vert towards the blue
mandrel (B).
Schiebe die FiberTray zurück in den Baugruppen-
träger, achte dabei auf ausreichende Länge des
Service Loops und fixiere die Rangierkabel mit dem
Gummiband an den Mandrels (A).
Führe die Kabel um die 19” Spur über die blauen Um-
lenker (B)
For further PatchCords, please proceed analog above
given description.
Für weitere Rangierkabel, verfahre analog obiger
Beschreibung.
A
B
Attention
H+S disclaims any liability resulting from incorrect in-
stallation and use, including any damages resulting
from the use of tools and accessories other than the
one recommended herein.
Achtung
H+S lehnt jegliche Haftung für fehlerhafte Montage
und Nutzung ab, einschliesslich für Schäden, die
durch die Benutzung von anderen als die hierin emp-
fohlenen Werkzeuge verursacht werden.
