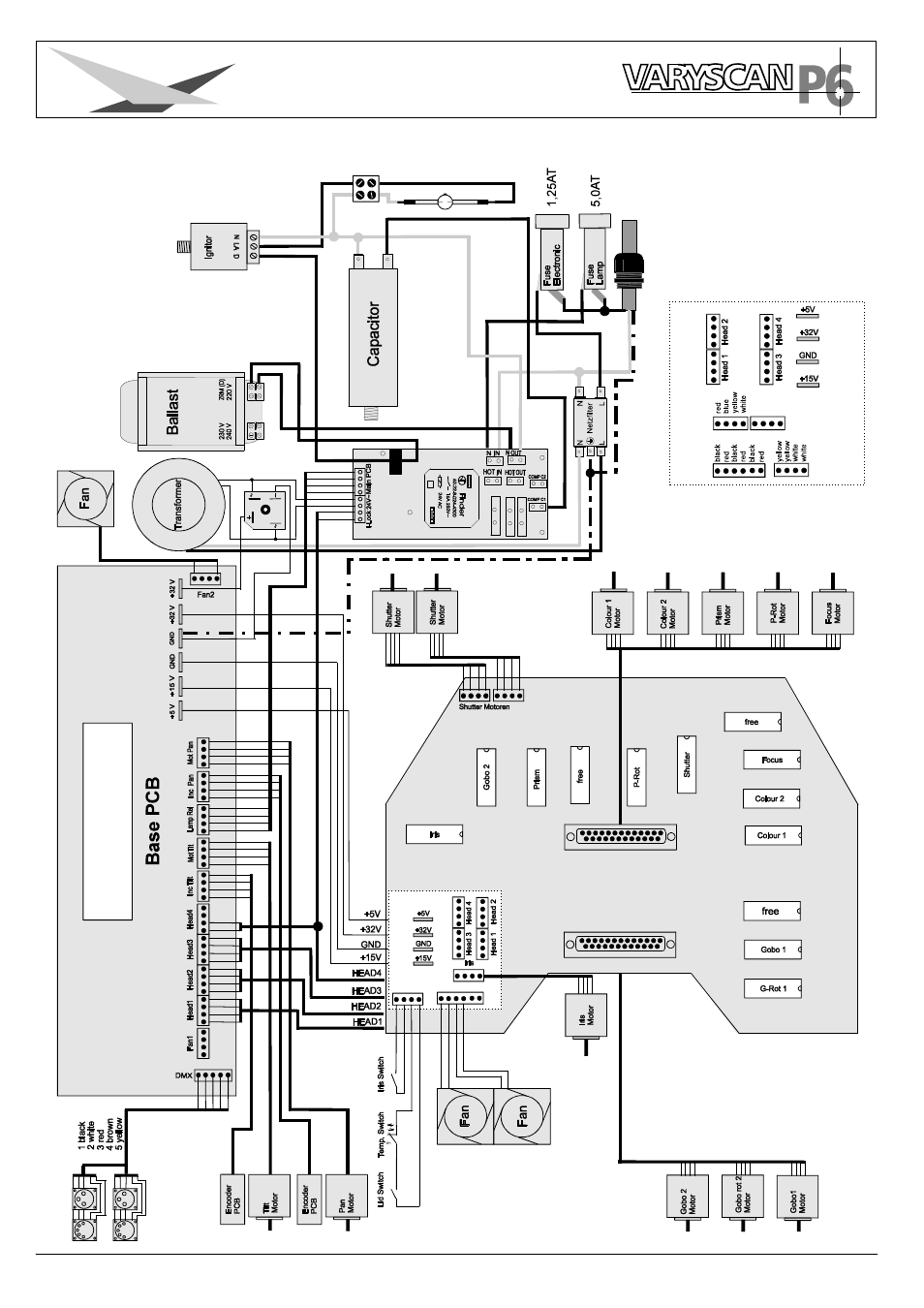

5.7 Wiring diagram
grey
green
yellow
brown
blue
green
yellow
brown grey
green
blue
brown
white
green
yellow
brown red fine
red thick
black
yellow
Head PCB
Backside view of pcb head
these connectors are
located on the backside
