JB-Lighting Varyscan 4 1200 HMI - Handbuch (Seite 33)

33
Varyscan
®
4 1200 HMI
11 81
12 89

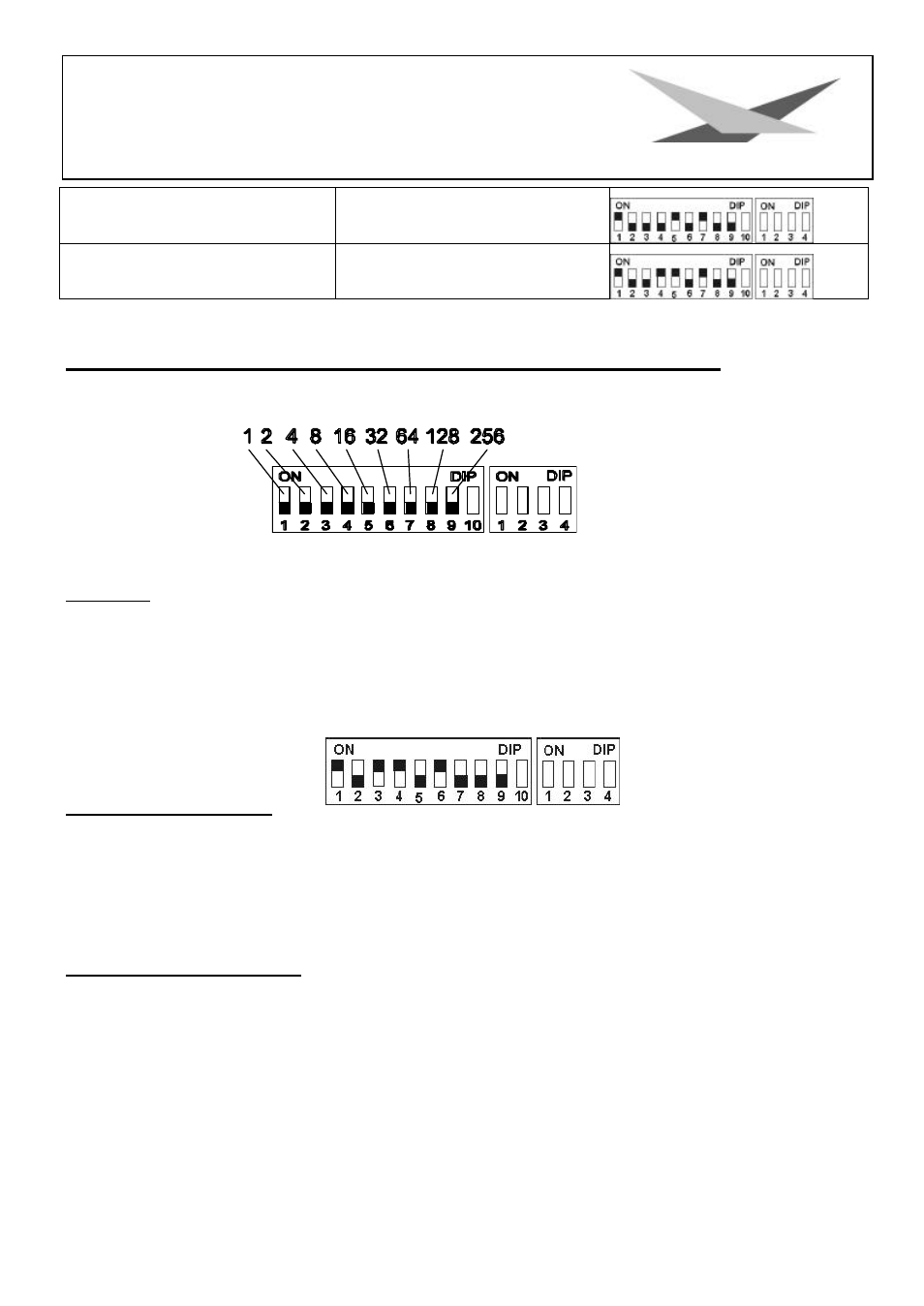

Definition of DIP-switch positions for defined DMX-addresses
Every single DIP-switch responds to the above designated figures. If
you would like to adjust a defined DMX-address, you have to add up the single figures to get it.
For example: DMX-address "45"
32 + 8 + 4 + 1 = 45
SW6 SW4 SW3 SW1
on on on on
All remaining DIP-switches SW9 SW8 SW7 SW5 SW2 stay in position "OFF".
Changing of gobos
Open the lid with the label Varyscan
® 4 1200 HMI, by screwing off the six screws. Now you are able to
press the gobos at the gobo wheel out of their holder and then put in other gobos. Take care that the
gobo engages exactly with it's slits in the holder. If the gobo is put in correctly, it moves easily inside
the holder. Now you can close the lid.
GOBO measurements
With your Varyscan
® , you have the chance of using two different gobo sizes.
