Informationen

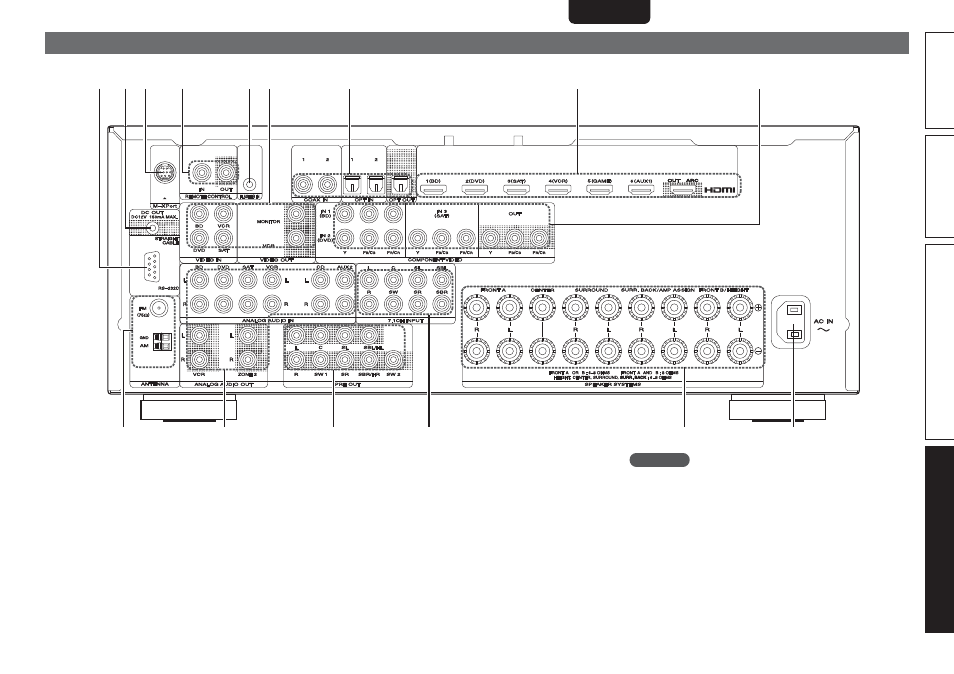

Rückseite
Lesen Sie die Erläuterungen auf der Seite, die in Klammern angegeben ist ( ).
q
y
t
e
r
w
Q4 Q3
Q5
u
Q2
Q0
o
Q1
i
q
UKW/MW-Antennenanschlüsse ············································ (20)
w
Analoge Audioanschlüsse ···············································(17 – 22)
e
PRE OUT-Anschlüsse ·············································(6, 22, 36 – 38)
r
7.1CH INPUT-Anschlüsse ························································ (21)
t
Lautsprecheranschlüsse ··············································(6, 36 – 38)
y
Wechselstromeingang (AC IN) ················································· (6)
u
COMPONENT VIDEO-Anschlüsse ···································· (17, 18)
i
HDMI-Anschlüsse ···································································· (16)
o
Digitale Audioanschlüsse ················································(17 – 20)
Q0
VIDEO-Anschlüsse ····························································(17 – 19)
Q1
FLASHER IN-Buchse
Bei Verwendung einer Control Box oder anderer Steuergeräte, mit
der dieses Gerät bedient werden kann.
Q2
REMOTE CONTROL-Buchsen ················································· (40)
Q3
M-XPort-Buchse ······································································ (21)
Q4
DC OUT-Buchsen ····································································· (41)
Q5
RS-232C-Anschluss ································································· (41)
HINWEIS
Berühren Sie nicht die inneren Anschlusskontakte auf der Rückseite.
Elektrostatische Entladung könnte das Gerät beschädigen.
