128

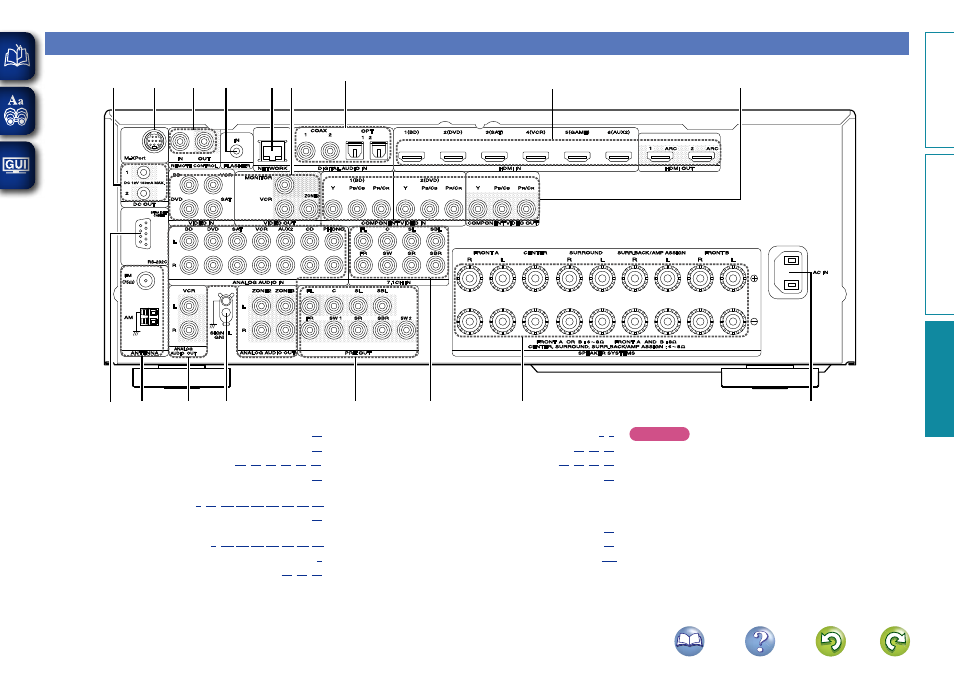

Rückseite
Lesen Sie die Erläuterungen auf der Seite, die in Klammern angegeben ist ( ).
Q0
q w e r t y u i
Q1 o Q4 Q5 Q6 Q7 Q3 Q2
q RS-232C-Anschluss ································································· ( 67 )
w UKW/MW-Antennenanschlüsse ············································ ( 15 )
e Analoge Audioanschlüsse ························ ( 11 , 12 , 13 , 16 , 17 , 18 )
r SIGNAL GND-Anschluss ························································· ( 16 )
t PRE OUT-Anschlüsse
············································ ( C 6 , 18 , 57, 58, 59, 60, 61, 62, 63)
y 7.1CH IN-Anschlüsse ······························································· ( 17 )
u Lautsprecheranschlüsse
·················································· ( C 6 , 57, 58, 59, 60, 61, 62, 63)
i Wechselstromeingang (AC IN) ········································· ( C 5 )
o COMPONENT VIDEO-Anschlüsse ······························ ( 10 , 11 , 12 )
Q0 HDMI-Anschlüsse ·························································· ( C 3 , 8 )
Q1 Digitale Audioanschlüsse ··········································· ( 10 , 12 , 16 )
Q2 VIDEO-Anschlüsse ················································· ( 10 , 11 , 12 , 13 )
Q3 NETWORK-Anschluss ····························································· ( 19 )
Q4 FLASHER IN-Buchse
Bei Verwendung einer Control Box oder anderer Steuergeräte, mit
der dieses Gerät bedient werden kann.
Q5 REMOTE CONTROL-Buchsen ················································· ( 66 )
Q6 M-XPort-Anschluss ································································· ( 17 )
Q7 DC OUT-Buchsen ····································································· (67)
HINWEIS
Berühren Sie nicht die inneren Anschlusskontakte auf der Rückseite.
Elektrostatische Entladung könnte das Gerät beschädigen.
