ROTEL RSP985 - Handbuch (Seite 2)

2 RSP-985

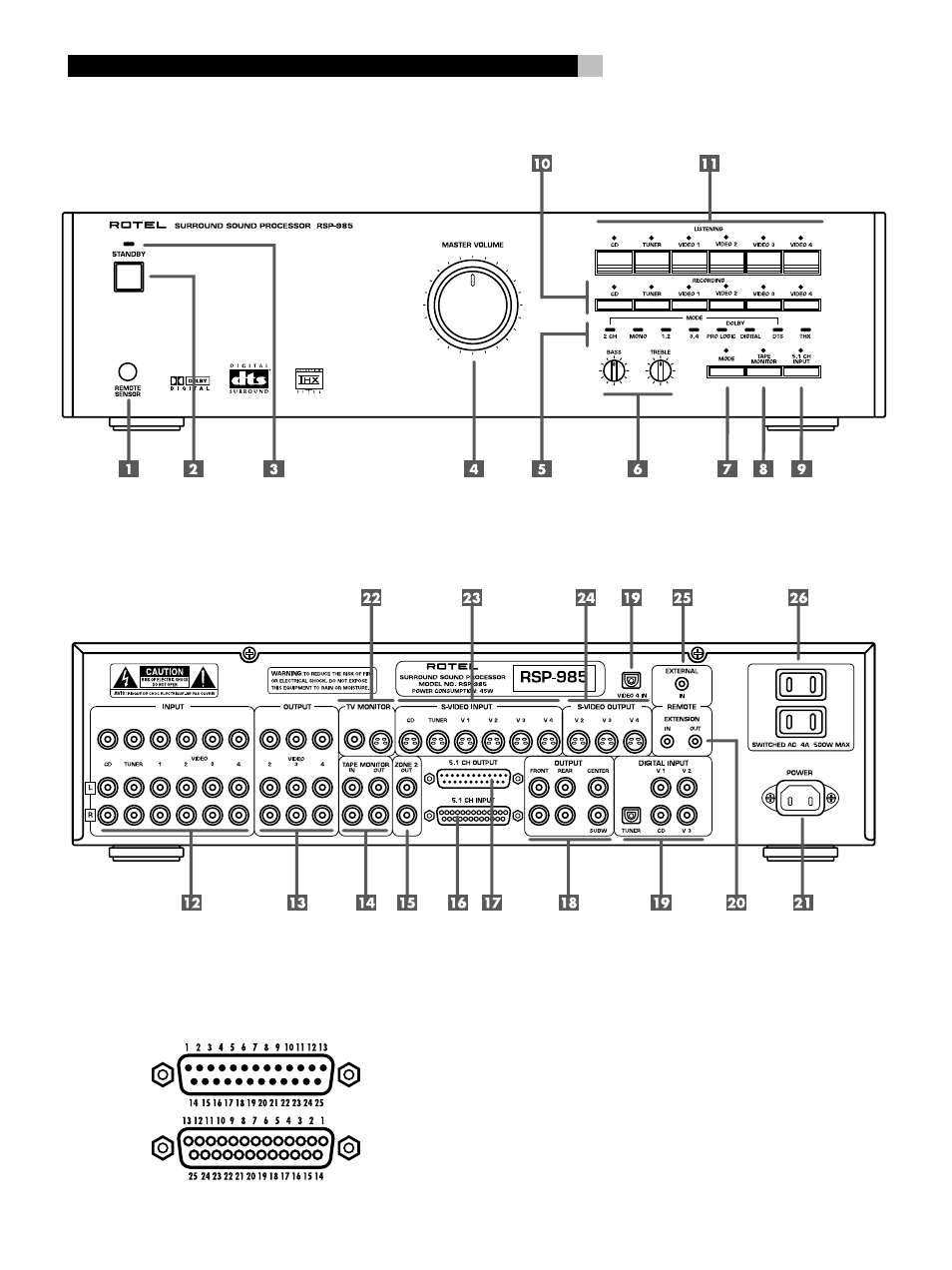

1: Controls and Connections
Bedienelemente und Anschlüsse
English
2: DB25 pin assignments
Pinbelegung der DB25-Anschlüsse
1 left front +
2 center +
3 right front +
4 subwoofer +
5 left surround +
6 right surround +
14 left front GND
15 center GND
16 right surround GND
17 subwoofer GND
18 left surround GND
19 right surround GND 1 Signal Front links
2 Signal Center
3 Signal Front rechts
4 Signal Subwoofer
5 Signal Surround links
6 Signal Surround rechts
14 GND Front links
15 GND Center
16 GND Front rechts
17 GND Subwoofer
18 GND Surround links
19 GND Surround rechts
