12

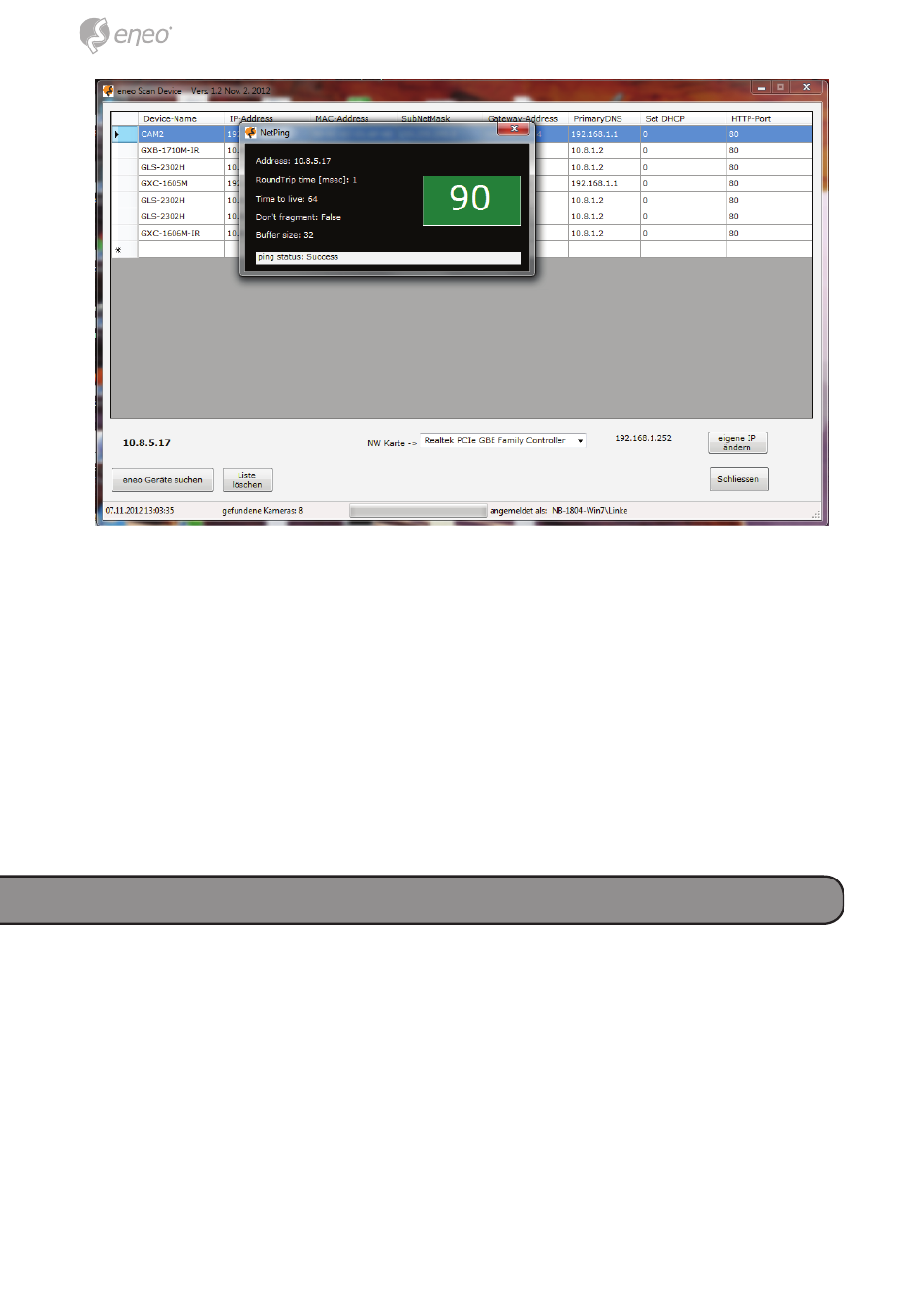

During the configuration process of the camera, is a small „NetPing“ win-
dow, in which a „time out“ counter is counted down. The maximum time for
a change the camera‘s IP address should not exceed (maximum timeout
value) 90 seconds. The successful re-configured IP data after completion
of the configuration process, in accordance with „NetPing“ window. Thus,
the successful completion of the configuration is ensured. The „NetPing“
window automatically closes, and it will be automatically started a new
search. So you can see the current status of the camera IP addresses in
the Excel-like view.
Changing your own PC to be used in the IP address
The local IP address can be used in this tool, without having to go into the
Control Panel must be changed.
The list window „NW Card“ the desired network card of the PC is selected.
Then „change its own IP address“ by pressing the button, a new window
opens. In this window, then the desired network data can be edited. Also,
switching to DHCP is possible here. See the following representations:
