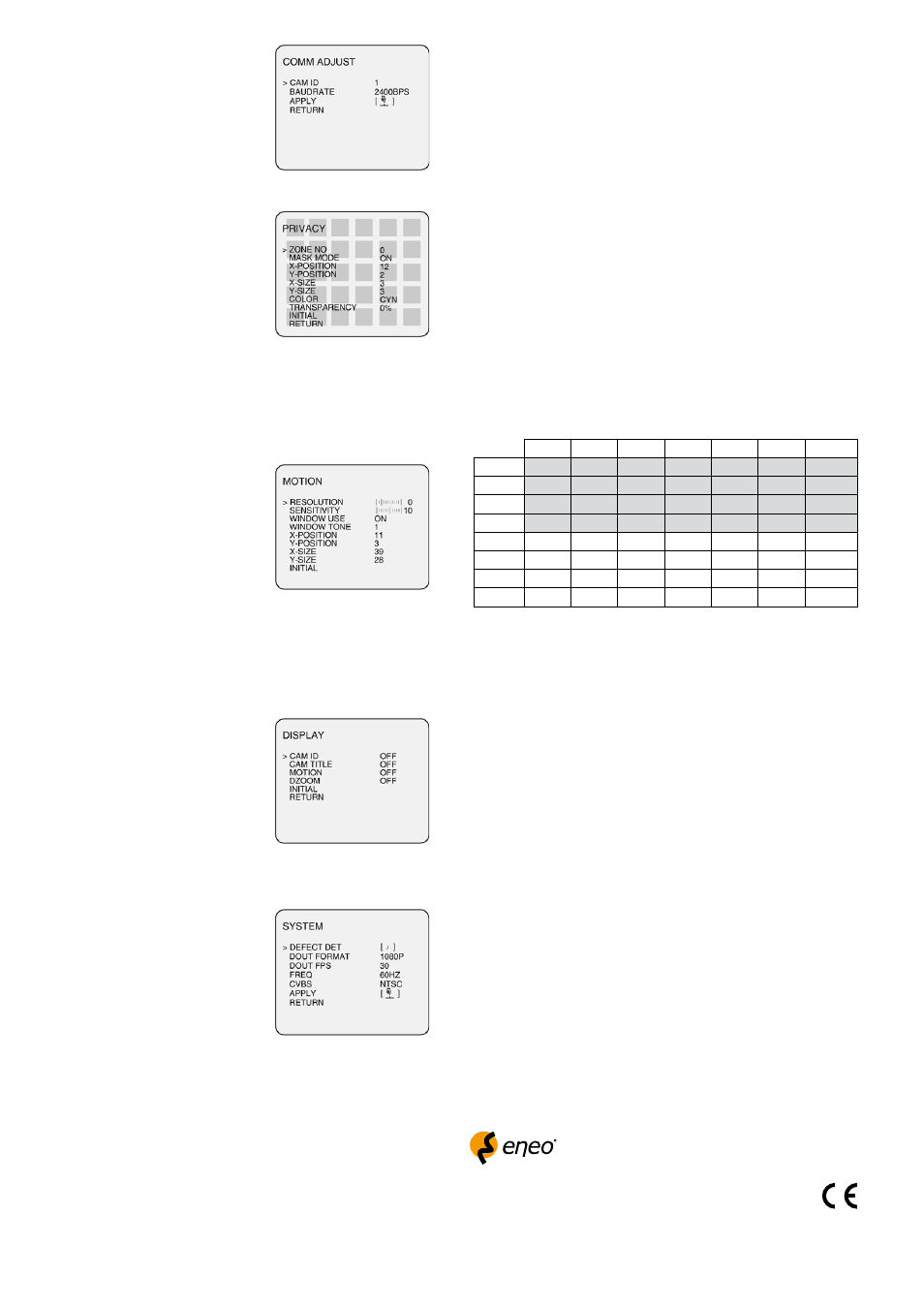

• COMM ADJUST: Enable user to set up
CAMERA ID, BAUDRATE
1. CAM ID: Enable user to set up Camera ID
(1~255)
2. BAUDRATE: A communication speed to
communicate with external device.
(2400, 4800, 9600, 19200, 38400, 57600,
115200)
3. APPLY: Enable user to setting of
Communication
•
PRIVACY: Privacy is the function that covers
the some part on screen to prevent private
life. (maximum 30 point covered)
1. ZONE NO: Enable user to set up a position
from 0 to 29 areas
2. MASK MODE: Enable user to set up screen
output of chosen position
3. X-POSITION: Mask Horizontal start position
4. Y-POSITION: Mask Vertical start position
5. X-SIZE: Mask Horizontal width
6. Y-SIZE: Mask Vertical height
7. COLOR: Set the mask colour
8. TRANSPARENCY: Set the transparency of the mask
9. INITIAL: Enable user to initialize setting of PRIVACY MENU
•
MOTION: Motion detection function
1. RESOLUTION: Enable user to set up
resolution
2. SENSITIVITY: Enable user to set up
sensitivity
3. WINDOW USE: Enable user to select to
motion area
4. WINDOW TONE: Enable user to area
window tone
5. X-POSITION: Window Horizontal start position
6. Y-POSITION: Window Vertical start position
7. X-SIZE: Window Horizontal width
8. Y-SIZE: Window Vertical height
9. INITIAL: Enable user to initialize setting of MOTION DETECT
•
DISPLAY: Enable user to set up a screen
marking of CAM ID, CAM TITLE, MOTION,
DZOOM
1. CAM ID: Enable user to set up ID for RS485
2. CAM TITLE: Enable user to set up output
in fixed CAM TITLE
3. MOTION: Enable user to set up output of
MOTION on the screen as MOTION ON
setting
4. DZOOM: Enable user to set up output DZOOM ratio
5. INITIAL: Enable user to initialize of DISPLAY menu
• SYSTEM
1. DEFECT DET: White pixel detection and
compensation function
2. DOUT FORMAT: Enable user to set up
digital output format (720p, 1080p)
3. DOUT FPS: Enable user to set up digital
output frame rate
4. FREQ: Enable user to set up power-
frequency (50Hz, 60Hz)
5. CVBS: Enable user to set up CVBS type NTSC or PAL
6. APPLY: Enable user to setting of SYSTEM
5.7 FACTORY DEFAULT
Enable user to reset all of the status as the factory default
5.8 EXIT
After saving the current settings in the OSD menu and exit
6. HOT KEY
To quickly switch CVBS type (NTSC or PAL), push LEFT KEY or RIGHT KEY more than
2 seconds and push SET KEY.
7. Pelco "D" Protocol Commands
Most widely used Commands
BYTE1 BYTE2 BYTE3 BYTE4 BYTE5 BYTE6 BYTE7
TELE 0xFF CamID 0x00 0x20 0x00 0x00 ChkSum
WIDE 0xFF CamID 0x00 0x40 0x00 0x00 ChkSum
NEAR 0xFF CamID 0x01 0x00 0x00 0x00 ChkSum
FAR 0xFF CamID 0x00 0x00 0x00 0x00 ChkSum
MENU 1 0xFF CamID 0x00 0x23 0x00 0x5F ChkSum
MENU 2 0xFF CamID 0x00 0x03 0x00 0x62 ChkSum
MENU 3 0xFF CamID 0x00 0x07 0x00 0x5F ChkSum
MENU 4 0xFF CamID 0x00 0x07 0x00 0x60 ChkSum
MENU 1: Pelco Keyboard Menu On / Off [95 (=0x5F) + Pattern]
MENU 2: V/D Keyboard Menu On / Off
[Set Preset + 98 (=0x62)]
MENU 3,4: Another Menu On / Off [Go To Preset + 95 (=0x5F) or 96 (=0x60)]
CamID: 0x00 ~ 0xFF
ChkSum: The Check Sum is the 8 bit (modulo256) sum of the payload bytes
(BYTE2 - BYTE6) in the command.
• TELE = UP KEY
• WIDE = DOWN KEY • NEAR = LEFT KEY
• FAR = RIGHT KEY • MENU = SELECT KEY
8. Specifications and Dimensional Drawings
as far as further languages please find on our Hompage:
www.eneo-security.com
www.videor.com
Technical changes reserved
© Copyright by VIDEOR E. Hartig GmbH
03/2013
