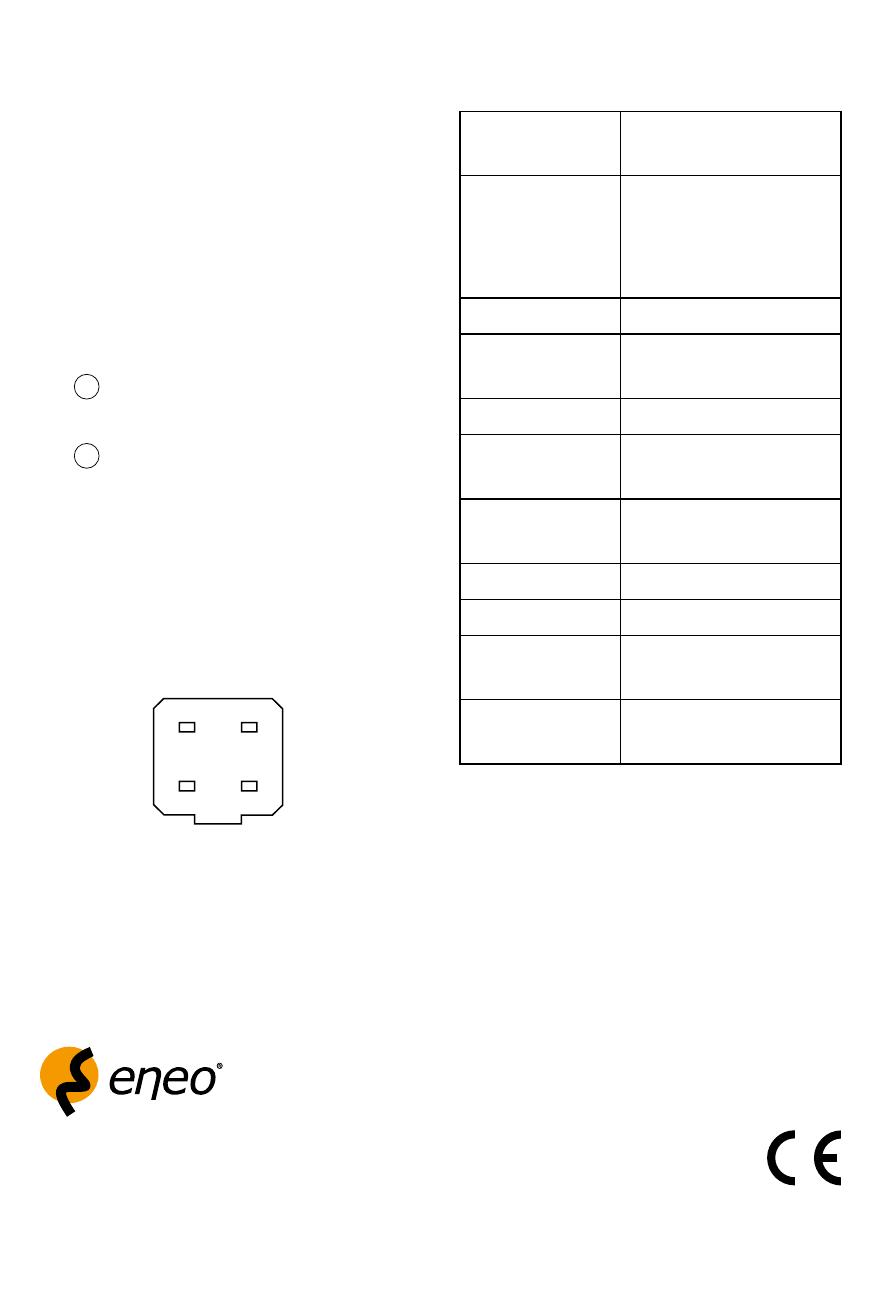

Wiring
a) AI Lenses
red: DC supply voltage
white: video- signal
shield/black ground (-)
b) DC Control Lenses
1
2
3
4
Shield: NC
Looking at lens connector:
Damper coil
1.000 ohms
Drive coil
190 ohms
+
+
}
}
4
3
2
1
eneo
®
is a registered trademark of Videor E. Hartig GmbH
Exclusive distribution through specialised trade channels only
VIDEOR E. Hartig GmbH
Carl-Zeiss-Str. 8 · 63322 Rödermark/Germany
Tel. +49 (0) 60 74 / 888-0 · Fax +49 (0) 60 74 / 888-100
www.videor.com · www.eneo-security.com
# 990978
Technical changes reserved.
© Copyright by VIDEOR E. Hartig GmbH 07/2011
* Applies only to AI-models
** The exact min. aperture for each lens
can be seen in our product brochure.
For camera
format
1/2” and/or 1/3”
Aperture /
Mount
Max. aperture to min.
F125** / CS Mount
Pinhole:
F2,5 ~ F360 / C Mount
Power supply* +8-16VDC
Current
consumption
Metersystem: <35mA
Servometric: <50mA
Input signal*
0,5 - 1,0Vpp C(CVS)
Input
impedance*
High impedance
Iris response
time
Approx. 2 sec.
Iris accuray*
±15% at +20°C
Sensitivity*
< 10% video signal
Temperature
range
-20°C to +50°C
Automatical
iris closing
Yes
Common technical data:
