Use / Use of accessories
© Changing a disc
½
Always wear protective gloves
when changing cutting or roughing /
grinding discs.
˽
Press the spindle lock button 9 only after the
mounting spindle 7 has reached a standstill,
Fig. A.
˽
Press the spindle lock button 9 to block the
drive.
˽
Release the clamping nut 6 using the spanner
10 , Fig. B.
˽
Place the roughing, grinding or cutting disc on
to the mounting flange 8 with its labelled side
facing towards the device.
˽
Then replace the clamping nut 6 , with its
raised side facing upwards, on to the mounting
spindle
7 .
˽
Press the spindle lock button 9 to block the
drive.
˽
Tighten the clamping nut 6 again with the
spanner 10 .
Note: Replace a new disc immediately if it runs
unevenly or vibrates after being exchanged.
˽
After replacing a disc let the device run under
no load for 30 seconds as a safety check.
Look out for unusual noises or generation of
sparks.
˽
Check that all the fastenings are correctly
attached.
˽
Pay attention to see that the arrow showing the
direction of rotation on the cutting or roughing /
grinding discs (including diamond cutting discs)
corresponds with the direction of rotation of the
device (see arrow on the head of the device).

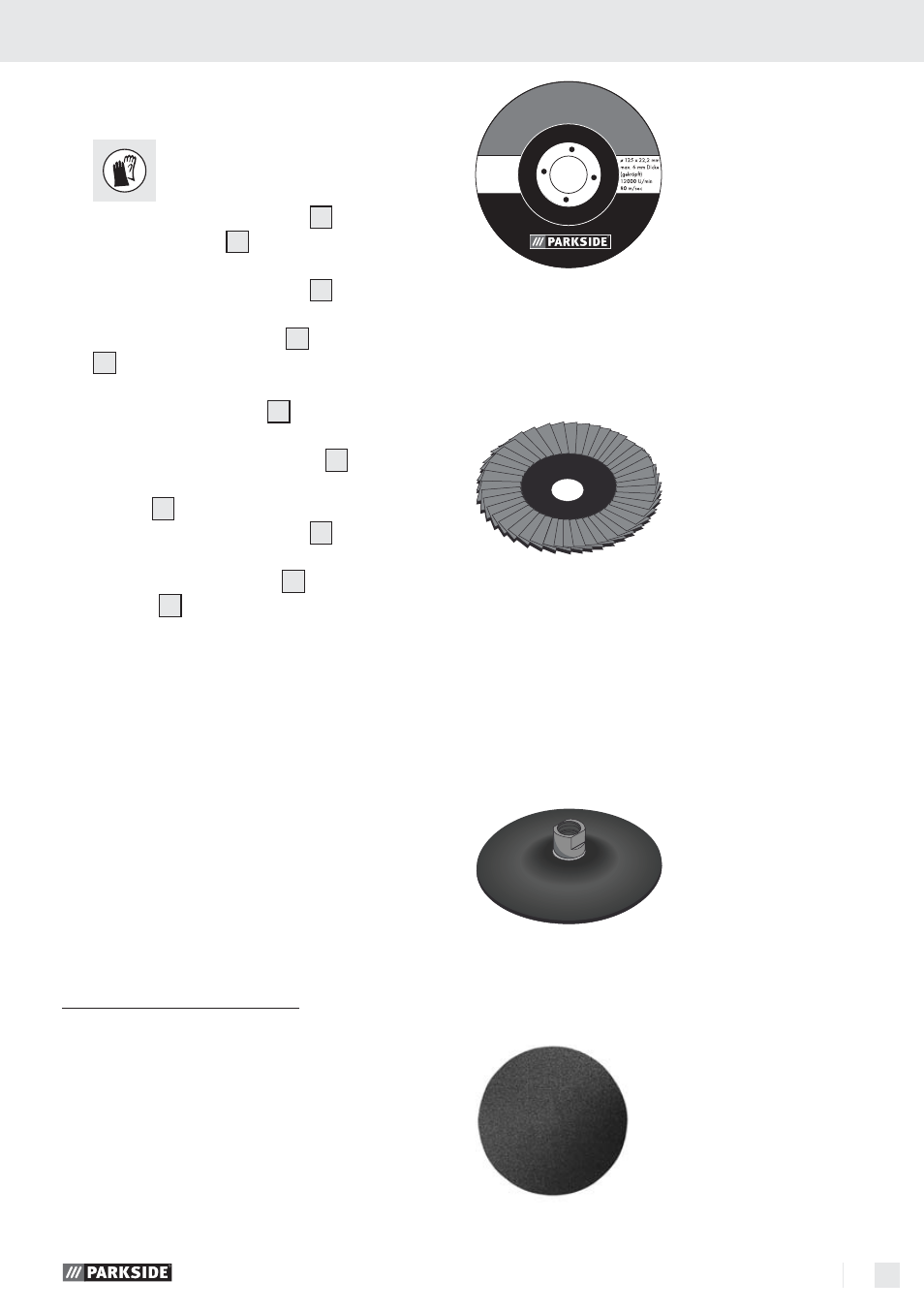

© Use of accessories
© Cutting / roughing discs
You can use the following cutting or roughing/
grinding discs with this device:
Dimensions:
ø 125 x 22,2 mm
to max. 6 mm thick
(depressed centre)
Speed: 12.000 rpm
Circumferential speed: 80 m / sec
© Flap discs for metal
Dimensions: ø 125 mm
Speed: min. 12.000 rpm
© Other accessories
You can also use abrasive consumables and tools
complying with the following technical specification:
Spindle thread:
M14
Speed: min. 12.000 rpm
Backing plate for grinding discs
Dimensions:
ø 115 mm / 125 mm
Grinding discs for wood / masonry attached
with hook and eye fixings
Dimensions:
ø 115 mm / 125 mm
