Keter Manor 6X5DD Benutzerhandbuch
Seite 13
s26b
s26b (x22)
1”/26mm
• Fully fit the panel inside the profile
• Fixez entièrement le panneau dans la
découpe
• Coloque completamente el panel
dentro del perfil
• Passen Sie das Panel genau und
akkurat in das Profil ein
• Plaats het paneel volledig in het profiel
• Inserire correttamente il pannello
all’interno delle guide
• Encaixe totalmente o painel dentro do
contorno
this side down

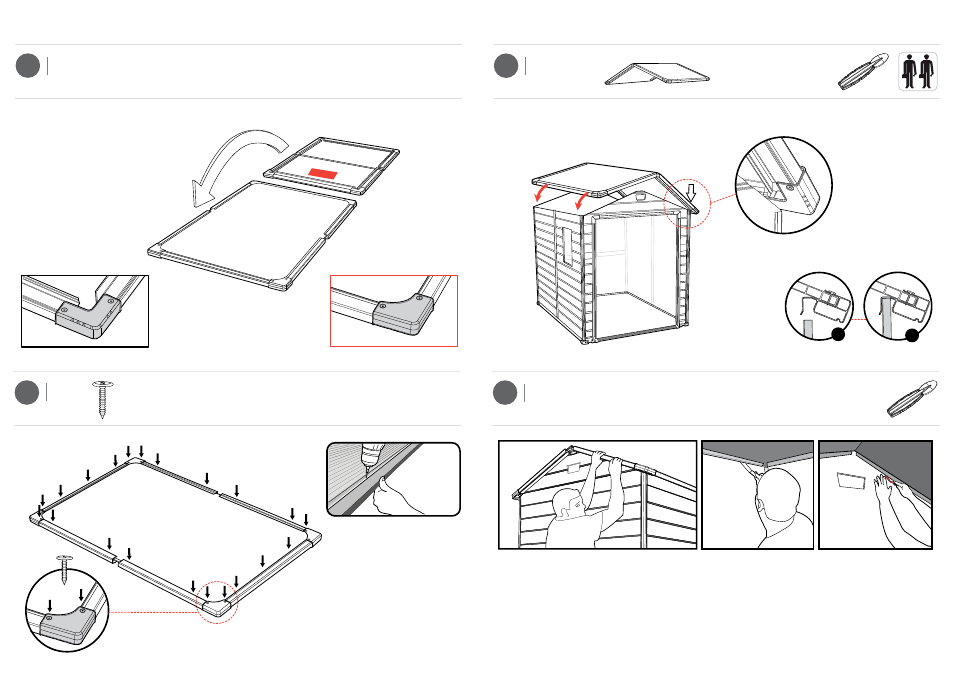

• Turn the roof panels upside-down
• Retournez les panneaux du toit
• Coloque boca abajo los paneles del tejado
• Drehen Sie die Dachelemente herum
• Keer de dakpanelen om
• Girate Il Pannello Del Tetto Sottosopra
• Vire os Painéis do Telhado de Cabeça para Baixo
35
34
37
36
1
2
• Ensure roof is set fully down; use spatula tool as shown in the figure
• Assurez-vous que le toit est bien entièrement posé ; utilisez la spatule comme le montre la figure
• Asegúrese de que el techo esté completamente encajado abajo;
utilice la espátula como lo muestra la figura
• Vergewissern Sie sich, dass das Dach vollständig aufgesetzt ist
Benutzen Sie den Spachtel wie in der Zeichnung dargestellt
• Verzeker u ervan dat het dak volledig naar beneden is;
Gebruik het spatelwerktuig zoals getoond op de afbeelding
• Assicurati che il tetto sia completamente inserito fino in fondo. Usa la spatola come mostrato in Figura
• Certifique-se de que o telhado está completamente ajustado; Utilize a espátula como indicado na figura
Roof assembly
Montage du toit
Armado del techo
Dachmontage
dakmontage
Montaggio del tetto
Montagem do telhado
24
25
