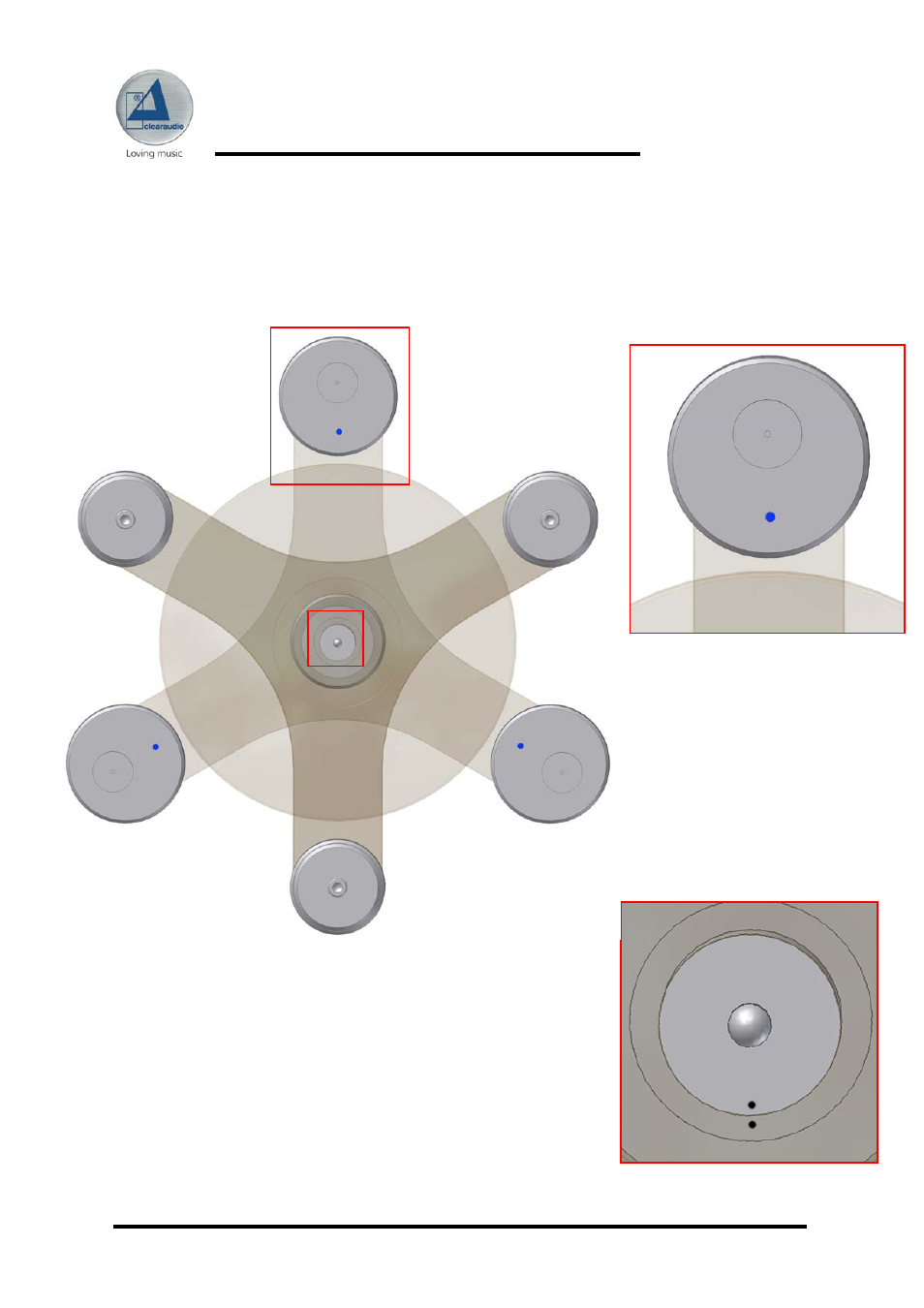

Place all 3 motor drive units beside the round bases and bring all 3 motor drive unit power
cables to the place where your APG will stand. Tighten all 3 power cords straight. After that,
place the 3 motors on in that way, that all 3 blue LEDs show to the central spindle (shown on
the picture). You can leave the power cords of the 3 motors either outside of the chassis or
put them through the centre of the motorbasecassis!
Due to the high precision machining there could be left some air
inside the bearing. The air will flow out after several turns of the
platter. Please make sure that the two markings on the turntable
platter and on the bearing are in one line (as shown in figure
right). The correct position of these markings is very important,
because they had been calibrated at the factory.
