Fronius Power Package - Handbuch (Seite 59)

57
EN

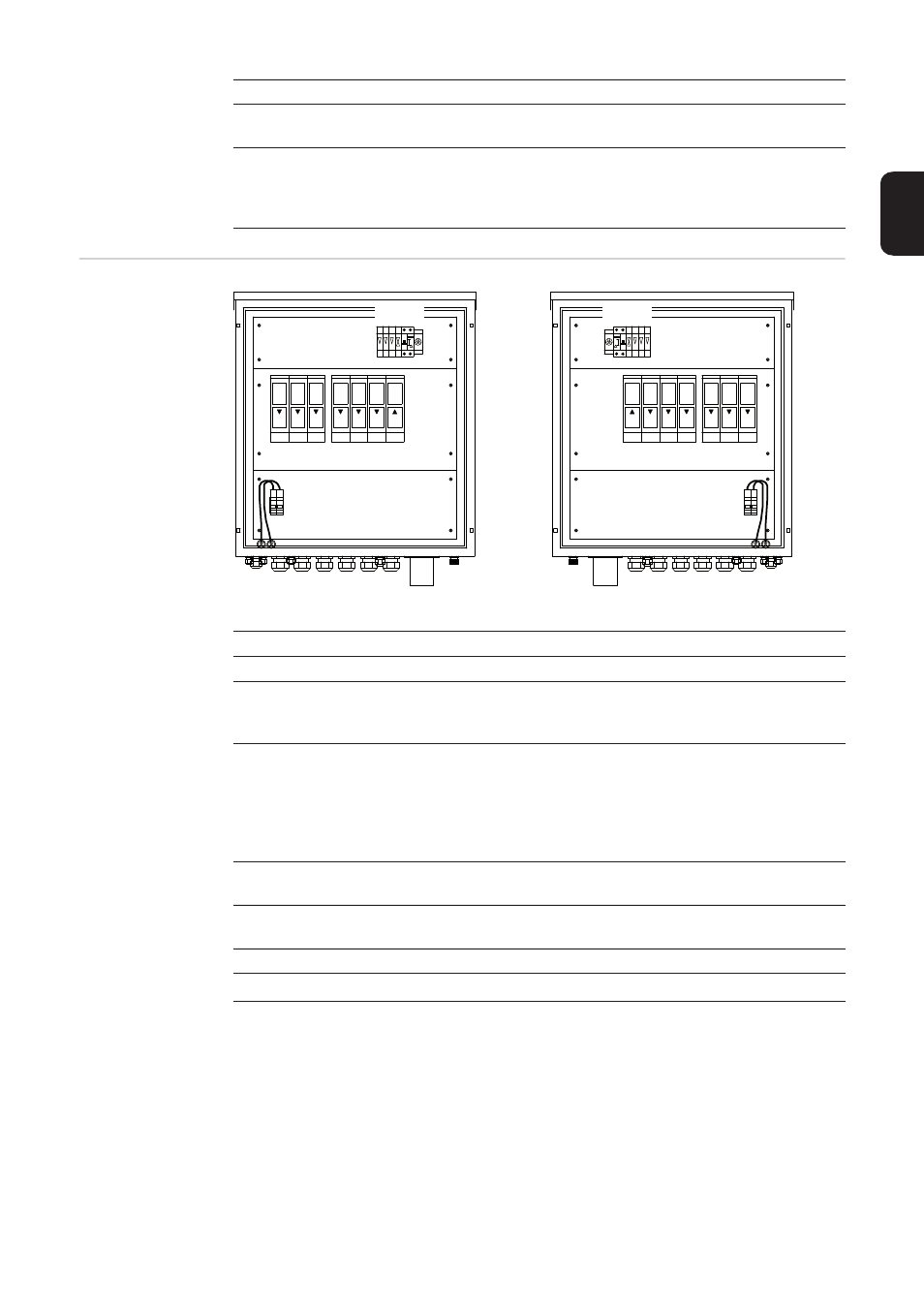

Description of the
device, AC Com-
biner internal
AC Combiner with cable outlet on right AC Combiner with cable outlet on left
(7) M20 metric screw joint
for the cable from an external functional earthing
(8) CEE 230 V socket (optional)
Country-specific adapters are not included in the scope of supply for the Fronius
Power Package.
Item Designation
(3)(4)(5) (6)(7)(8)
(1) (2)
(11)
(10)
1 2 3 4 5 6
(a)(b)
(9) (9) (3) (4) (5) (6) (7) (8)
(1) (2)
(11)
(10)
1 2 3 4 5 6
(a) (b)
Item Designation
(1) AC overvoltage protection (optional)
(2)
(a)
(b) Back-up fuse for CEE socket (optional)
FILS 16 A / 30 mA
Back-up fuse for CEE socket (optional)
(3)
(4)
(5)
(6)
(7)
(8) Fuse for inverter
50 A (Fronius Symo)
63 A (Fronius Eco)
The number of fuses depends on the number of inverters present (2 to maximum
of 6).
(9) Back-up fuse for AC overvoltage protection (optional)
80 A
(10) Connections for data communication cables to the inverters
RJ45, Fronius Solar Net
(11) Connections for external data communication cables
Inverter number
1-6
