Installation
3 · G&D DVISplitter2
Installation
To install the DVISplitter2 proceed as follows:
DVI Out 1: Connect a monitor to output the video signal or another DVISplitter2
video extender.
DVI Out 2: Connect a monitor to output the video signal or another DVISplitter2
video extender.the video signalthe video signal
DVI CPU: Connect the device’s DVI output which provides the incoming video
signal to this interface.
12VDC: Insert the supplied power pack into this interface. Afterwards, connect the
supplied IEC cable to the power pack and the supply voltage.

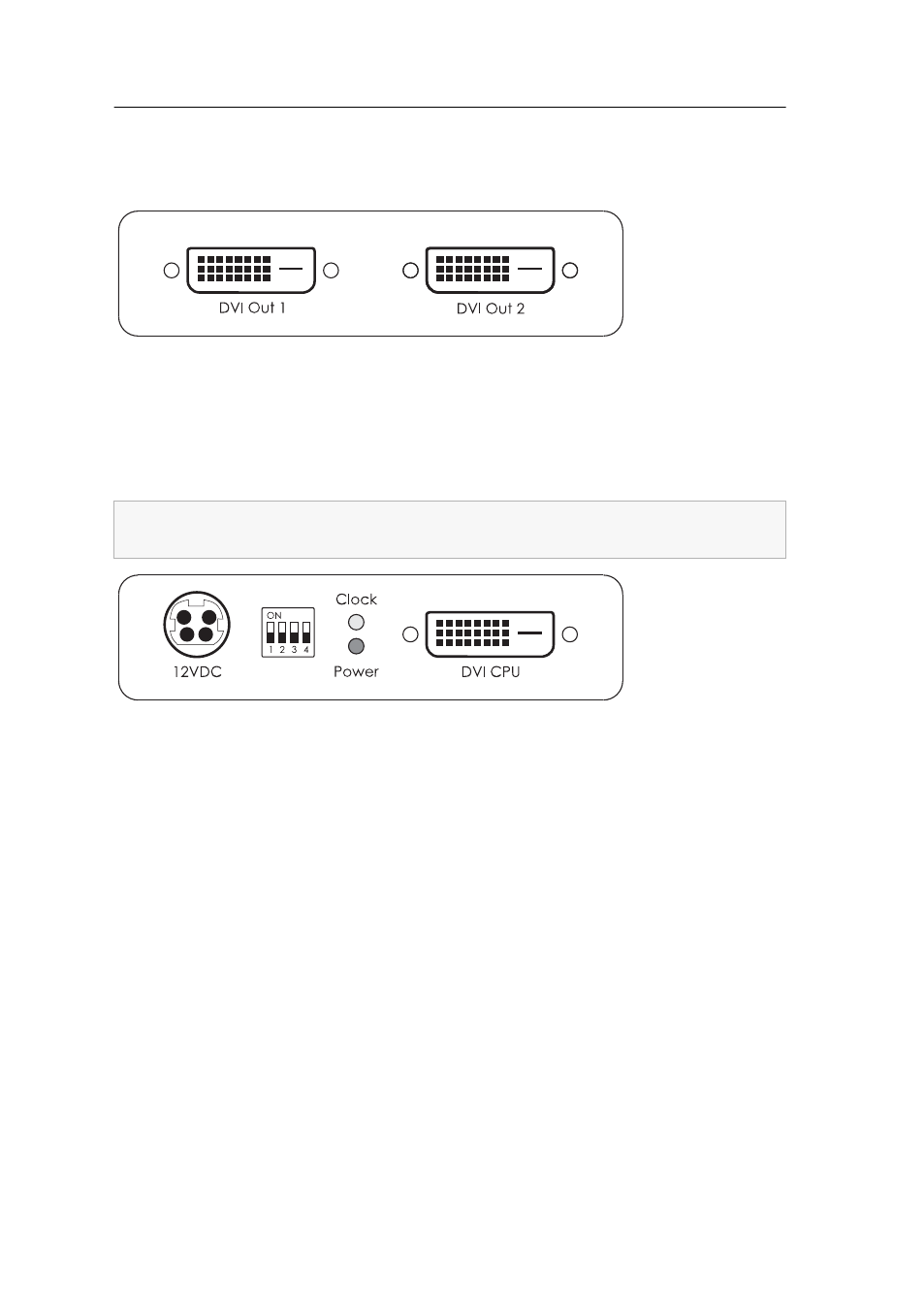

Figure 1: Front view of the video extender DVISplitter2
The DDC information of either the monitor or the video extender that is con-
nected to the DVI Out 1 interface is transmitted to the DVI CPU interface.
Figure 2: Back view of the video extender DVISplitter2
