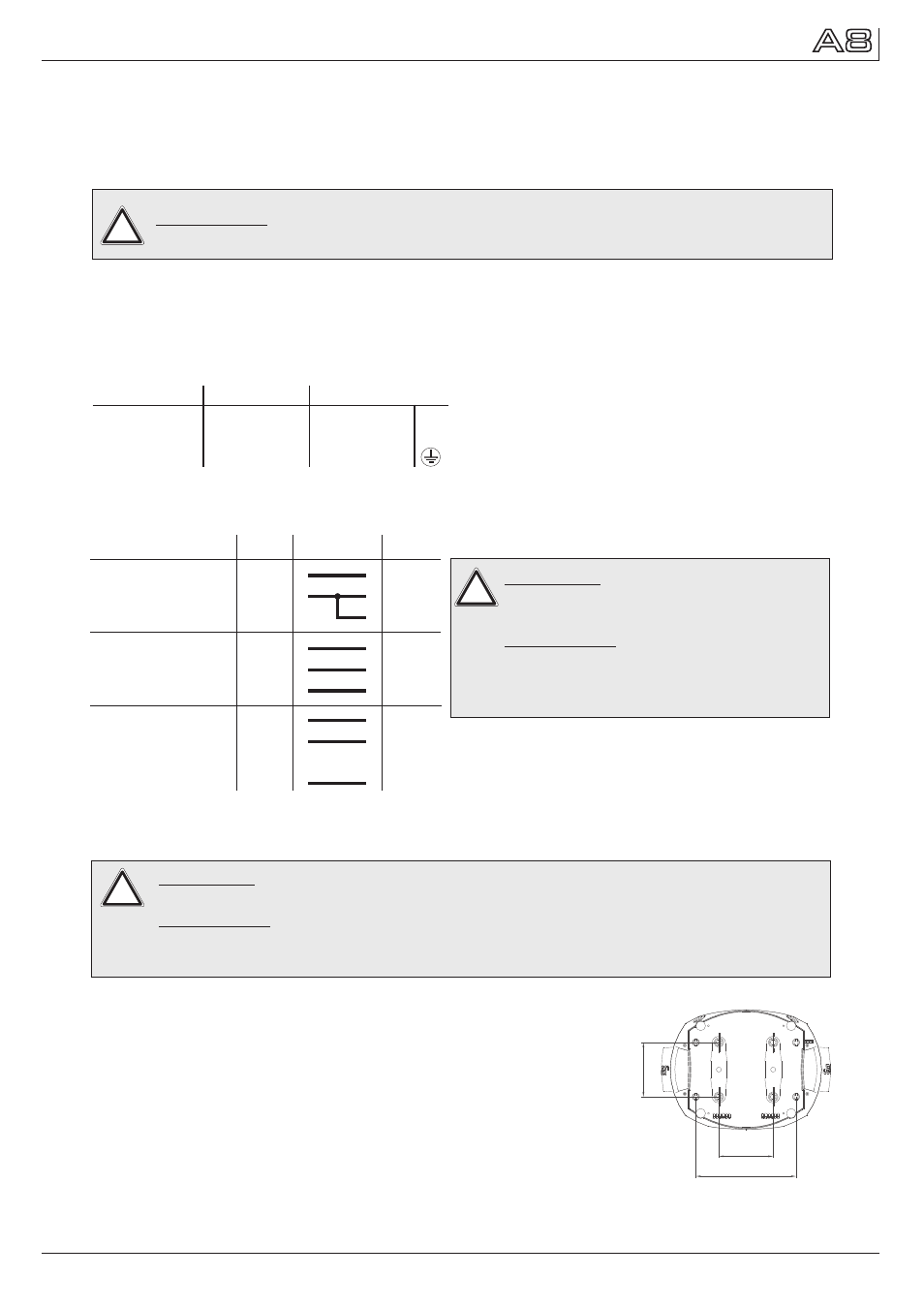

23
The A8 is supplied with a power cable with a Neutrik PowerCon connector.
3-prong grounding type plug that fits your supply. US model comes without power cable
and connectors. Required cable type see 3.5 page 24.
Connected load: voltage 100-240 V, frequency 50 - 60 Hz
Install a
brown black live “L”
blue white neutral “N”
yellow/green green ground
EU Model: US Model:
ATTENTION: Installation de la connexion au réseau doit être effectuée par
un professionnel!
!
The A8 may only be connected to mains supply systems according to this drawing:
2 conductor,
1 phase: L
N L
N
PE
3 conductor,
1 phase: L
N
L L
PE
N
4 conductor,
3 phase: L
1
L
2
L
3
N
L
N
PE
mains A8
WARNING: A8 only can be used in
Canadian mains supply system with
2 cond., 1 phase with max. 120V!
ATTENTION: Le A8 peut être utilisé
au Canada avec 2 conducteurs, 1
phase et une tension maximal de
120V!
!
3.2 Rigging the fixture
WARNING: Keep fixtures at least 0,5 m away from inflamable articles!
Always use a safety cable attached to the base!
ATTENTION: Respecter une distance minimale de 0,5m entre le projecteur
est d'éventuelles objets inflammables! Sécuriser toujours le
A8 avec une élingue de sécurité appropriée!
!
The A8 can either be placed on the floor or hang on a trussing
system in any position. When placing the unit on the floor make
sure that it stands on rigid ground, because the air inlets in the
base must not be covered with anything! To mount the unit on a
trussing system use two of the original JB-Lighting omega
brackets with Camloc-connectors. The Camlocs must snap in to
be locked propperly. Always attach a safety cable to secure the
unit.
140
224
1
4
0
