25
The value of A8 in chain depends on the local power network. Never use more than three
in one line.
Power throughput cable must be rated 20A min., have three conductors 1,5mm² min
conductor size and a outer cable diameter of 5-15mm. Use only original PowerCon plug
from Neutrik. See installation manual from manufacturer (www.neutrik.com).
brown black live “L”
blue white neutral “N”
yellow/green green ground
EU cable: US cable:
4. Control panel

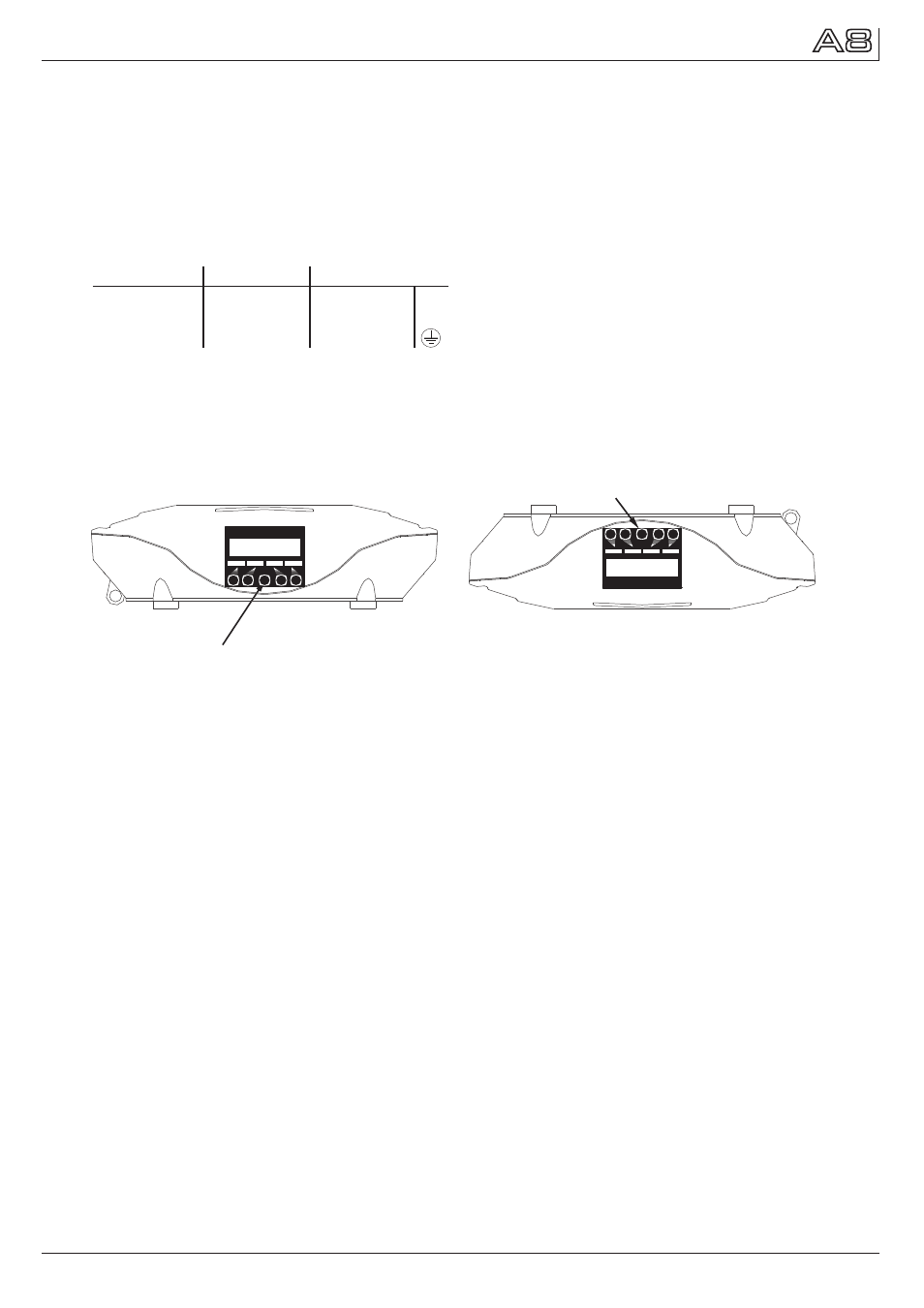

Rotating the display
The A8 is equiped with a backlit graphic display, which can be rotated through 180 deg if the
unit is installed upside down.
Use the centered button to change the orientation of the display. To adjust the personal
setting of the A8 zoom use keys located on the control panel. Functions see menu on the
following page.
The A8 can be addressed in the main menu. For addressing in a case, the reset can be
aborted by pressing the right base button during powering the fixture. The main menu
also informs about the DMX-mode. If wireless DMX is used, the field intensity from the
sender will be displayed.
Press "ENTER" to enter a menu, select a function or apply a selection.
Press keys "DOWN" and "UP" to scroll within a menu or set values.
To escape a function press key "ESC".
A few functions can be entered or recalled by means of a combination of two key. For
example FINE ADJUST in the SERVICE area and
in the
STANDALONE. To enter these functions press “ENTER” and keep it down and press
“ESC” in addtion. To leave the menu press the combination in the revers order. Press
"ESC" (keep it down) and press "ENTER" in addition.
The main menu can be locked to avoid an accidental change of the configuration. To lock
press “ENTER” and keep it down and press “ESC” in addition. To unlock press "ESC"
(keep it down) and press "ENTER" in addition.
Special functions are assigned to the display lighting:
The display is not illuminated during reset. Slow flashing of the display illumination means
no DMX signal is connected. Fast flashing of the display illumination showing JB-Lighting
means a failure was reported and stored in the ERROR LIST (To clear - see menu navi-
gation on page 24). Fast flashing of the display illumination showing an error message
means an current failure is reported, e. g. *PAN TIMEOUT - please contact your dealer or
our service department. If the A8 receives a DMX-signal the display illumination dims out
after 30 seconds in order not to irritated during standard operation.
MODIFY, RUN and REMOTE
A8
ESC ENTER DOWN UP
JB - LIGHTING
A8
ESC ENTER DOWN UP
JB - LIGHTING
