3. Control panel
2.5 Installing a plug on the power cord
Install a plug like described in chapter 2.2.
Connected load: Voltage 230Volts, frequence 50Hz, power 900VA (3,9 Amps)
Use a power supply of at least 960VA (4,2 Amps) per unit, as the fixture need more
power during the process of powering up.
Connect the fixture to a proper installed grounded system only. If any doubts on the
electrical installations occur, consult a qualified electrician.
In case of damages occuring due to a not propper installed electrical system, warranty
claims will be invalidated.
Don´t use fixtures when top cover is not fixed properly. Contact with electronical parts
can result in risk for life.
Connect fixture only after assuring that the electrical installation fits your demands.
If any doubts occur consult a qualified technican!
Electrical shock 5000V ( )
Varyscan P6
900 VA
230V 50Hz

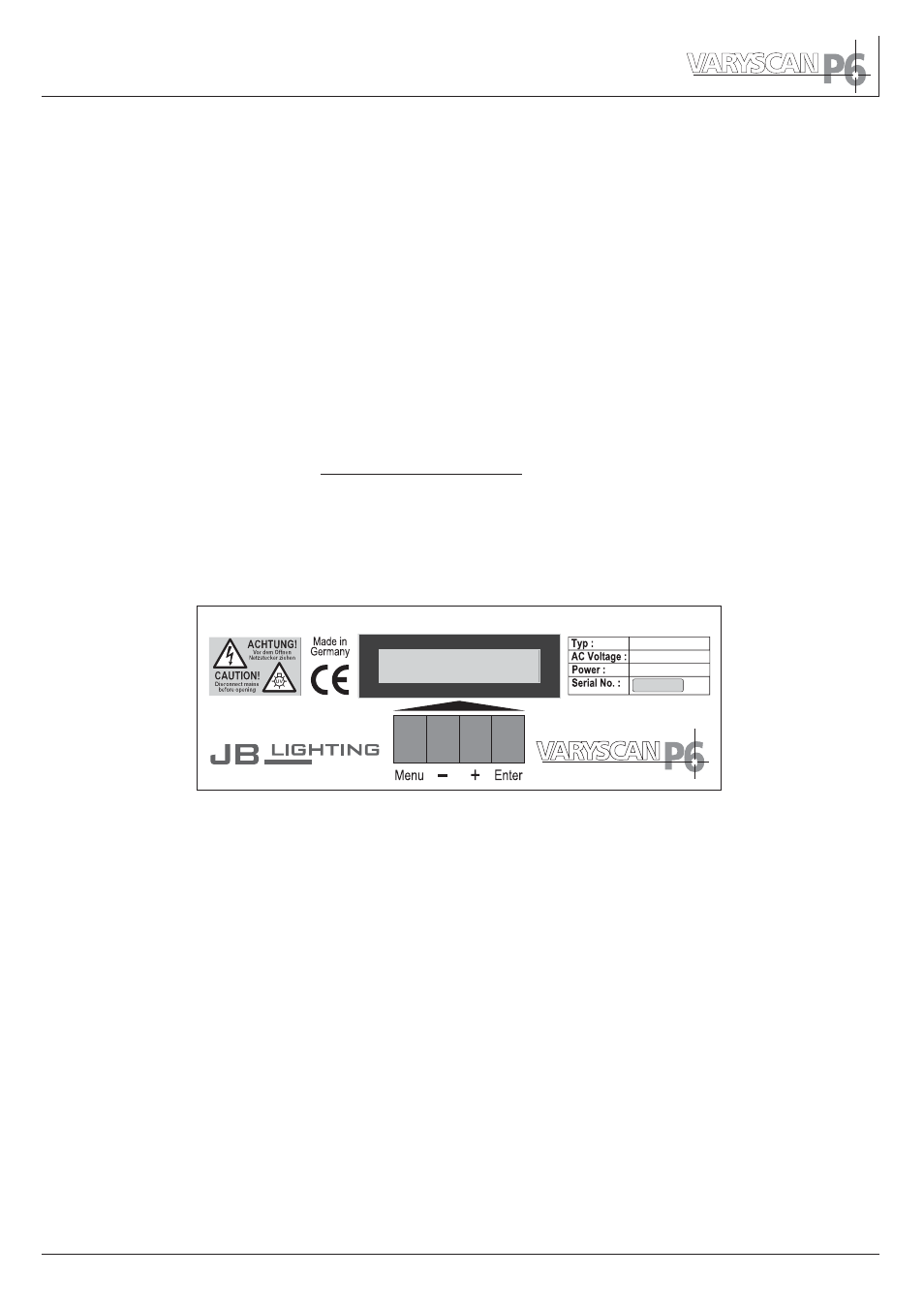

To adjust the personal setting of the Varyscan P6 use keys located on the control
panel. Functions see menu on the following page. To enter the menu press "Menu"
key one time. Use keys "-" and "+" to move within the menu. Use key "Enter" to select
the function and to recall the next menu section. To escape press key "Menu".
During reset the display is not illuminated.
Slow flashing of the display illumination means no DMX signal is connected.
Fast flashing of the display illumination showing
means a failure
was reported and stored in the ERROR LIST (To clear - see menu navigation on
page 8).
Fast flashing of the display illumination showing an error message means an
current failure is reported, e. g.
- please contact your dealer or
our service department.
If the VS P6 is connected with a DMX-signal the display illumination shut off after
30 seconds.
Special functions are assigned to the display lighting:
Varyscan P6
*PAN TIMEOUT
