DMX-Controller
14

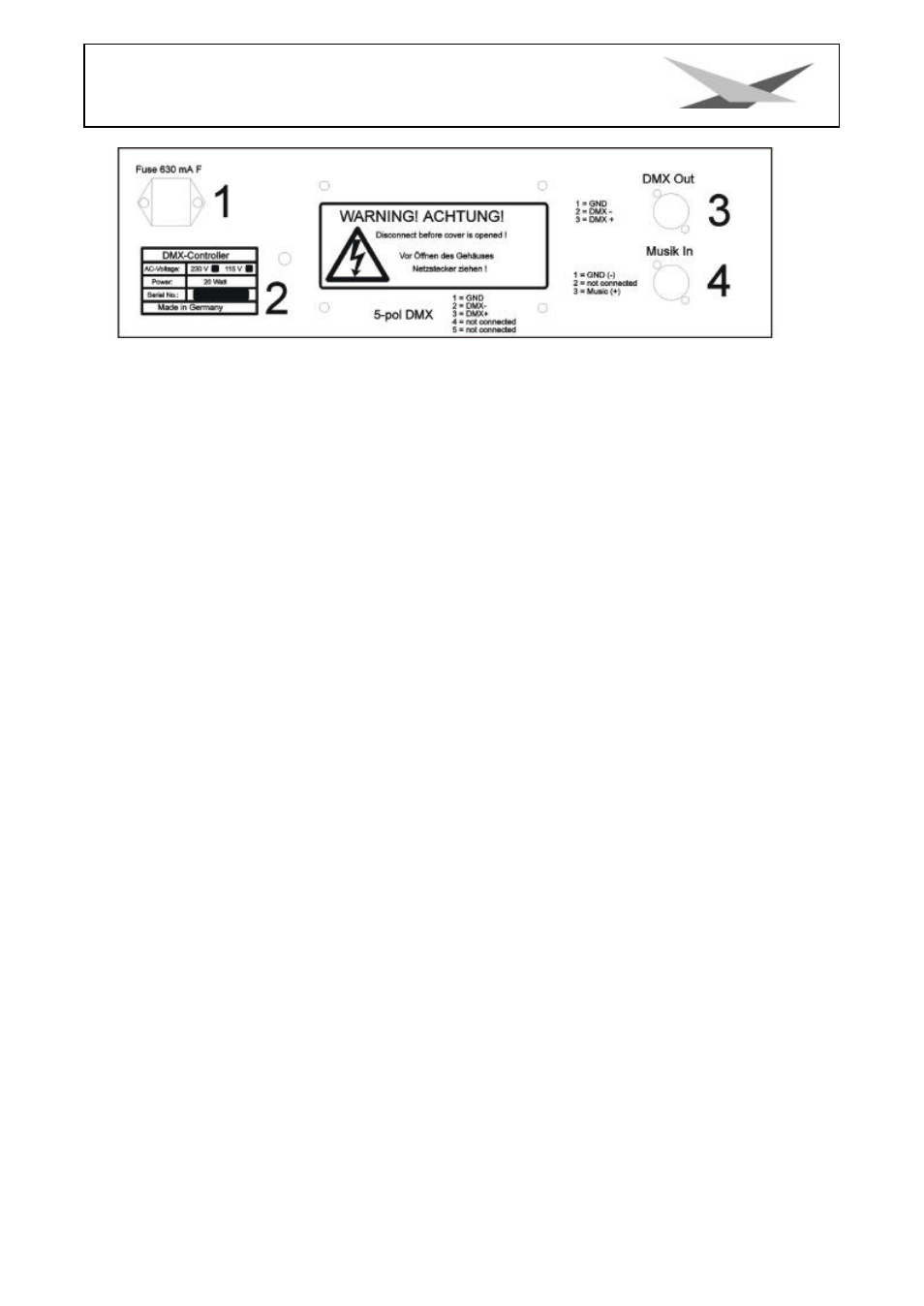

1
Mains-plug 230V 50Hz bzw. 120V 60Hz (see type sign)
Fuse 160mA F
2
Type sign with explanations for tension, power, serial number
3
DMX-OUT
Pin1
Ground
Pin2
DMX -
Pin3
DMX +
5pol
?
3pol
Signal
Pin1
?
Pin1
Ground
Pin2
?
Pin2
DMX-
Pin3
?
Pin3
DMX+
Pin4
free
Pin5
free
4
Music-IN
Pin1
Ground
Pin2
free
Pin3
Signal from mixer or amplifier
ATTENTION:
Do not connect high tension or amplifier-output to the music-input of the Controller.
Connection of moving-lights
The DMX-Controller is suitable for 12 moving-lights which must be have 6 Channels with the following channel
configuration:
Channel 1
X / PAN
Channel 2
Y / TILT
Channel 3
GOBO
Channel 4
FARBE
Channel 5
SHUTTER / DIMMER
Channel 6
IRIS
The DMX-address of the Scanner follows the binar-figure-system and ensues in 6 (channel-) steps:
moving-light no. 1:
DMX-address
"1"
moving-light no. 2:
DMX-address
"7"
moving-light no. 3:
DMX-address
"13"
