INSTALLATION
Necessary
installation tools
• Torx TX20 screwdriver
• Pencil
• Spirit
level
• Wire strippers
•
6 mm masonry drill bit for the
rawlplugs(only if installing on a
concrete wall)
General
The ODS 80 consists of a
mounting bracket and the actual
speaker.

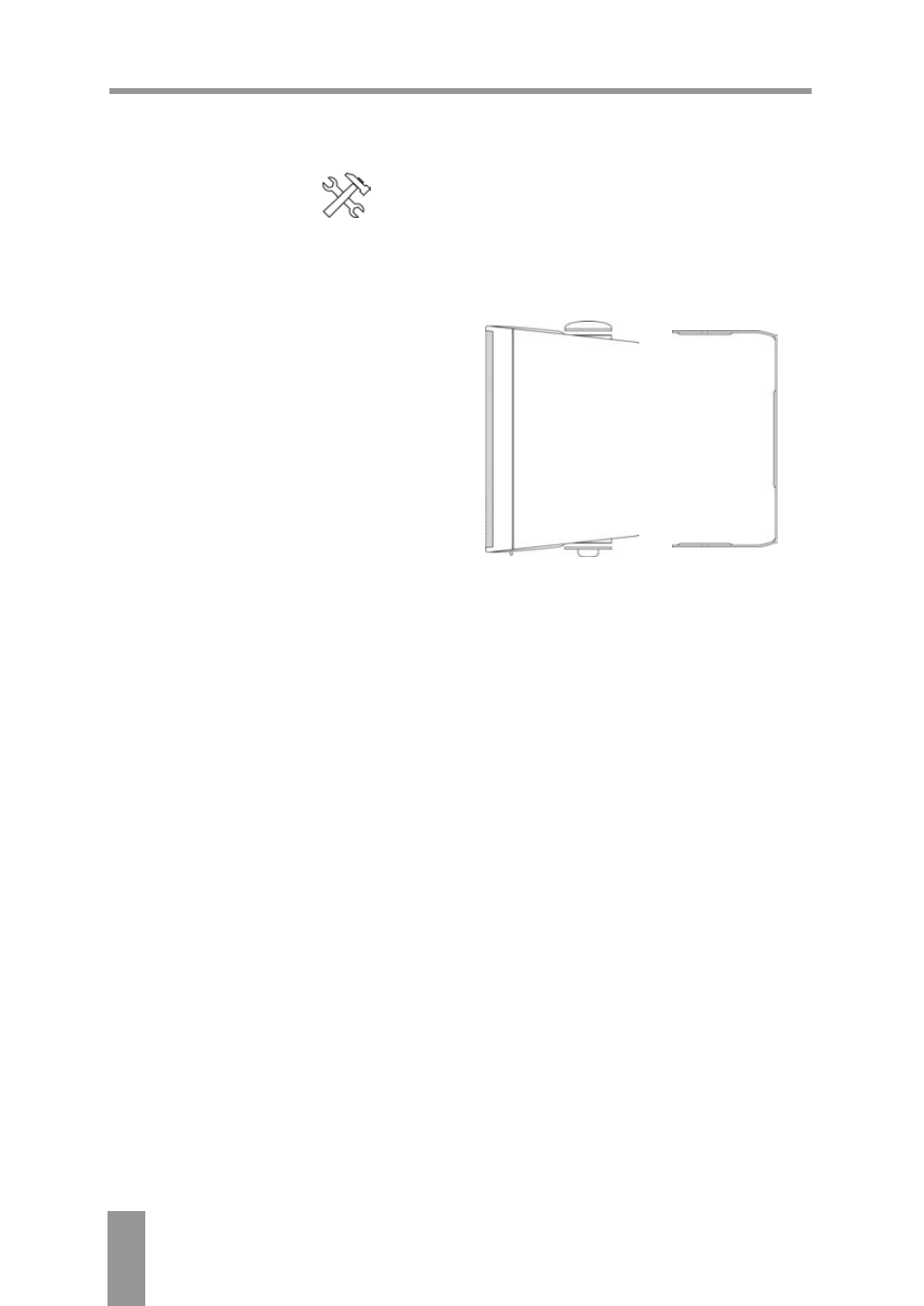

Side view of speaker with bracket
The first part of the installation
instruction (steps 1 - 3), desctibes
fixing the bracket to the wall. The
second part (steps 4 - 6), covers
the installation and alignment of
the speaker.
The individual detailed installation
steps are on the following pages.
