Front and Rear Panel/Remote Control
1. REMOTE CONTROL Sensor: Used to receive the signal from the remote controller.
2. STANDBY button: Switch between standby and operation mode.
3. Mini USB Port with OTG (On-The-Go): allows this box act as a peripheral USB device of a
computer.
4,5,6 USB Port: Connects to external USB devices such as USB flash drive, mobile HDD, mouse,
keyboard etc.
7. DC IN 12V: Connects to external +12V power supply adapter.
8. COAXIAL: Connects to a coaxial socket on your surround sound system.
9. Ethernet LAN RJ45: 10/100M Ethernet interface for local network connection.
10. HDMI Output: Connects to HDTV for HD video input.
11. IN: Used to connect the LNB to receive the signal.
12. OUT: This socket will by-bass the RF signal to another STB.
13. AV Output: Outputs composite video signal (CVBS) and analogue audio L/R signal, only
available if not HDMI-Cable is connected.
14. CARD READER Slot: SD/MMC/MS (up to 32GB) 3 in 1 card slot.
Front and Rear Panel
Rear side

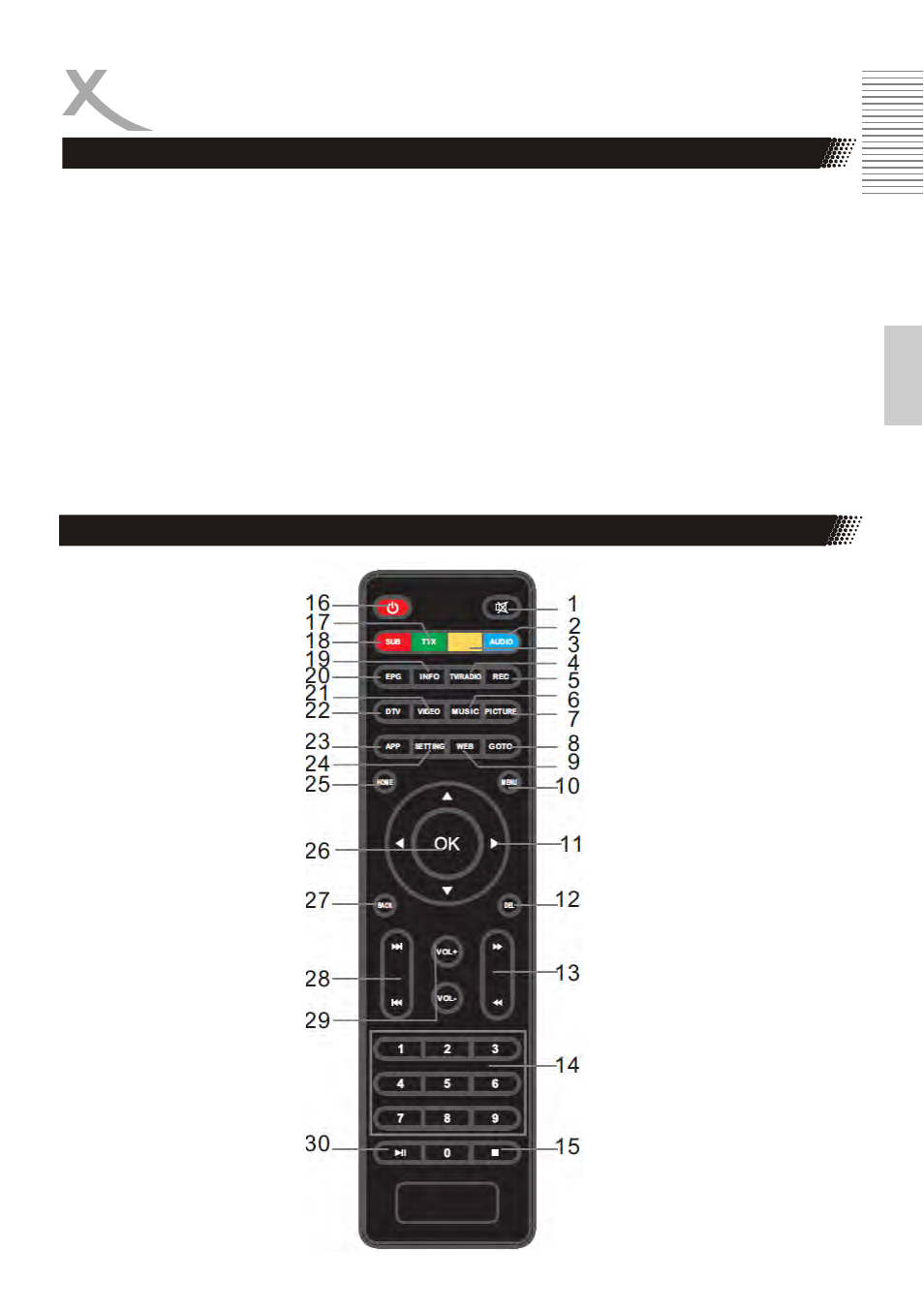

Remote Control
