Introduction
We congratulate you on the purchase of
your new device. You have chosen a
high quality product. The instructions for
use are part of the product. They contain important
information concerning safety, use and disposal.
Before using the product, please familiarise yourself
with all of the safety information and instructions
for use. Only use the unit as described and for the
specified applications. If you pass the product on
to anyone else, please ensure that you also pass
on all the documentation with it.
Q
Proper use
The device is designed to sharpen steel drill bits
according to DIN 338, DIN 340, DIN 345,
DIN 1869 and DIN 1897 (MODEL Type N).
Carbide drill bits must not be milled with this device.
Any other use or modification to the device shall be
considered as improper use and could give rise to
considerable dangers. The manufacturer will not ac-
cept liability for loss or damage arising from improper
use. The device is not intended for commercial use.
Q
Description of parts and features
1
Rotary switch (“STONE” = Sharpening stone)
2
Sharpening stone cover
3
Sharpening stone cover screw
4
ON / OFF switch
5
Sharpening stone
6
Spring
7
Threaded connection
8
Metal washer
9
Sharpening stone holder
10
Ventilation slots
11
Drill guide
Q
Scope of delivery
1 drill sharpening machine PBSG 95 A1
1 carrying case
16 titanium-coated HSS drills (see Fig. E)
2 spare sharpening stones
1 set of operating instructions
Q
Technical data
Dimensions:
128 x 173 x 202 mm
(w x h x d)
Weight:
950 g

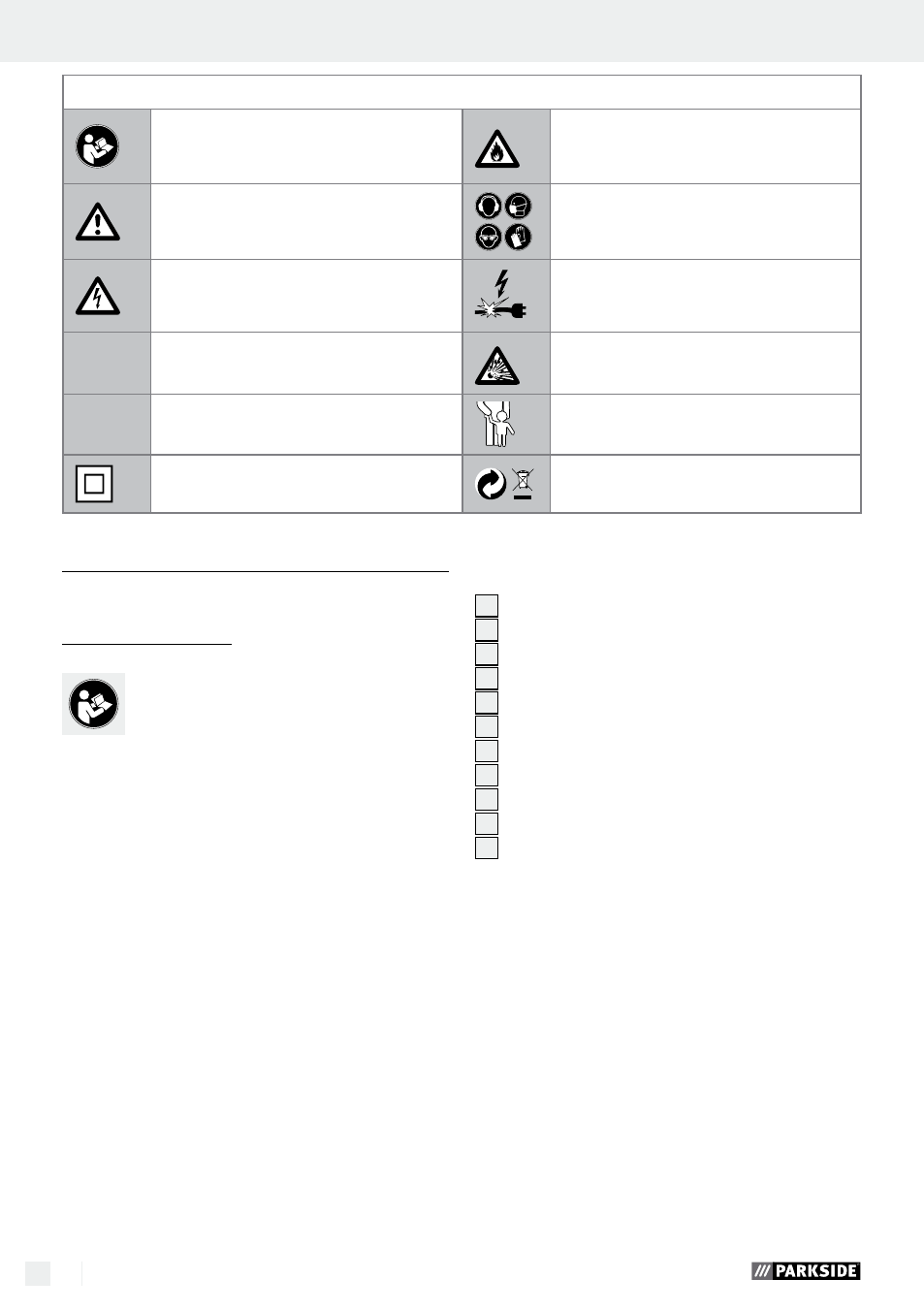

The following pictograms are used in these operating instructions / on the device:
Read instruction manual!
Risk of fire!
Observe caution and safety notes!
Wear hearing protection, dust
protection mask, protective glasses
and protective gloves.
Caution–electric shock!
Danger to life!
Risk of loss of life by electric shock
from damaged mains lead or mains
plug!
V~
Volt (AC)
Risk of explosion!
W
Watts (effective power)
Keep children away from electrical
power tools!
Safety class II
Dispose packaging and appliance in
an environmentally-friendly way!
