Multi-Contact MA076 Benutzerhandbuch
Seite 3
Advanced Contact Technology
www.multi-contact.com
3 / 8
2
3
1
4
CHR OM - VAN ADIUM
Ø2
1
4 5 6
A
3
4
5
6
5

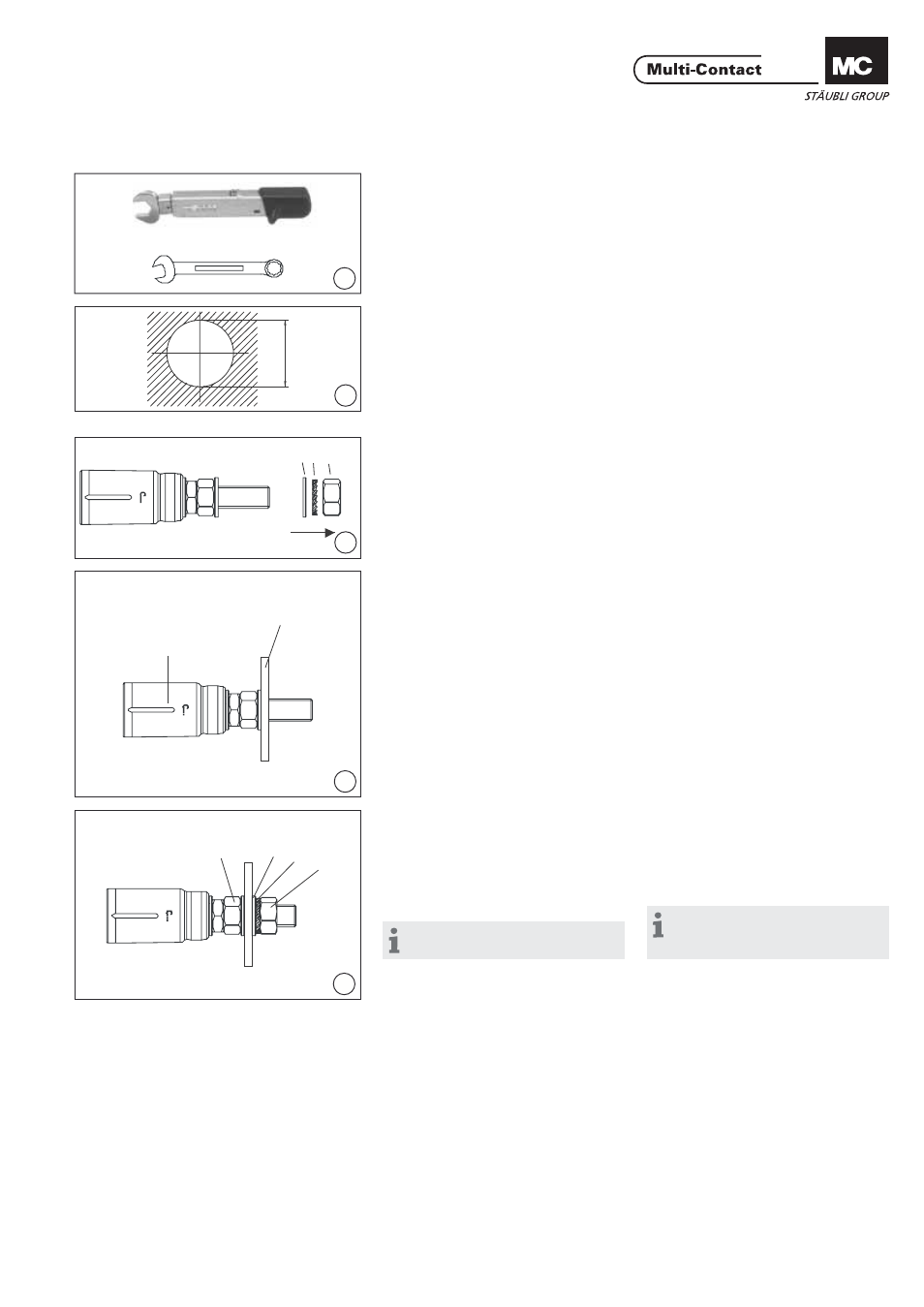

Erforderliches Werkzeug
Tools required
(ill. 1)
1 Drehmomentschlüssel SW30 für
52Nm und ein Gabelschlüssel SW30.
(ill. 1)
1 torque spanner 30 mm A/F for
52Nm and 1 open-end spanner
30 mm A/F.
Montage in Stromschiene
Assembly into busbar
(ill. 2)
Stromschiene gemäss Bohrplan
bohren.
(ill. 2)
Drill busbar according to drilling plan.
Anschluss
Connection
(ill. 3)
Mutter 6, Federscheibe 5 und Unter-
lagscheibe 4 vom Gewinde lösen.
(ill. 3)
Remove nut 6, lock washer 5 and
washer 4 from screw thread.
(ill. 4)
Stecker in Stromschiene A einführen.
Stecker so ausrichten, dass die
Markierung beim Steckvorgang gut
sichtbar ist.
(ill. 4)
Insert plug into busbar A.
Align plug so that the marking is vi-
sible during plugging.
(ill. 5)
Unterlagscheibe 4, Federscheibe
5 und Mutter 6 montieren und mit
Drehmomentschlüssel SW30 anzie-
hen, dabei mit Gabelschlüssel SW30
Mutter 3 kontern.
Anzugsdrehmoment: 52Nm.
Hinweis:
Nicht an der Isolation kontern!
(ill. 5)
Reassemble washer 4, lock washer
5 and nut 6. Tighten nut 6 with the
torque spanner 30 mm A/F and secure
nut 3 with open-end spanner 30 mm
A/F. Tightening torque 52Nm.
Note:
Do not lock-tighten on the insula-
tion!
