Multi-Contact MA260 - Handbuch (Seite 3)

Advanced Contact Technology
www.multi-contact.com 3 / 8
1
2
3
4
5
6
CHROM - VANADIUM
15
7
8

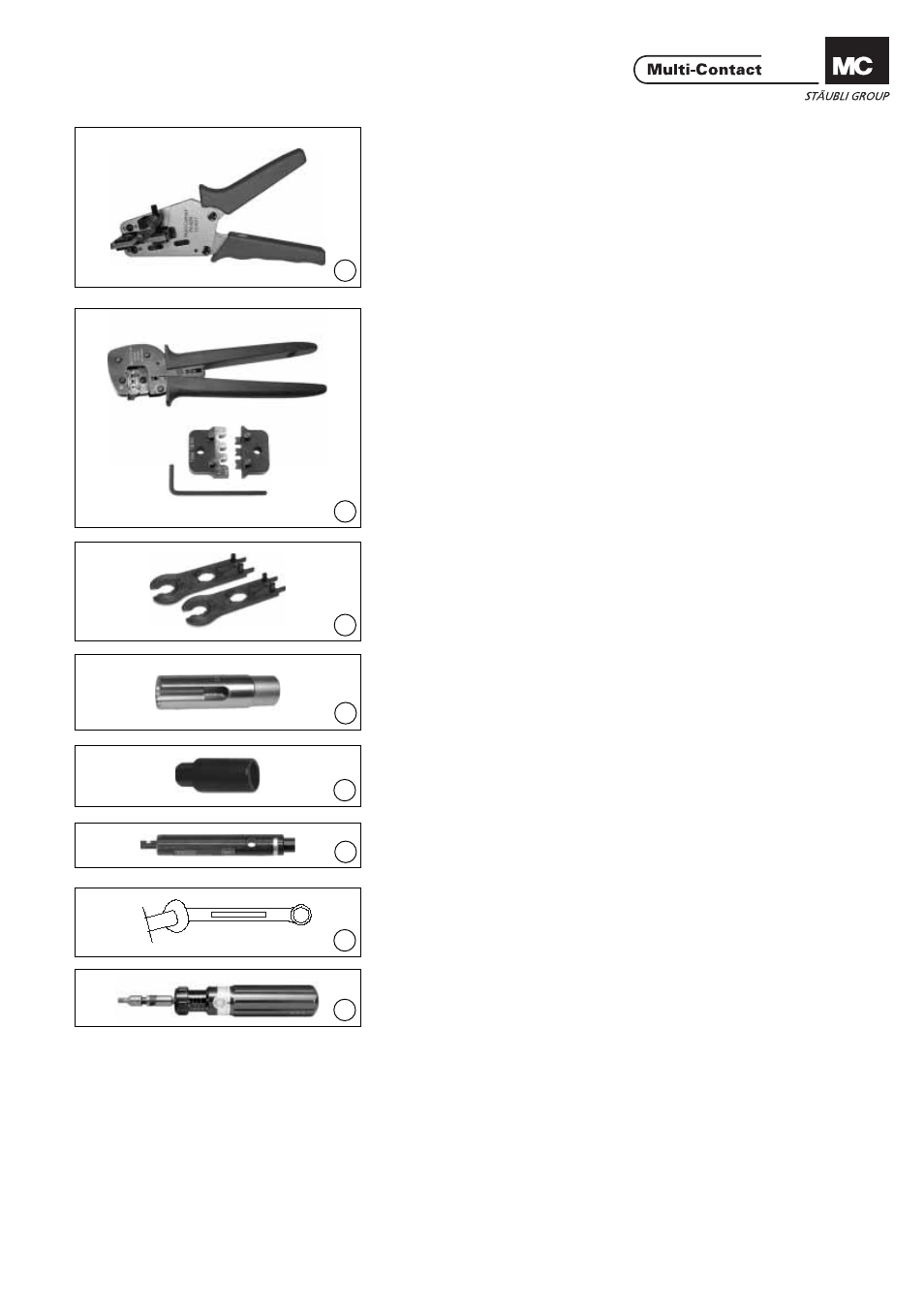

Erforderliches Werkzeug Tools required
(ill. 1)
Abisolierzange PV-AZM... inkl.
eingebauten Abisoliermessern sowie
Sechskantschlüssel SW 2,5.
Leiterquerschnitt:1,5 / 2,5 / 4 / 6 mm²
Typ: PV-AZM-1.5/6
Bestell-Nr.: 32.6027-156 (ill. 1)
Stripping pliers PV-AZM... incl.
built-in
wire stripping blade as well as
hexagonal screwdriver A/F 2,5.
Conductor cross section:
1,5 / 2,5 / 4 / 6 mm²
Type: PV-AZM-1.5/6
Order No.: 32.6027-156
(ill. 2)
Crimpzange MC3 PV-CZM... inkl. Lo-
cator und eingebautem Crimpeinsatz.
Crimpbereich: 2,5 / 4 / 6mm²
(14/12/10 AWG)
Typ: PV-CZM-16100
Bestell-Nr.: 32.6020-16100A
Auswechselbarer Crimpeinsatz inkl.
Sechskant-Schraubendreher SW2,5
Typ: PV-ES-CZM-16100
Bestell-Nr.: 32.6021-16100
(ill. 2)
Crimping tool MC3 PV-CZM... incl.
locator and built-in crimping insert.
Crimping range: 2,5 / 4 / 6mm²
(14/12/10 AWG)
Type: PV-CZM-16100
Order No.: 32.6020-16100A
Interchangeable crimping inserts incl.
hexagonal screwdriver A/F 2,5.
Type: PV-ES-CZM-16100
Order No.: 32.6021-16100
(ill. 3)
PV-MS Montageschlüssel, 1 Set = 2
Stück
Bestell-Nr.: 32.6024 (ill. 3)
Open-end spanner PV-MS
1 Set = 2 pieces
Order No.: 32.6024
(ill. 4)
PV-WZ-AD/GWD Steckschlüssel zum
Anziehen
Bestell-Nr.: 32.6006 (ill. 4)
PV-WZ-AD/GWD socket wrench
insert to tighten
Order No.: 32.6006
(ill. 5)
PV-SSE-AD4 Steckschlüssel zum
Kontern
Bestell-Nr.: 32.6026 (ill. 5)
PV-SSE-AD4 socket wrench insert to
secure
Order No.: 32.6026
(ill. 6)
PV-PST Prüfstift
Bestell-Nr.: 32.6028 (ill. 6)
Test plug PV-PST
Order No.: 32.6028
(ill. 7)
SW15 Gabelschlüssel (ill. 7)
Open-end spanner A/F 15 mm
(ill. 8)
SW12 Drehmomentschlüssel (ill. 8)
Torque screwdriver A/F 12mm
