12
Technical Details
Frequency response:
• 100 % Dry <10 Hz - 400 kHz (-3 dB)
• 100 % Wet <10 Hz - 27 kHz (-3 dB)
THD+N (100 % Dry):
• @ 0 dBu 0.013 %
• @ +10 dBu 0.024 %
THD+N (100 % Wet in Saturation Mode):
• @ 0 dBu Min Drive 0.47 %
• @ 0 dBu Max Drive 35.1 %
Noise floor 20 Hz - 20 kHz (A-weighted):
• 100% Dry -91 dBu
• 100% Wet (depending on Drive and Gain) -81 to -91 dBu
Dynamic range 20 Hz - 22 kHz: 112 dB
Maximum input level: +21 dBu
Maximum output level: +21 dBu
Input impedance: 10 kOhm
Output impedance: 68 Ohm

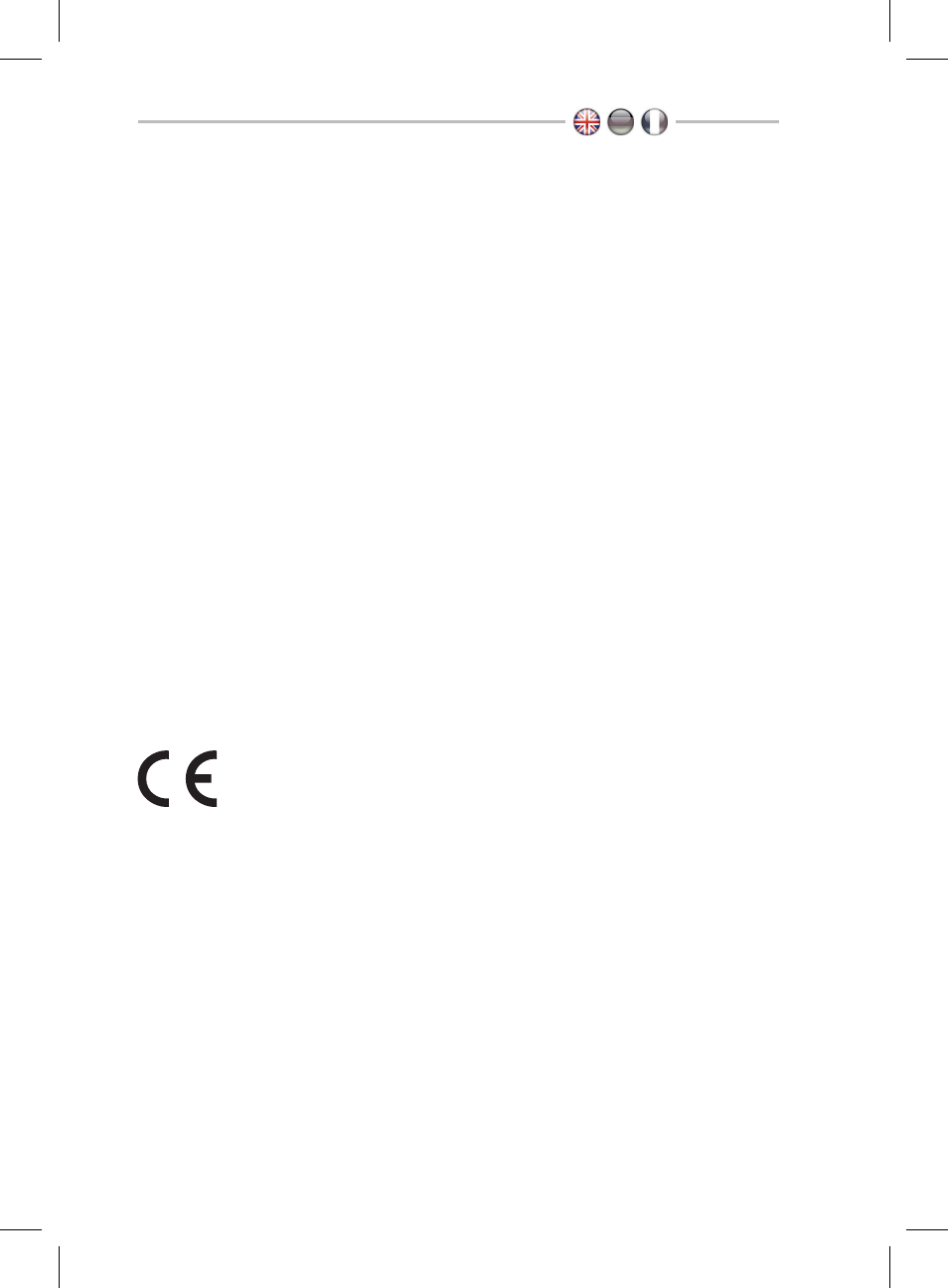

CE Conformity
The conformity of this device to the EU directives is
confirmed by the CE mark on the device.
This declaration becomes invalid by any unapproved modifi-
cation of the device.
Nettetal, 01.11.2015 - Ruben Tilgner
