6

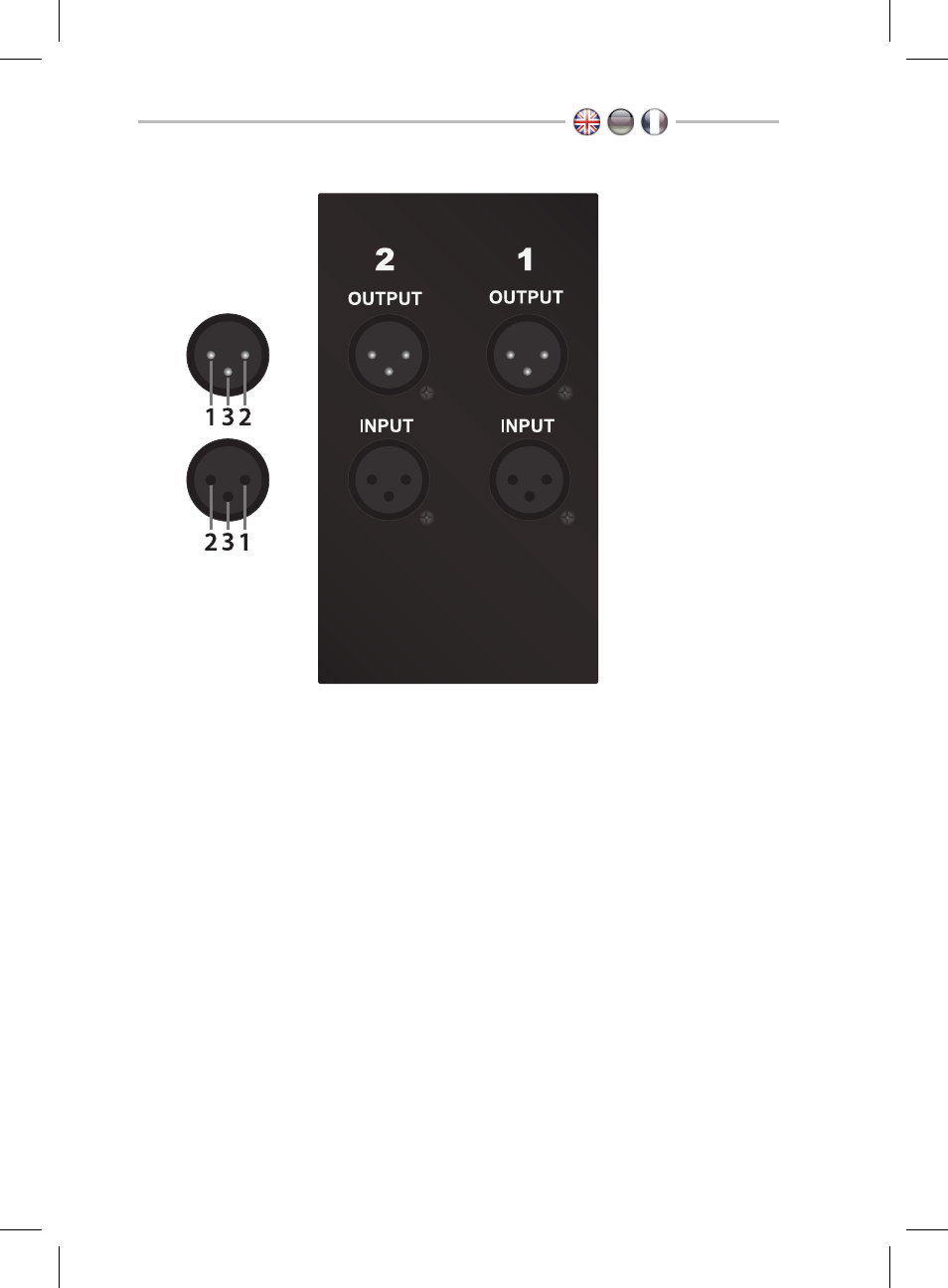

Connectors

Audio outputs (+4 dBu)

Pin assignment balanced:

1

ground

2

hot (+)

3

ground

Pin assignment unbalanced:

1

ground

2

hot (+)

3

idle

Audio inputs (+4 dBu)

Pin assignment balanced:

1

ground

2

hot (+)

3

cold (-)

Pin assignment unbalanced:

1

ground

2

hot (+)

3

ground

Mono operation:

Connect either one or both of the input and

output pairs

1

and

2

for single or dual mono channel use.

Stereo operation:

Connect both inputs and outputs

1

and

2

–

the choice which channel is left and which is right is up to you.
