18

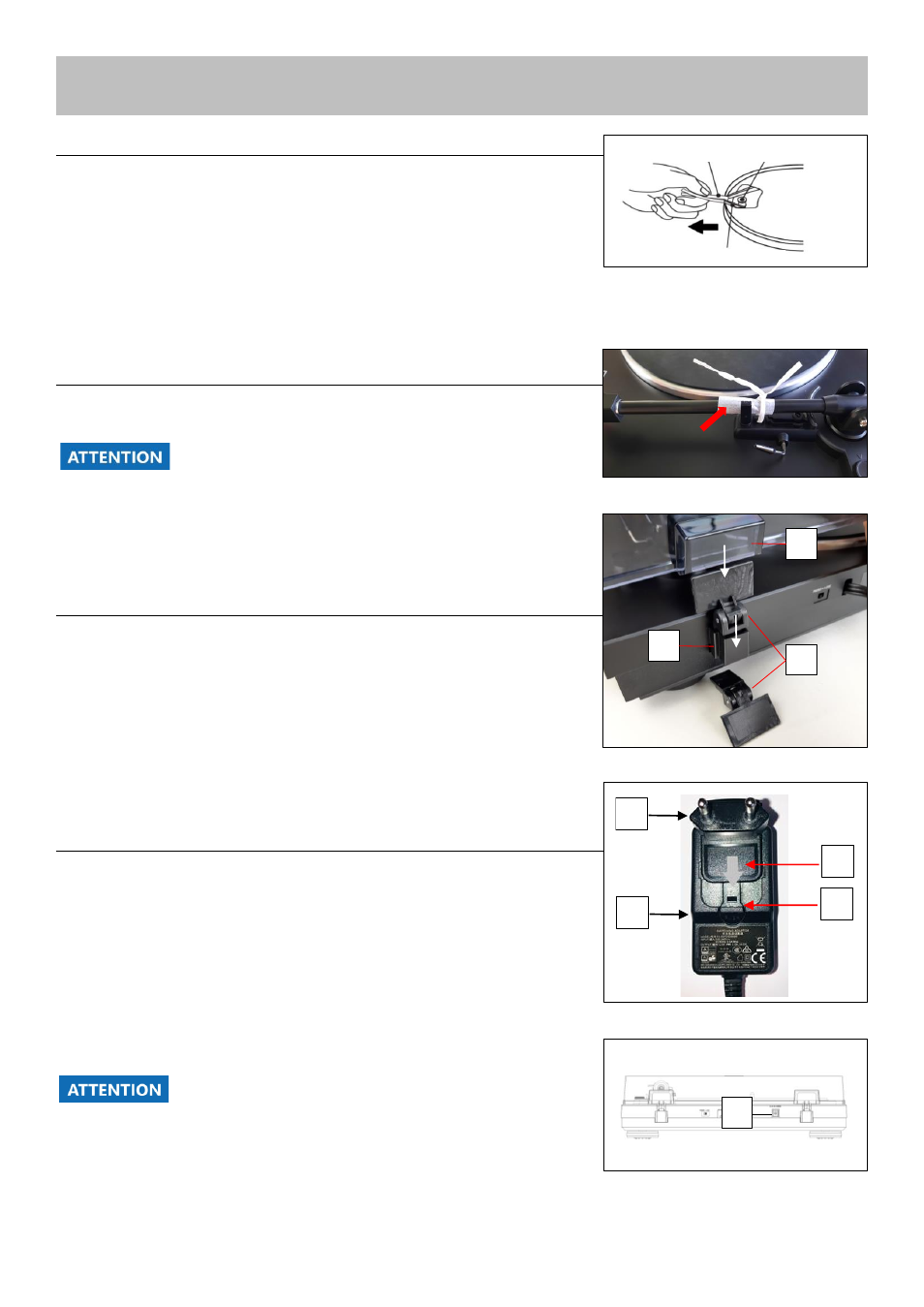

Set Up
Platter and belt installation
The record player is delivered with the drive belt already fitted around the platter flange.
The belt is provided with a red tape so that it can be pulled over the drive motor pulley. (pic. 1)
1. Place the platter on the turntable spindle. Rotate the platter until the cut-out
is positioned over the motor pulley (at about the 8 o'clock position).
2. Using the red tape, pull the drive belt over the motor drive pulley and position
it in the centre of the pulley. Then remove the red tape.
3. Now place the platter mat on the turntable.
Tonearm
The tonearm is secured at the tonearm rest with a coated wire. (pic. 2)
Remove and discard the coated wire and open the safety clip to play the record.
Damage to the stylus
Ensure that the stylus does not come in contact with
the platter mat, or any other part of the turntable.
Dust cover fitting
1. Slot both hinges (2) into the housings (3) in the back of the turntable.
2. Uniformly push the right and left dust cover (1) receptacles onto the hinges
Connection to Power Supply
Different adapter plugs (1) are included with the product. Find the specific adapter
relevant to your country and socket system. Fit it to the power supply (2).
1.
Fit the socket adapter into the power supply and twist in the direction
of the arrow (A).
2. Check that the adapter is locked correctly (B).
3. Plug the power supply into a power socket (C).
Note:
Only use a factory supplied or approved power supply.
Damage to the turntable!
Incorrect voltages can damage the product. Ensure that
the mains voltage is within the stated specification.
Pic. 2
Pic. 3
Pic. 4
Pic. 5
1
2
A
B
Tape Motorpully
Belt
Pic. 1
C
3
2
1
