Operating instructions | SKZ 5-01/-03/-04 | SKZ 6-00 | Power supply units for head-ends
4 2015-07-29 | © AXING AG Switzerland | We reserve the right not to be liable for any changes in design and layout, errors and misprints
1. Product description
1.1. Scope of delivery
1 x power supply unit SKZ 5-01 or SKZ 5-03 or SKZ 5-04 or SKZ 6-00
1 x operating manual

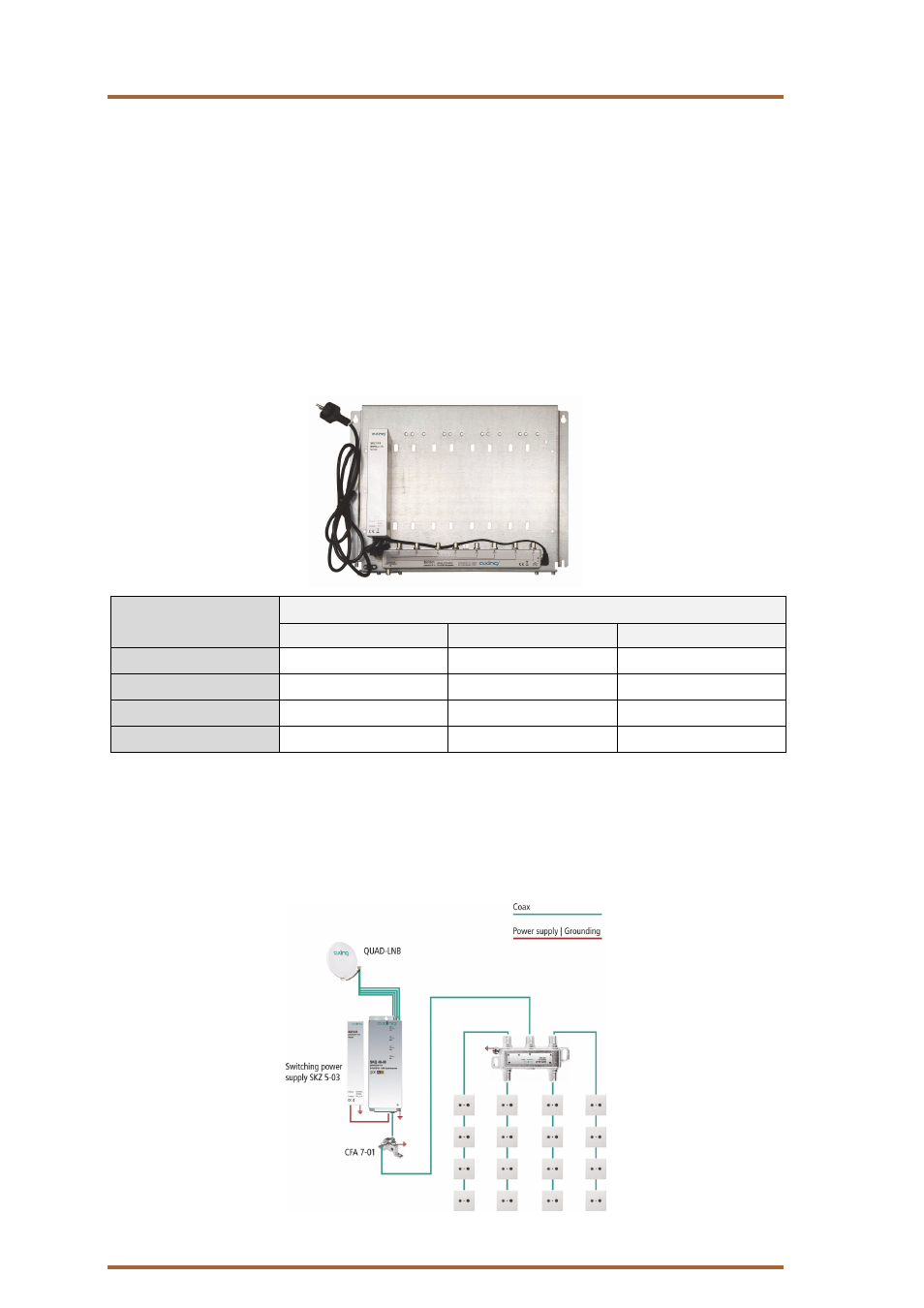

1.2. Field of application
Installation into the head-end base unit
The power supply units of the SKZ 5-01 and SKZ 5-04 type are suitable for installation into the SKS 40-00 and SKS
4-01 base units. The power supply unit of the SK 6-00 type can be installed into the SKS 8-00 base unit.
Power supply unit
Base unit
SKS 4-01 SKS 40-00 SKS 8-00
SKZ 5-01 X X
SKZ 5-03*
SKZ 5-04 X X
SKS 6-00 X
*The SKZ 5-03 power supply unit is not intended for installation into a base unit.
Use as an external device
If necessary, the power supply units may also be operated externally, without installation into a base unit. This
makes it possible to implement tailored and cost-efficient solutions. The head-end cassettes can be used as stand-
alone devices if required.
