Field of application:
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!
Product description SPU 81-00:
The SPU 81-00 is a 8 in 1 switch which allows to switch between eight SAT
antennas. This allows the programs of several satellites to be received via one
SAT receiver.
Product description SPU 81-02:
The SPU 81-02 is a 2 × 8 in 1 switch which allows to switch between eight
SAT antennas. (with Twin-LNB). This makes it possible that two subscrivers
independently receive the programs of several satellites.
Weather protection housing:
All DiSEqC-switches are delivered in a weather protection housing. Therefore
they can be easily and reliable mounted at the aerial mast outside.
Easy to mount with cable straps

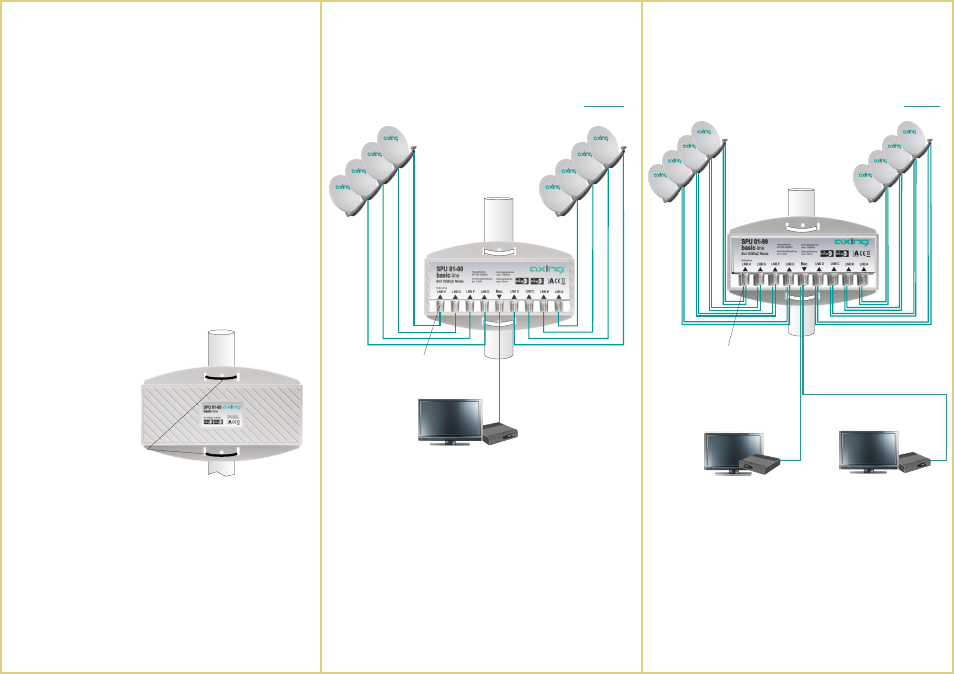

Application example SPU 81-00:
SPU 81-00 as DiSEqC relay 8 in 1 for connection of one receiver to 8
Universal Single LNBs.
Application example SPU 81-02:
SPU 81-02 as DiSEqC relay 2 × 8 in 1 for connection of two receivers
to 8 Universal Twin LNBs.
SPU 81-00
8 × Universal
Single LNB
Coax
SAT Receivers with DiSEqC
1.1 or
necessary 1.2
8 × Universal Twin
LNBs
Input LNB H can be used to
control a DiSEqC motor
Input LNB H can be used to
control a DiSEqC motor
SAT Receivers with DiSEqC 1.1 or 1.2 necessary
Coax
