Field of application:
The devices are suited only for distributing radio and television signals! If the
device is used for other purposes, no warranty is given!

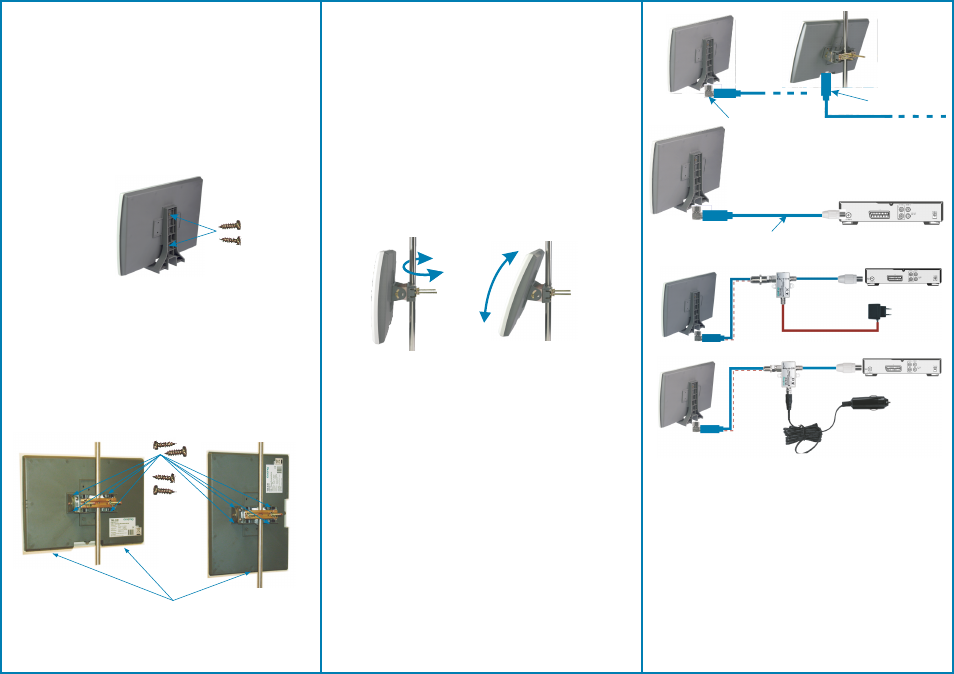

Assembly with indoor stand:
Near to a sender, the use as indoor aerial with table base is sufficient.The
antenna receives horizontally and vertically polarized signals and does not
need to be turned.
Kindly assemble the indoor stand with 2 screws (1), which you will find in the
kit.
Note: It is important to use the enclosed screws and no others, since they
may damage the antenna.
Note: Kindly position the. antenna in such a way, that the slots always
show to the bottom.
How to connect the antenna:
Using the enclosed stand for indoor use kindly take the enclosed F-angle-type
adapter (4) to feed the cable horizontally backwards.
With mast assembly, kindly use the enclosed cable with weather protection
sleeve (5) and assemble it directly to the antenna. Note: It is important to use
the weather protection sleeve in order to prevent water entering into the
antenna.
If you have a receiver with integrated 5V/³80 mA DC power pass you may
directly connect the antenna to the receiver input (6).
When using a DVB-T Receiver without integrated 5V DC power supply-option
one may use either the enclosed power supply with DC power ínserter (7) or
car-adapter (8) to power the antenna. (included with the antenna). Note: You
need in this particular case one i.e. two additional connecting cables. Suited
cables and plugs can be found in the current AXING catalogue or at
www.axing.com.
Mast assembly:
With a lower transmitting power, it is recommended to mount it to an antenna
mast outdoors. Depending on the polarization of the senders, you can mount
the mast clamp so that the antenna can be fixed in horizontal or vertical
position on the mast. Consult the information of the sender network operators
for the sender polarization.
Assemble the rear-sided brackets with 4 screws directly to the antenna
(2 or 3). Note: It is important to use the enclosed screws and no others, since
they may damage the antenna. Please fix the antenna to the mast.
Note: The mast must be grounded in conformity with the VDE regulations
(observe EN 60728-11).
Positioning:
Depending on the signal strength and signal direction you must direct the
antenna towards the transmitter (9).
