E4 loudspeaker
Nominal impedance
16 ohms
Power handling capacity (RMS/peak 10 ms)
60/400 W
Nominal dispersion angle (hor. x vert.)
100° conical
Components
4“ driver with neodymium magnet
0.75” dome tweeter, coaxially mounted
Passive crossover network
Connections
2 x NL4
1 x two pole push terminal (PT - up to 6 mm
2
/AWG 10)
Pin assignments
NL4: 1+ / 1–
Push terminal: Rot: (+) / Schwarz: (–)
Weight
1.1 kg (2.4 lb)
E5 system data
Frequency response (–5 dB standard mode)
85 Hz - 20 kHz
Frequency response (–5 dB CUT mode)
130 Hz - 20 kHz
Max. sound pressure (1 m, free field) with D6
116 dB
Max. sound pressure (1 m, free field) with D12
117 dB
(SPLmax peak, Test-Signal Rosa Rauschen mit Crest-Faktor 4)
Input level (100 dB-SPL/1 m)
–6 dBu
E5 loudspeaker
Nominal impedance
16 ohms
Power handling capacity (RMS/peak 10 ms)
60/400 W
Nominal dispersion angle (hor. x vert.)
100° conical
Components
5“ driver with ferrite magnet
1” dome tweeter, coaxially mounted
Passive crossover network
Connections
2 x NL4
1 x two pole push terminal (PT - up to 6 mm
2
/AWG 10)
Pin assignments
NL4: 1+ / 1–
Push terminal: Rot: (+) / Schwarz: (–)
Weight
2.7 kg (6.0 lb)

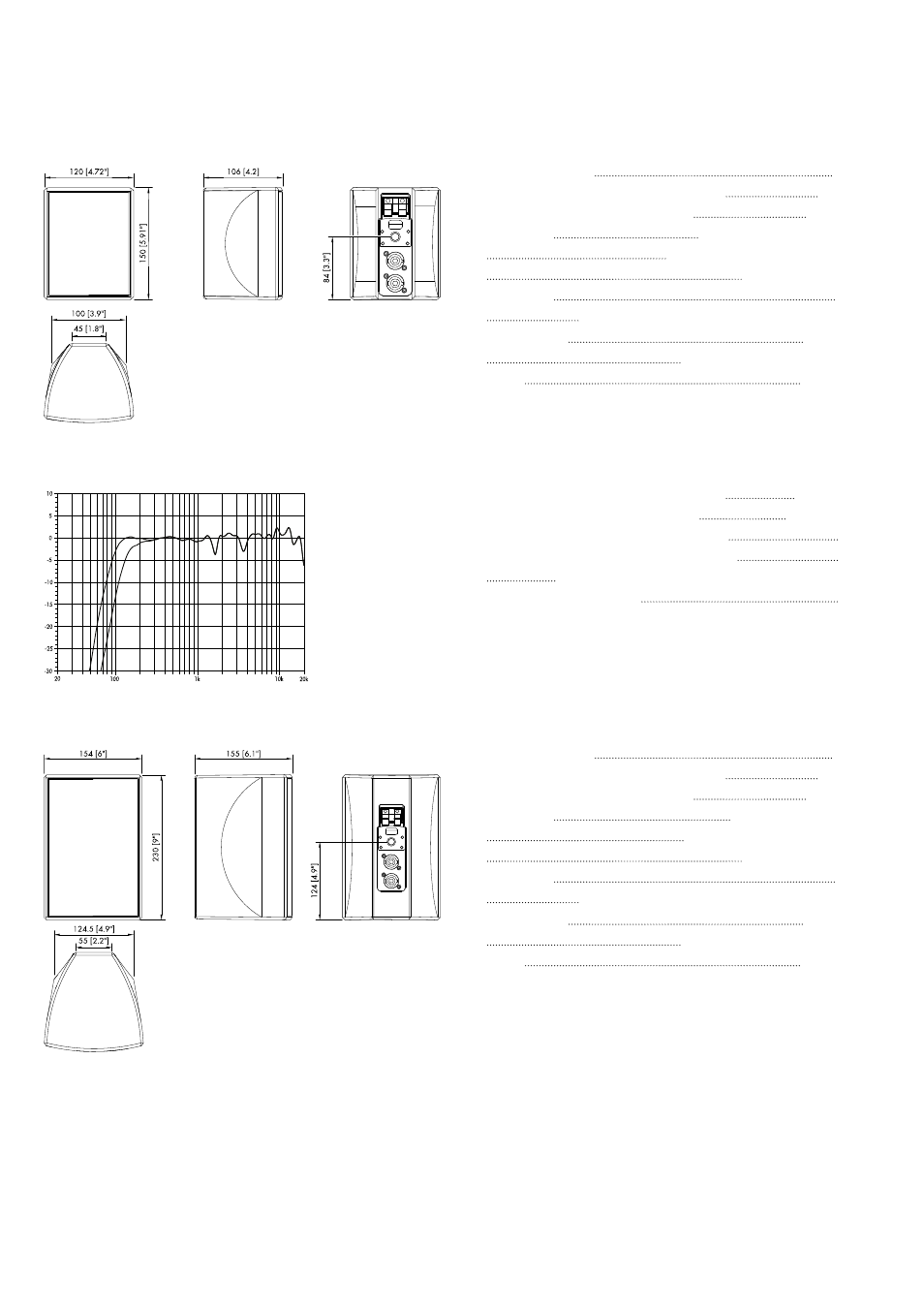

Abb. 10: E4 cabinet dimensions in mm [inch]
Abb. 11: E5 frequency response, standard and CUT modes
Abb. 12: E5 cabinet dimensions in mm [inch]
