5. Service

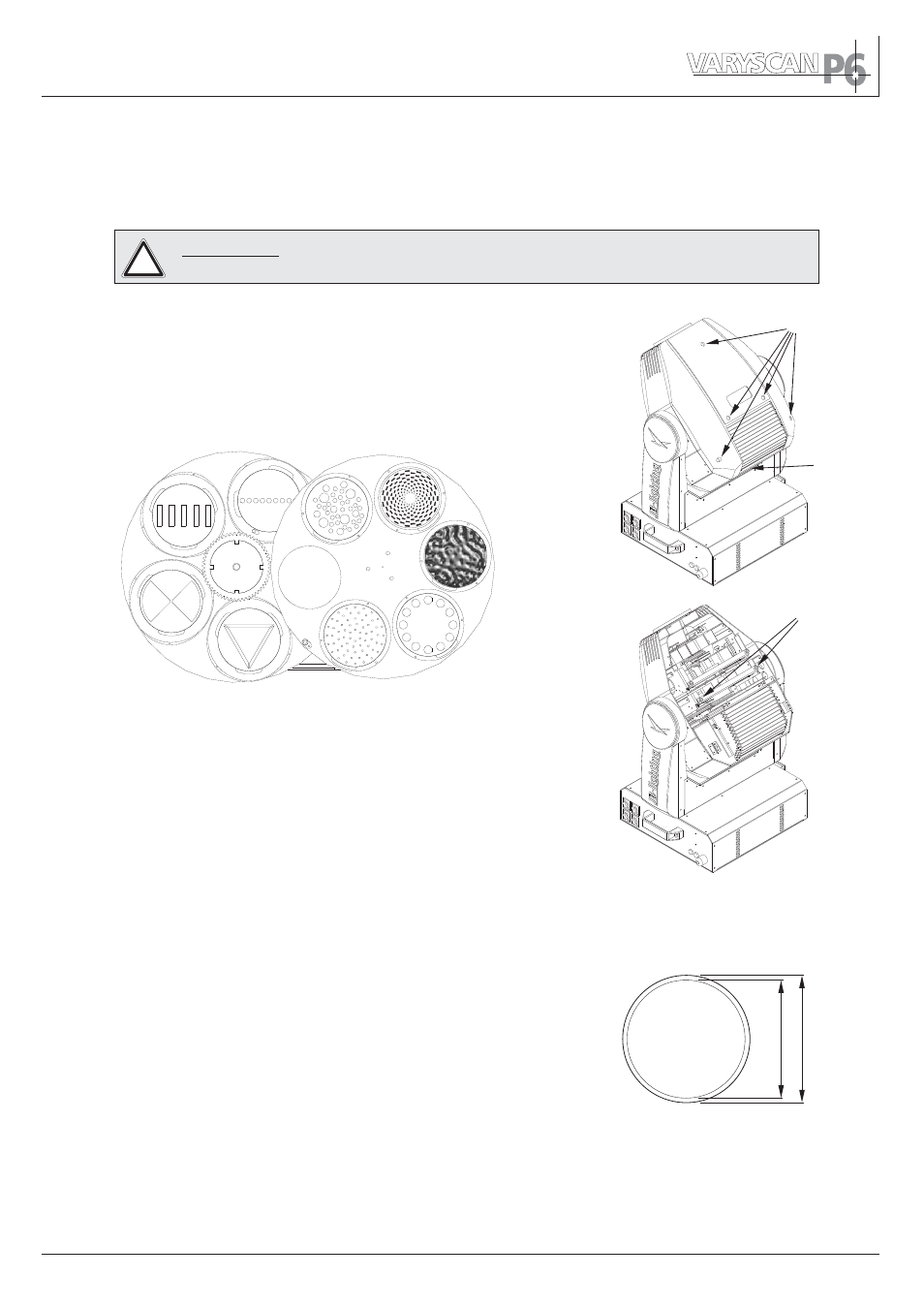

5.1 Gobo change
The gobos are fixed by means of a spring. To change
gobo remove spring and gobo and insert the new gobo.
Readjust the spring to fix the gobo. Make sure that the
blackned side of the metal gobo is positioned opposide
the lamp (in direction of the objective). If you insert glass
gobos make sure that the coated side is positionend in
opposide direction to the lamp.
If you want to order custom made gobos, have a look at the
technical diagram.
Image diameter: 48mm
Diameter: 51,8mm (+0/-0,2mm)
Position head in horizontal position. Hinge no. 1 must be on
the upper side of the head. Turn screws no. 5 1/2 turn left
and remove plastic lid.
Loosen knurled head screw no. 3 and remove the gobo
module.
48mm
51,8mm
1
2
3
WARNING: Disconnect fixture from mains and allow
hot lamp to cool down for at least 30 minutes!
!
