ENGLISH
3. This rotary switch is used to select the signal source
LINE = Analog stereo signal input
USB = Digital input for connecting the speaker up to a PC
BT = Bluetooth function. Sound reproduction will commence if a
pairing with a transmitter already exists. The pairing will
remain set up even if the inputs are changed, provided
that the transmitter remains in range of the RONDO and it
has not been switched off.

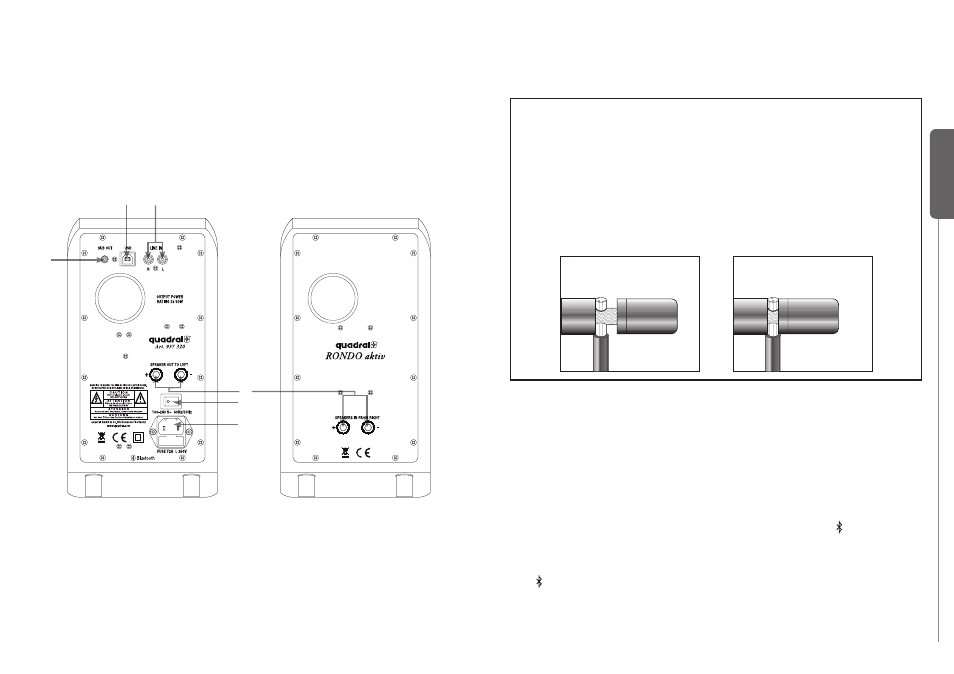

Connections on the back of the unit
1 SUB OUT: Active subwoofer socket.
2 USB: Digital input
3 LINE IN: Analog stereo inputs
4 Speaker connection terminals : Terminals for linking to other speakers.
5 Mains switch: Disconnects the unit from the mains power supply.
6 Mains power supply socket: For power supply cable.
Note:
A high-pass filter will be activated if you connect up an external subwoofer to the Sub
Out socket (1) and this will relive your RONDO active speaker in the frequency range
below 100 Hz.
Installing
1. Check that the unit is switched off.
2. Use the cables supplied by us to connect up the active and passive speakers.
Screw terminals
For connection, the speakers are provided with colour-coded screw terminals on
the back of the cabinet. Loosen the screw terminals and feed the stripped end
of the cable into the hole that is now free. The two cords of speaker cable have
different colouring or shape for recognition. Connect the “+” cord to the red,
positive terminal – the remaining cord to the black terminal. Tighten the screws
hand-tight. To ensure correct polarity, check that the cable connected to the red “+”
terminal of the speaker is also the cable that is connected to the red “+” terminal
of the amplifier and that the other cable is connected to the black “-“ terminals of
both the speaker and amplifier.
3. Use the mains cable that we have provided to connect up the unit to the mains power
supply.
4. Now connect up all of your other devices (PC, MP3 player, etc.)
5. Use the mains switch at the back of the unit to switch the unit on.
6. Press the ON / OFF control (1) on the front of the unit first and then use the rotary
switch (3) to select the source that you want to use.
7. Bluetooth connection
8. The LED on the front panel will start to flash rhythmically if the BT input is selected (2x
on/pause/2x on). The link will be established automatically if the source has been
linked up to the RONDO active speaker previously and the green display LED will be
permanently lit.
9. Press the control (1) on the front panel once if you want to establish a new link with
a unit. The display LED will then flash rapidly and your RONDO active speaker will
send out a pairing signal to establish the link.
10. “quadral RONDO” will now be displayed on your Bluetooth device’s display and the
link will be permanently established after you have confirmed the link to this unit and
the green display LED on your RONDO will be continuously lit.
1
2 3
4
5
6
Use only with a 250V fuse Employer uniqueme nt avec un fusible de 250V
