33

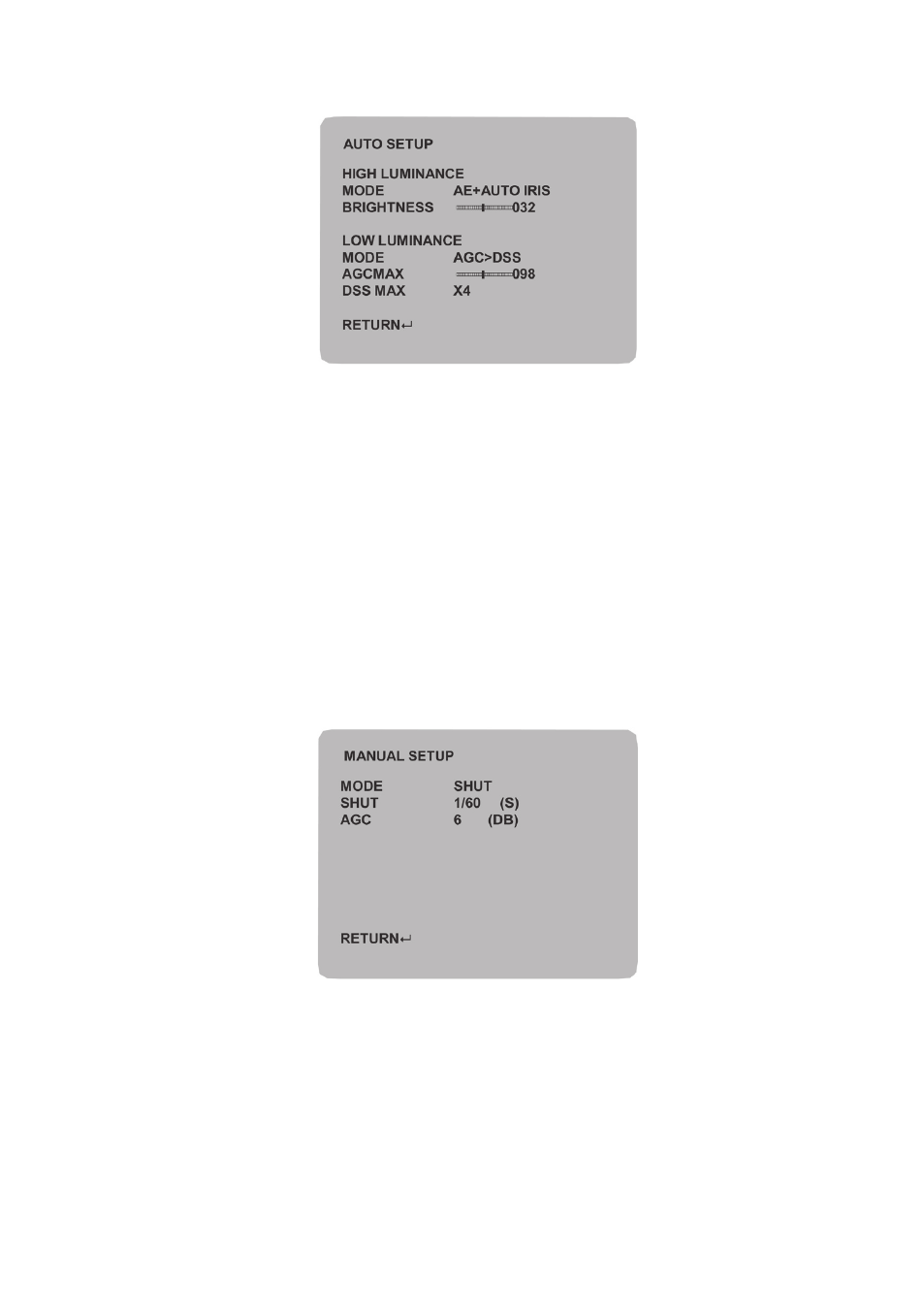

HIGH LUMINANCE
MODE: AE+AUTO IRIS / ME+AUTO IRIS Sets level of operation for using Shutter or just Lens Iris to
adjust high level exposure
BRIGHTNESS: 000-255
Brightness level of operating mode as set above. Default setting is 128.
Settings available only when using DC Lens.
LOW LUMINANCE
MODE: AGC / DSS / AGC –> DSS / AGC-DSS-AGC / OFF
AGCMAX: 000-255
Brightness level of operating mode as set above. Default setting is 098.
DSS MAX: X1-512
• AUTO
• MANUAL
MODE:
SHUT / DSS
Lets you combination of exposure modes. Shutter, Slow Shutter, WDR and Shutter combined
SHUT: Shut can left you specify shutter speeds in xx / second
1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Default setting is 1/50.
AGC: Set a fixed gain value for the AGC; 6, 12, 18, 24, 30, 36, 42, 44.8 dB
SHUT: When MODE is set to SLOW
The shut speed can be 2, 4, 8, 16, 32, 64, 128, 256. Default setting is 2.
