9

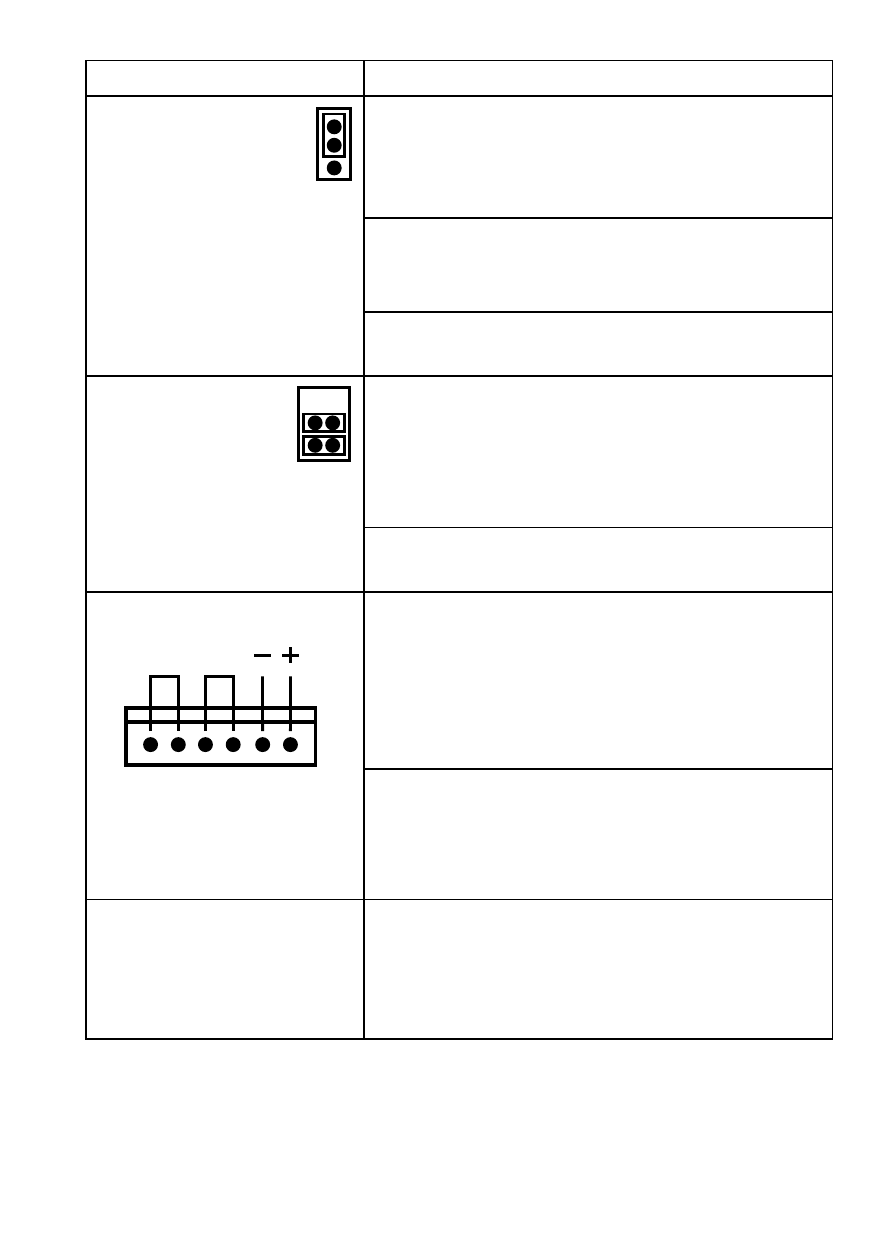

Options
Description
4. Alarm control, Light
control or Recording
control (N.O or N.C)
(3 pins: Top, Center,
Bottom)
A. Top + Center w/black cap: Operate with „VR”
to adjust time. (To set the relay output of the
Light control or Recording control, the time is
selected by individual preference or application.
B. Center + Bottom w/black jumper: Relay output
can be set for Security control panel for only
seconds.
Note: N.C./N.O. relay output current:
1A 125VAC, 2A 30VDC.
5. Pulse Control
Once or twice
4 pins: PAIRS w/jumper
connector
Position : Set to „ONCE” for instant reaction when
PIR detects someone: and either the
„alarm or Security control panel” or
„Recording control” will be triggered
immediately.
Position : Set to „Twice” when PIR detects
someone times within 5 seconds.
6. Output Terminals
4 Hour/Anti-Tamper
N.C.: Normally Closed
A. For connection to: Security panel or
Light control CCTV
...etc.
B. With anti-tamper function for 4 hours.
N.O.: Normally Open Contacts
Note: Relay output current:
1A 125VAC, 2A 24VDC
0.5A 230VAC, 2A 24VDC
7. Power: VDC
Standby Current: 3mA,
Working Current: 8mA
Caution:
The PIR is triggered by body movement,
excluding fixed objects, however, do not place
in direct sunlight or reflected sunlight.
J4
N.C. N.O.
J
JP
