FRONT & REAR PANELS
Page
8 / 12
Laney
LA20C

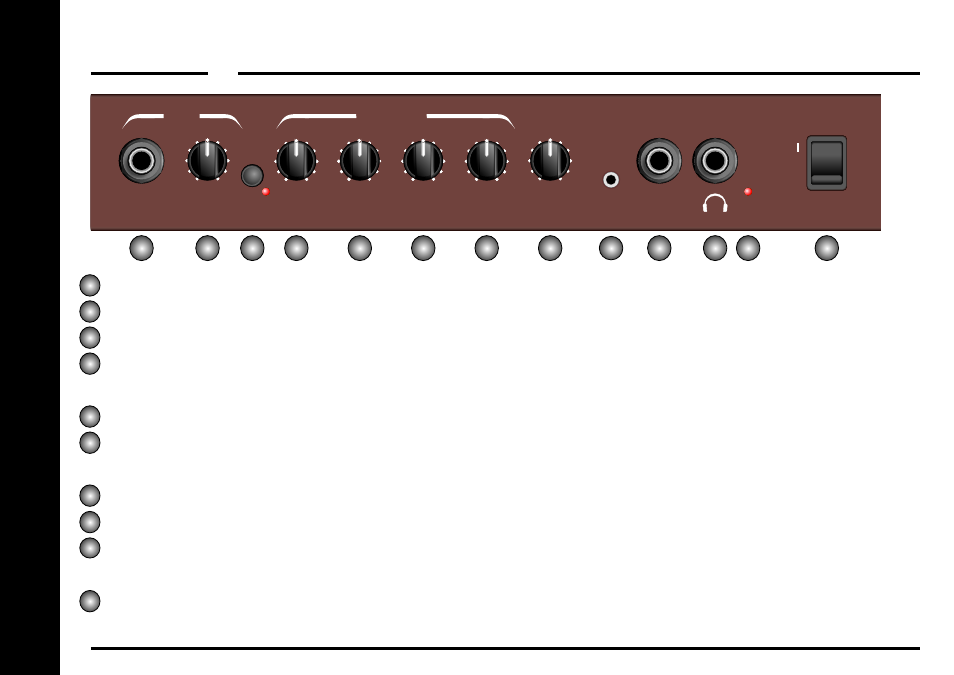

INSTRUMENT: Jack input for Instrument, connect your guitar via this socket.
VOLUME: Controls the overall listening level of the amplifier.
CHORUS: Enables the onboard chorus, indicated by the LED.
LO: Active LO control allowing boost and cut of the low-frequency response of the instrument connected. To
much boost may cause feedback.
FREQUENCY: Boost or cut the LO-MID frequencies between 100Hz to 1KHz
MID: Active MID control allowing boost and cut of the mid-frequency response of the instrument connected.
With many guitars a certain amount of Mid cut gives a more pleasing sound.
HI: Active HI control allowing boost or cut of the high frequency response of the instrument connected.
REVERB: Controls the level of the springline reverb applied to the instrument connected.
AUX IN: Fancy playing along to a backing track? Connect your CD/MP3 player here. Use the volume control
on your CD/MP3 player to set the volume level of the signal. The amplifier controls the instrument volume level.
D.I. OUT: This socket provides a balanced output for direct injection of the amplifier signal into a mixing desk
or additional power amplifier.
