8 PHKS 1350 A1
GB
IE
CY
WARNING!
► The arrow on the saw blade must corre-
spond to the arrow showing the direction of
rotation (running direction shown on the
device).
■ Ensure that the saw blade is suitable for the
rotational speed of the tool.
Mounting/setting the guide fence
♦ Loosen the wing screw and insert the guide
fence into the guide fence slot .
♦ Set the desired cut width with the help of the
scale on the guide fence and the marking
arrow in the base plate (see also Fig. B).
0 45 45

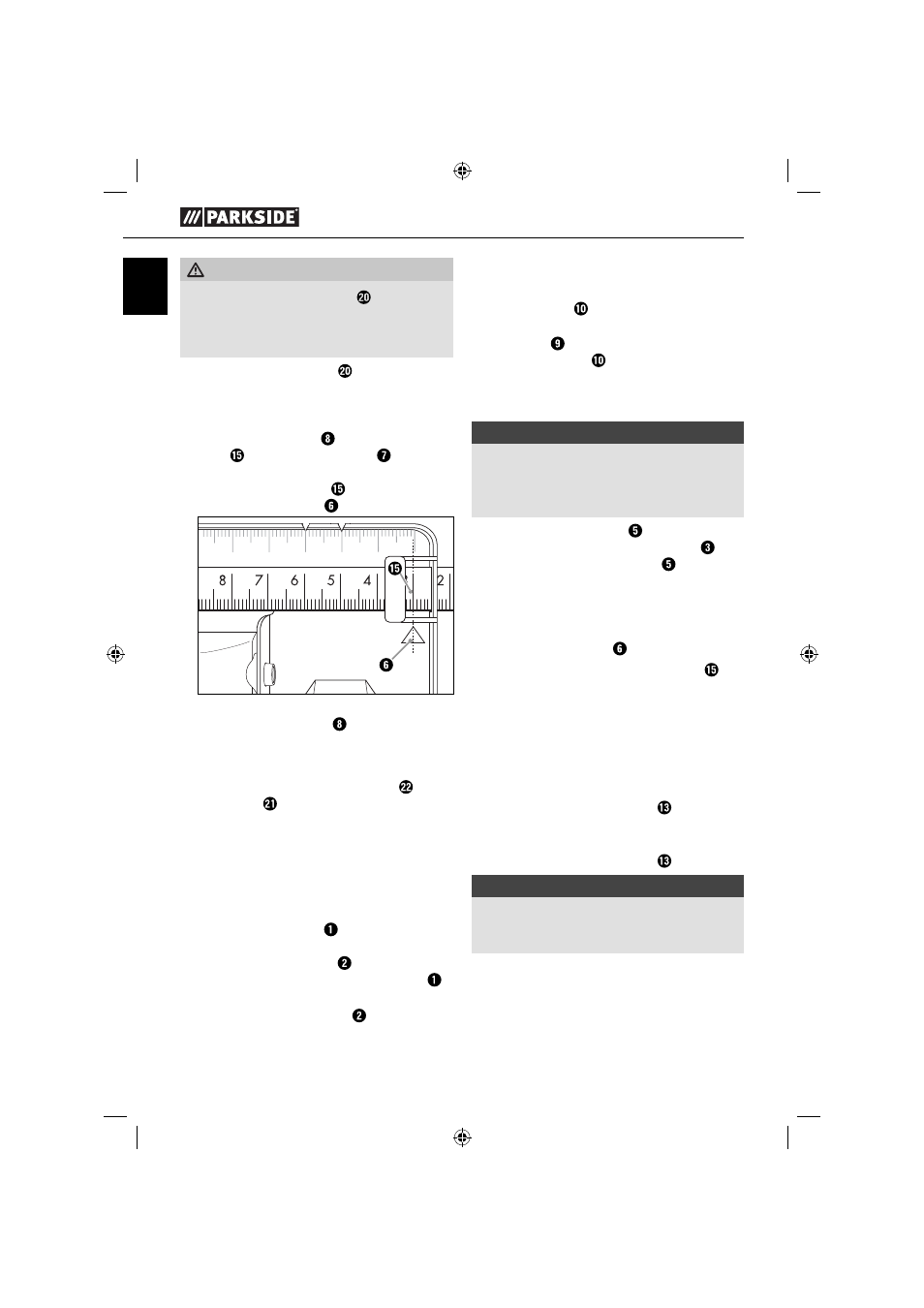

Fig. B: Cutting width 3 cm
♦ Retighten the wing screw .
Connecting the sawdust extraction
appliance
♦ Attach the adapter for dust extraction to the
chip ejector .
♦ Connect an approved dust and chip extraction
device.
Operation
Switching on and off
Switching on:
♦ Push the safety lock-out to the left or right
and keep it pressed.
♦ Press the ON/OFF switch . Once the saw is
running you can release the safety lock-out .
Switching off :
♦ Release the ON/OFF switch .
Setting the cutting angle
You can select the cutting angle with the help of the
cutting angle scale .
■ Release the wing screw on the cutting angle
preselector , set the desired angle on the
cutting angle scale and then re-tighten the
wing screw.
Setting the cutting depth
NOTE
► We generally recommend setting the cutting
depth to approx. 3 mm more than the thickness
of the material. This ensures that you achieve
a clean cut.
♦ Release the locking screw , set the desired
cutting depth on the cutting depth scale and
then re-tighten the locking screw .
Working with the circular saw
1. Switch on the device – as described in "Switching
on and off " – and then place it with the front
edge of the base plate on the material.
2. Align the machine using the guide fence or
by using a marked line.
3. Hold the machine in both hands using the
handles and saw by exerting an even pressure.
Switching the laser on and off
Switching on:
♦ Press the ON/OFF switch laser .
Switching off :
♦ Press the ON/OFF switch laser .
NOTE
► If the batteries are spent, replace them with
two new 1.5 V alkaline button cells (type
AG 13/LR 44, e.g. GPA 76) .
