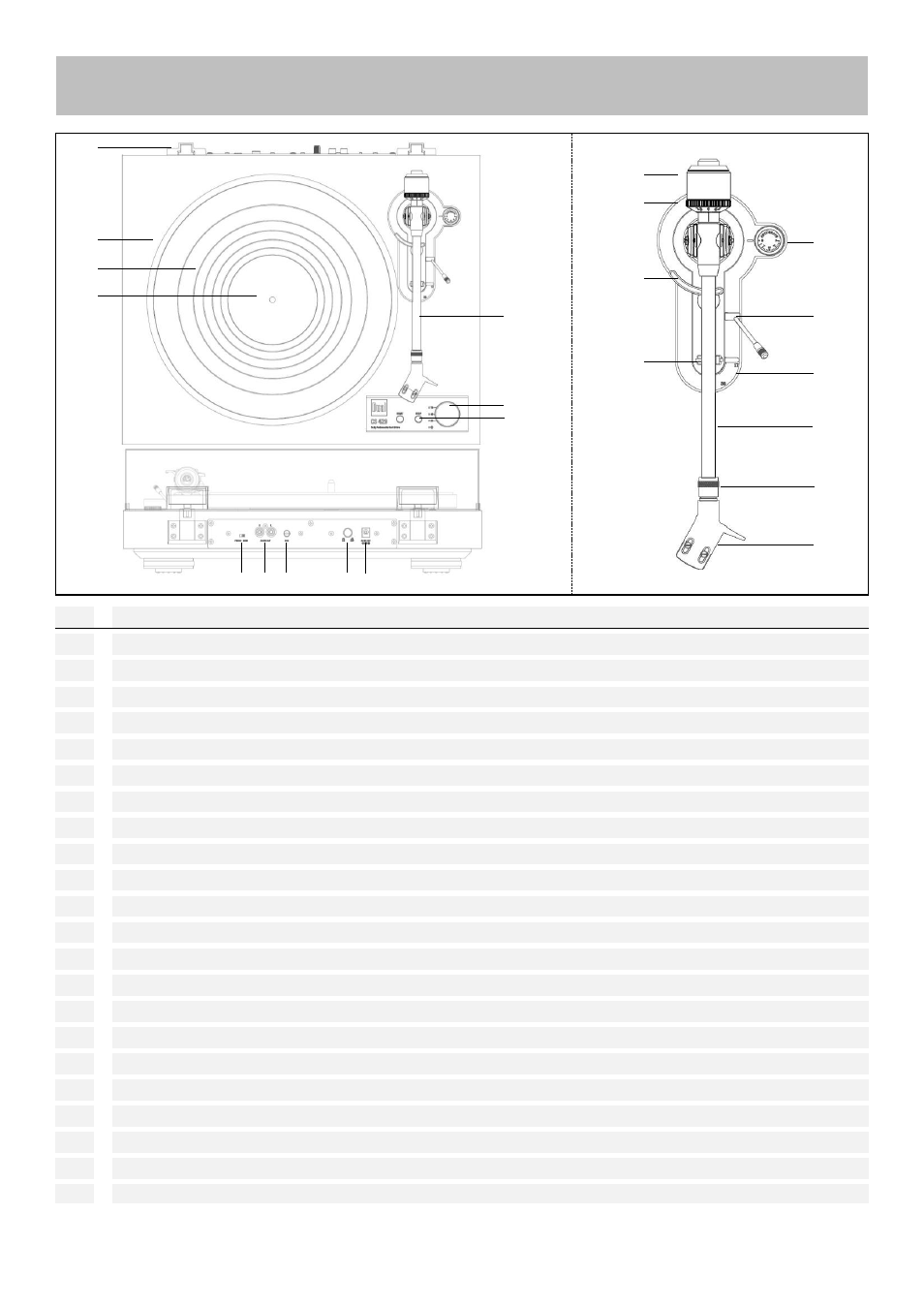

Product overview
Nr Description
1 Dust cover hinges (2×)
2 Platter
3 Platter mat
4 Platter bearing
5 PHONO / LINE Switch Phono-preamp on-/off
6 RCA-Audio-Output red - right channel, white - left channel
7 GND: Ground connection
8 Power switch ON / OFF
9 DC IN: 12 V-Input for Power supply
10 Start / Stop buttons
11 Speed selector 33, 45, 78
12 Tonearm
13 Counterweight
14 Tracking force dial
15 Tonearm lift
16 Tonearm rest with safety fasterner
17 Anti-Skating-Adjustment
18 Tonearm lift lever
19 Lever record size 17, 30
20 Tonearm
21 Union nut
22 Headshell
5 6 7
15
9
14
13
12
8
16
17
18
20
21
22
11
1
2
3
4
10
19
