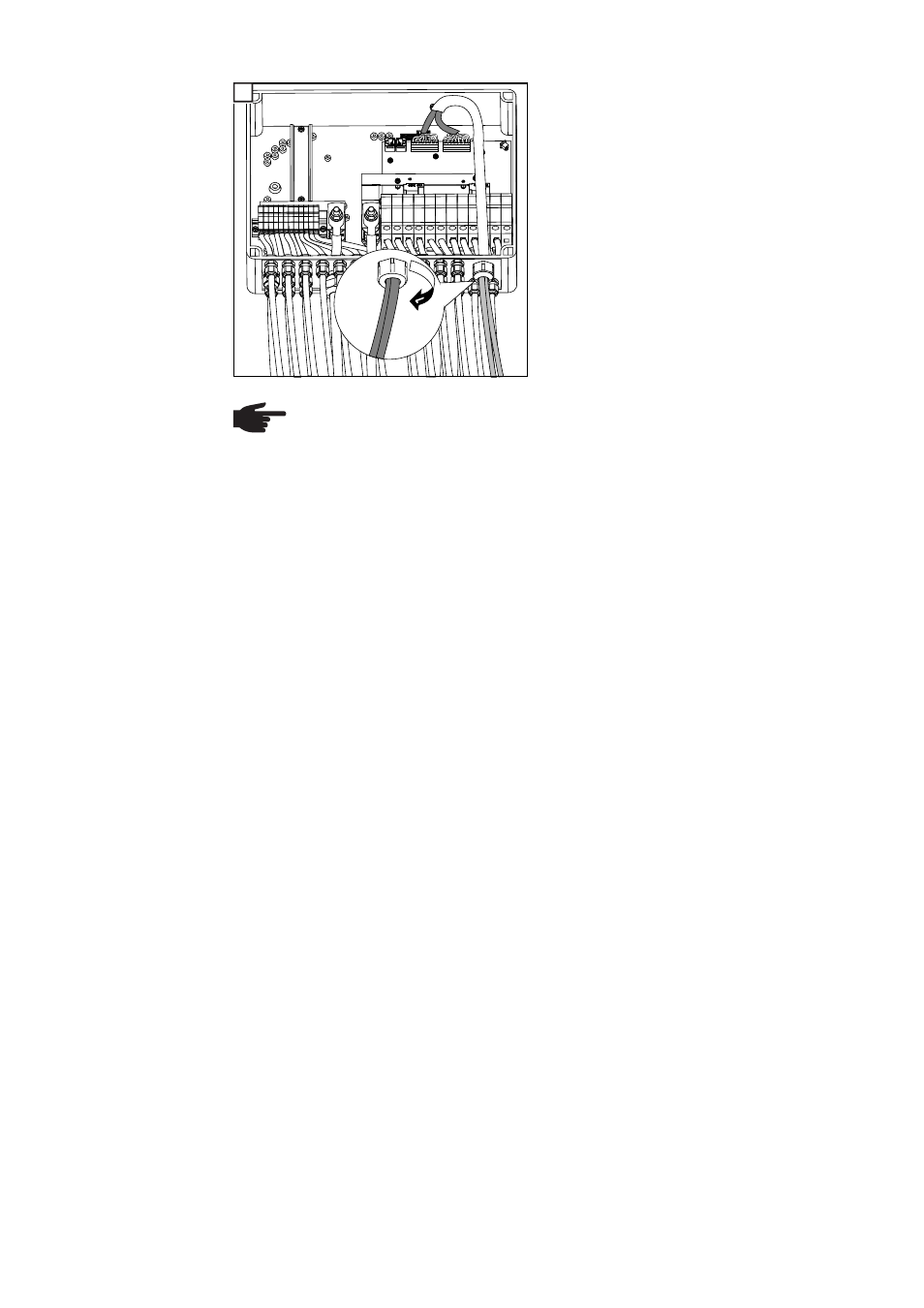

Tightening torque 5 Nm
4
NOTE! Procedure when only 1 multi-core data communication cable is being con-
nected to the Fronius String Control 100/12 (e.g., when the Fronius String Control
100/12 is the last component in a Solar Net):
-
If the data communication cable is connected to the "IN" terminals, connect
the termination plug to the "OUT" RJ 45 connection.
- If the data communication cable is connected to the "OUT" terminals, con-
nect the termination plug to the "IN" RJ 45 connection.
The termination plug is included in the scope of supply of the Fronius Data-
logger.
- Insert the plastic bolt in the free opening of the rubber insert (included in the
scope of supply for the Fronius String Control 100/12).
- Replace unused metric screw joints with threaded plugs.
