3. Control panel
2.5 Installing a plug on the power cord
Install a plug like described in chapter 2.2.
Connected load: Voltage 230 Volts, frequence 50 Hz, power 480 VA (2,1 Amps)
Use a power supply of at least 530 VA (2,3 Amps) per unit, as the fixture need more
power during the process of powering up.
Connect the fixture to a proper installed grounded system only. If any doubts
on the electrical installations occur, consult a qualified electrician.
In case of damages occuring due to a not propper installed electrical system,
warranty claims will be invalidated.
Don´t use fixtures when top cover is not fixed properly. Contact with electronical
parts can result in risk for life.
Connect fixture only after assuring that the electrical installation fits your demands.
If any doubts occur consult a qualified technican!
(Electrical shock 5000 V)

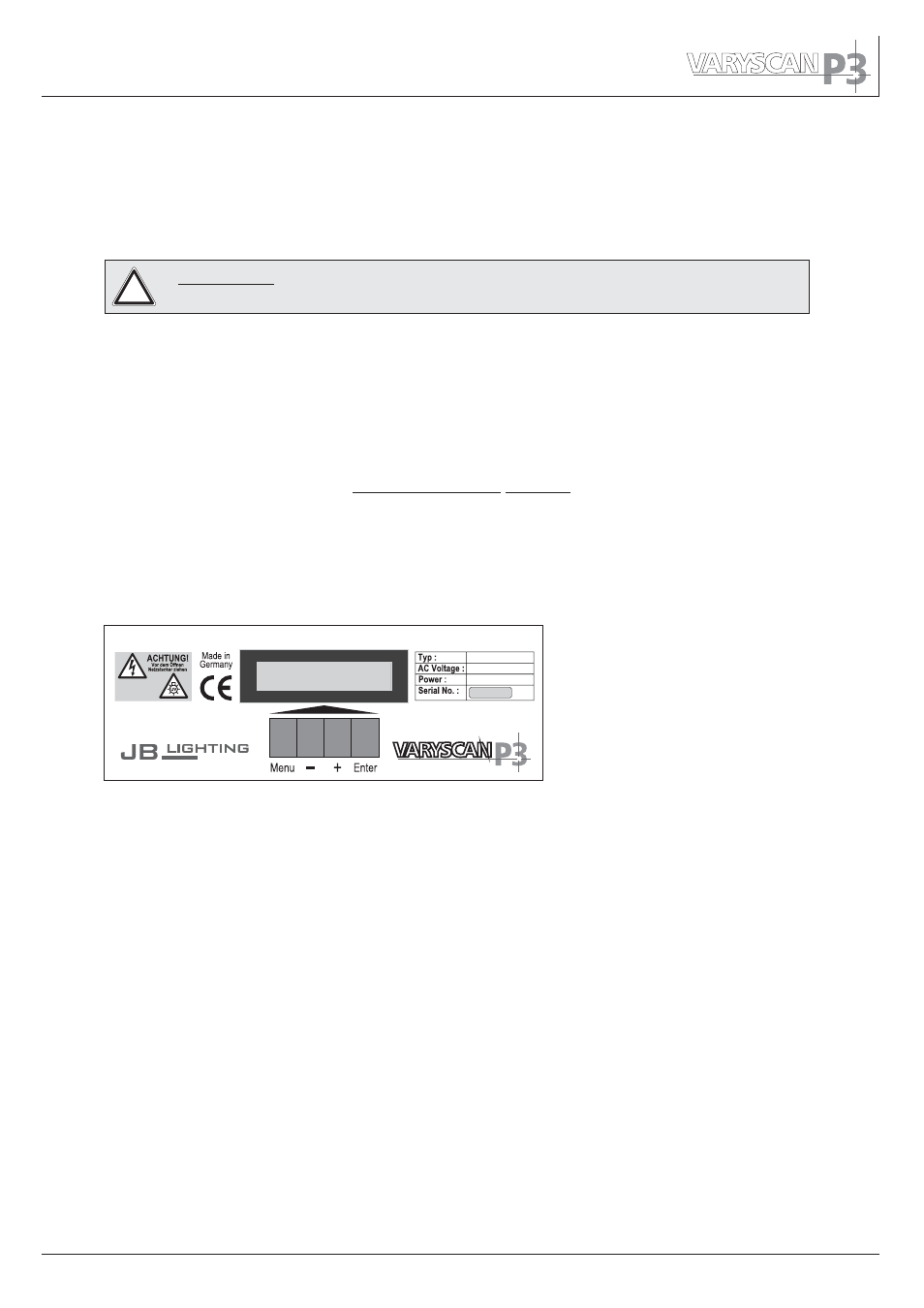

To adjust the personal setting of the P3 use keys located on the
control panel. Functions see menu on the following page.
To enter the menu press "Menu" key one time.
Use keys "-" and "+" to move within the menu.
Use key "Enter" to select the function and to recall the next menu section.
To escape press key "Menu".
During reset the display is not illuminated.
Slow flashing of the display illumination means no DMX signal is connected.
Fast flashing of the display illumination showing
means a failure
was reported and stored in the ERROR LIST (To clear - see menu navigation on
page 8).
Fast flashing of the display illumination showing an error message means an
current failure is reported, e. g.
- please contact your dealer or
our service department.
If the P3 is connected with a DMX-signal the display illumination shut off after
30 seconds.
Special functions are assigned to the display lighting:
Varyscan P3
*PAN TIMEOUT
Varyscan P3
480 VA
230V 50Hz
CAUTION!
Disconnect mains
before opening
WARNING: Note the type plate of the device when using a other
power supply voltage!
!
