1.3 Technical data
weight: 33 kg
Power connection: 230V 50Hz
Power consumtion: 3,9A
light source: OSRAM HMI 575 GS
max.
ambient temperature: 40°C
1. Indroduction
1.1 General Remarks
The Varyscan P6 575HMI is equipped with 7 colours plus white, one colour effect wheel
1 x 4 gobos (rotating, indexable and interchangable),1 x 5 gobos fixed, interchangeable,
iris diaphram, focus, one rotating, indexable and exchangeable prism, dimmer, shutter and
progressive frost filter.
The pan and tilt movement can opperate in 8bit or 16bit mode, depening on the lighting
control desk in use.
1.2 Unpacking
Open the top of the box and remove the inlays. Remove the unit from the box.
For any damage occuring during transport, report to the transport company
immediately.

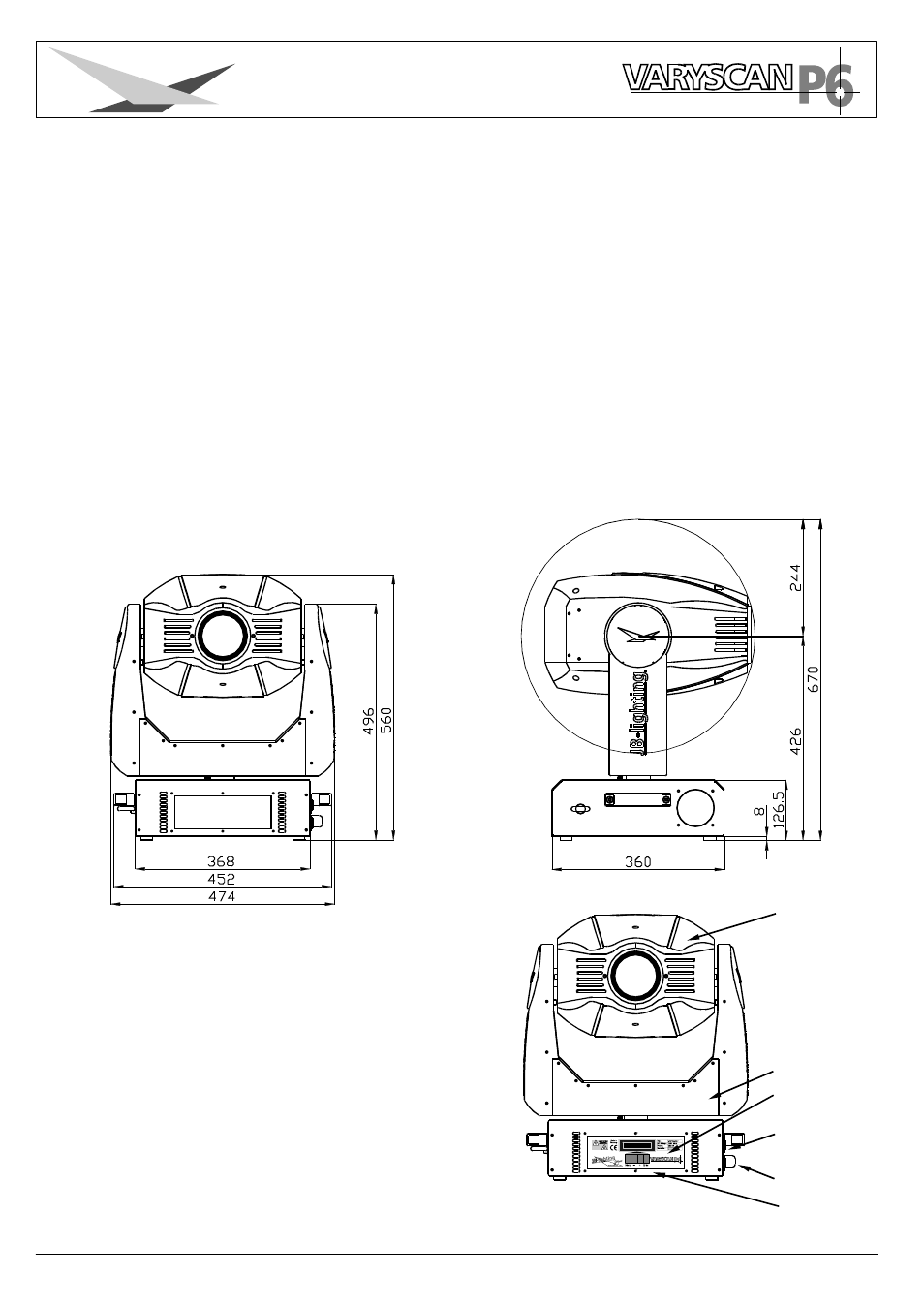

XLR connectors
base
arm
head
control panel
power supply
