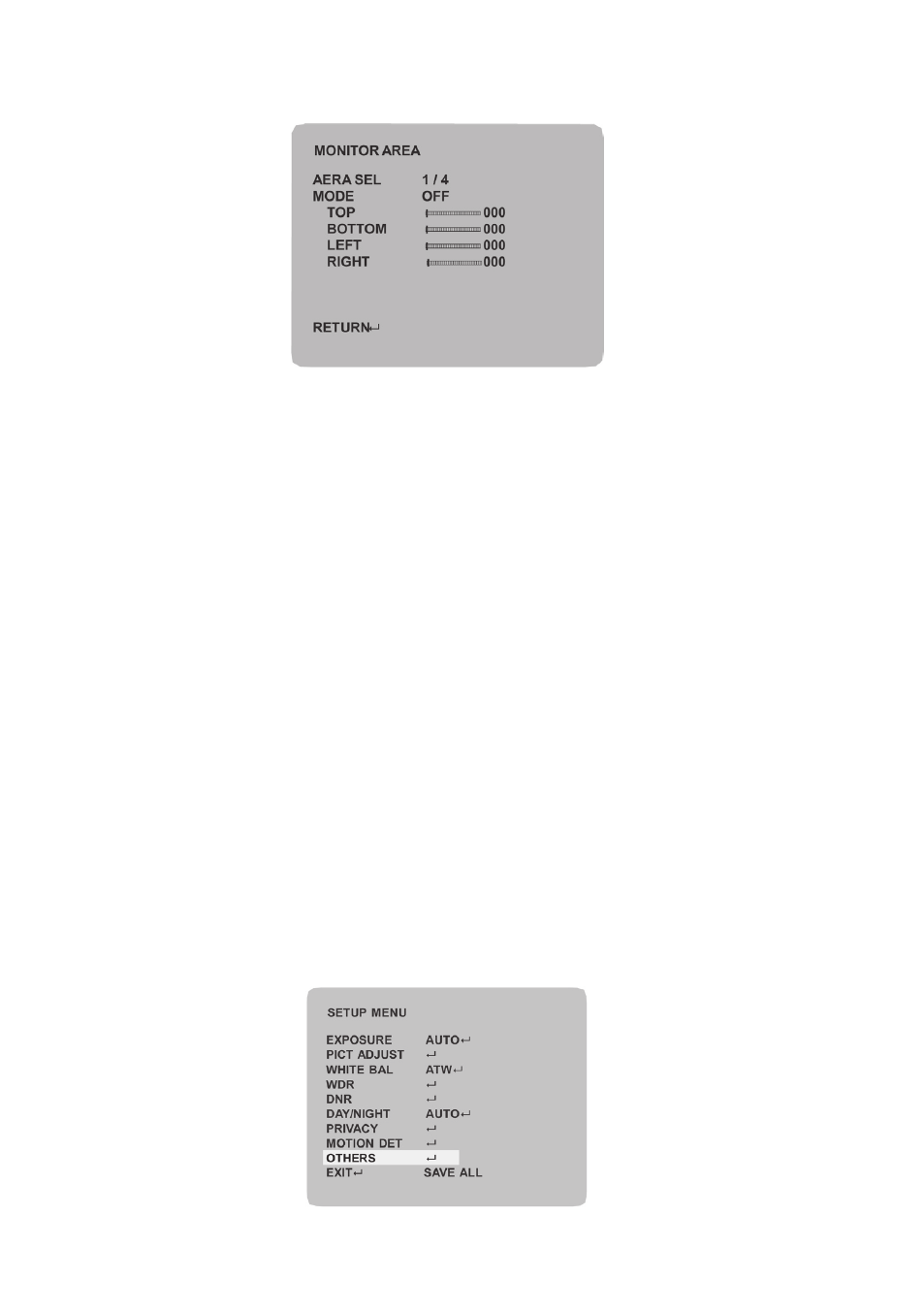

MONITOR AREA: Enters screen into setup for Rectangle Monitor Area
AREA SEL:
1/4, 2/4, 3/4, 4/4
Area number selected.
When enabled the box, colour is as follow:
1 Pink, 2 Green, 3 Magenta, 4 Yellow
Overlapping areas the lower number takes priority.
MODE:
OFF / ON. Master enable for the selected AREA number
TOP:
000-015
Moves top box area position
BOTTOM: 000-015
Move bottom box area position
LEFT:
000-023
Left side of box area position
RIGHT:
000-023
Right side of box area position
NOTE: You can’t move top higher than bottom, and left can’t be larger than right.
Numbers will automatic move when trying to move to higher position.
Monitor Area will keep the coloured box visually on the screen at all times, and flash when motion activity
occurs within the draw areas. This works in combination with the set block areas in MOTION DET AREA.
6.1.9 OTHERS
