29

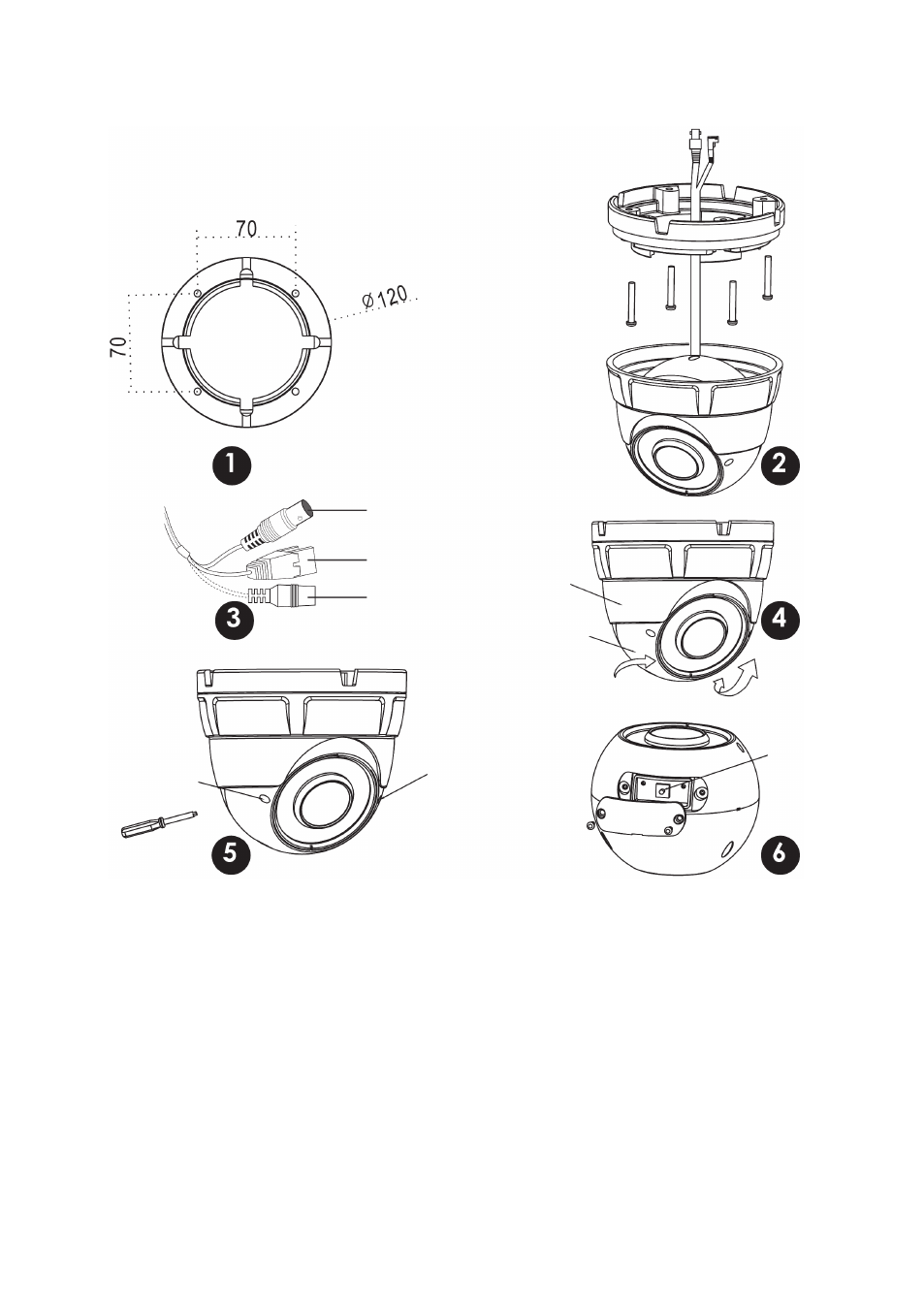

1) Remove dome dome and use as drill template. Attach using plugs (A) and screws (B)
2) Once base is firmly drilled into place, re-assemble parts.
3) Attach power and video. Connector types can be either A or B types.
4) Position camera to suite make tight using the ring, only requires hand.
5) Adjust the zoom & focus using the tool (C) provided (Vari-Focal models)
6) Adjust camera settings via the hidden OSD access point. Remove screws to access.
7) Check IR LEDs working by just covering the photocel of camera with your thumb, the IR LEDs will give a faint red
glow. (Dont look at IR LEDs for long periods of time, as you could damage your eyes.)
3. Installation
Focus
adjustment
Adjust wrench
Zoom
adjustment
OSD Adjust
Pan 360°
Three axis rotate
Video connector
Power connector
Type A
Type B
