HEIDENHAIN
Grundkurs G3

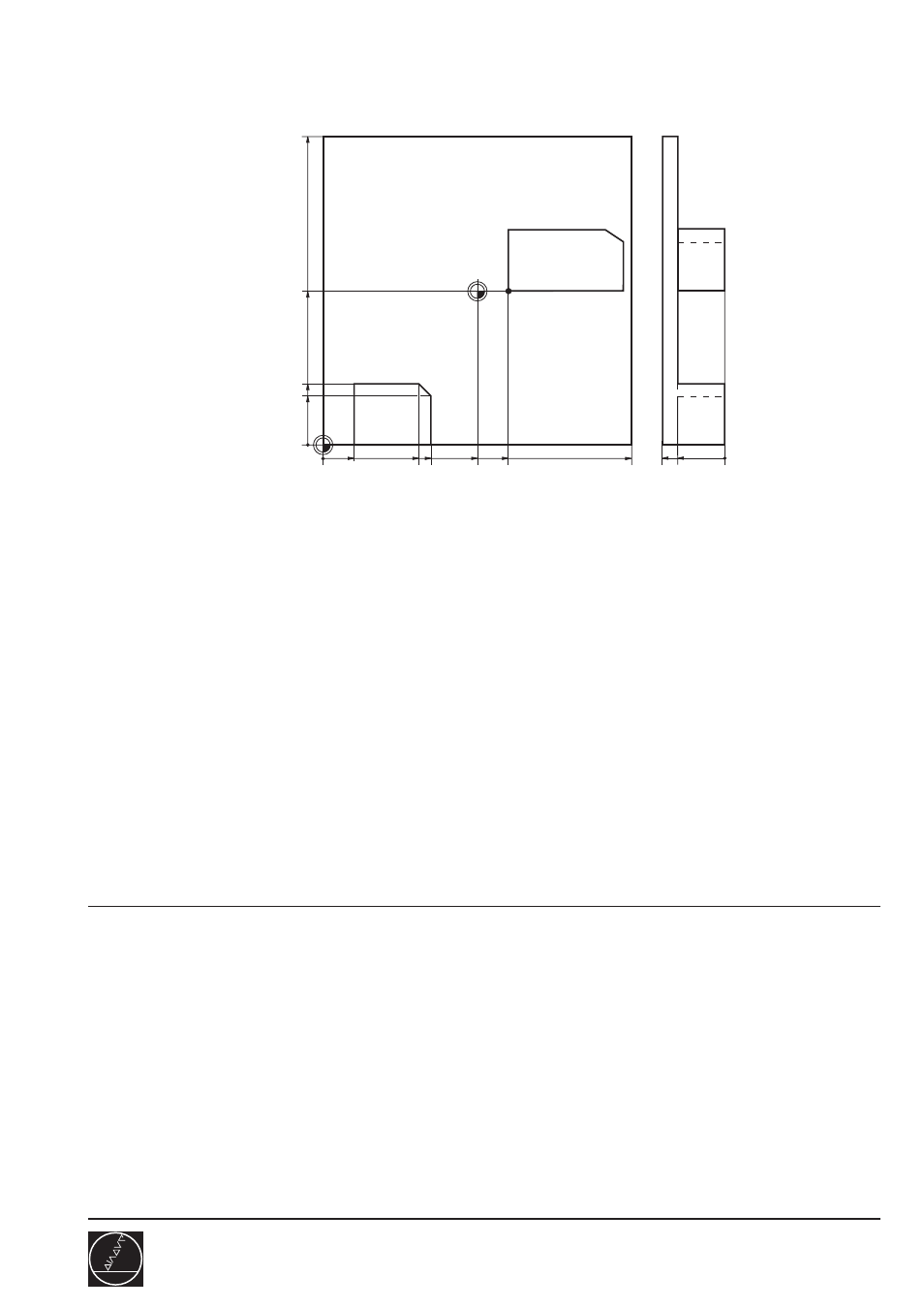

Lösung: Maßfaktor
234/2
D02
Freifahren, Ende
HAUPTPROGRAMM
UP, Kontur
0 BEGIN PGM 234 MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 8 Z S4000 ............................................. R5
4 L Z+100 R0 F MAX M3
5 CALL LBL 1 .............................................................. UP-AUFRUF TEIL
➀
6 CYCL DEF 7.0 NULLPUNKT
7 CYCL DEF 7.1 X+50
8 CYCL DEF 7.2 Y+50
9 CYCL DEF 26.0 MASSFAKTOR ACHSSP.
10 CYCL DEF 26.1 X1,5 CCX+10
11 CALL LBL 1 .............................................................. UP-AUFRUF TEIL
➁
12 CYCL DEF 7.0 NULLPUNKT
13 CYCL DEF 7.1 X+0
14 CYCL DEF 7.2 Y+0
15 CYCL DEF 26.0 MASSFAKTOR ACHSSP.
16 CYCL DEF 26.1 X1 ................................................... ZYKLUS RUECKSETZEN
17 L Z+100 R0 F MAX M2
18 LBL 1
19 L X+0 Y+0 R0 F MAX
20 L Z+2 F MAX
21 L Z-10 R0 F100 M8
22 APPR LT X+10 Y+10 LEN5 RL F200
23 L IY+20
24 L IX+21
25 L IX+4 IY-4
26 L Y+10
27 L X+10
28 DEP LT LEN5
29 L X+0 Y+0 R0
30 L Z+2 R0 F MAX
31 LBL 0
32 END PGM 234 MM
100
100
0
50
0
50
20
0
15 35
20
31
16
➀
➁
MF 1,5 in X
10 60
CC
